1
Engine displacement
650
2
Year
1991
3
Trim
SWE 650 - S910758
4
Parts Catalog
CHASSIS AND SEAT 650 AND 650 SKS (4919261926001A)
5
Parts Diagram
Parts Catalog
by
HOOD 650 AND 650 SKS (4919261926003A)
CHASSIS AND SEAT 650 AND 650 SKS (4919261926001A)
1
SEAT ASM (650) Substituted by 2200751 (Incl. 2-7 12 54)
2681487
Not Available
2
COVERSEAT(650)
2681488
9999999
Not Available
3
HOUSING TAILLIGHT
5430425
Not Available
4
BULB TAILLIGHT/TACH/SPEEDO (10)
4030015
$8,39 Unit Price incl. VAT
5
BULB BRAKELIGHT
4030019
9999999
Not Available
6
LENS TAILLIGHT
5430423
9999999
Not Available
7
SCREW
7511840
9999999
Not Available
8
NYLOK NUT
7542122
$2,09 Unit Price incl. VAT
9
WASHER(10)
7558221
$4,19 Unit Price incl. VAT
10
GROMMET GAS TANK [No Longer Available]
5431190
Not Available
11
COVER TANK (650) Substituted by 2200741
2681489
Not Available
12
BUCKLE&STRAP
2681290
9999999
Not Available
14
CAP GAS(HI.CAP.)
2511184
Not Available
15
SPRING; TANK
7042020
9999999
Not Available
16
BRACE TUNNEL REINF.
5222412
Not Available
17
CUSHION TANK H.D.
5420126
9999999
Not Available
18
TANK; GAS
5431130
9999999
Not Available
19
FUELPICKUP W/STRAINER
7052037
7052301
$26,24 Unit Price incl. VAT
20
FITTING OUTLET
7052023
$36,74 Unit Price incl. VAT
21
KIT-TANK VENT
2200190
9990000
Not Available
22
VENT FITTING;TANK
5430669
9999999
Not Available
23
PAD-GAS TANK
5810063
9999999
Not Available
24
RIVET
7621457
$2,09 Unit Price incl. VAT
25
PLUG HOLE
7080398
$10,49 Unit Price incl. VAT
26
BLIND RIVET
7621403
$2,09 Unit Price incl. VAT
27
FOOTREST LH (650) (650 Only)
2200303
Not Available
27
KIT FOOTREST RH(BLK)
2200349
Not Available
28
RIVET
7621452
9999999
Not Available
29
POP RIVET
7621330
$2,09 Unit Price incl. VAT
30
CLIP WIRING
4020035
9999999
Not Available
31
HINGE
5210728
9999999
Not Available
32
WASHER 13/64X1/2X18GA FL-Y (10
7558212
$1,56 Unit Price incl. VAT
33
RIVET
7621429
$2,09 Unit Price incl. VAT
34
CLIP; BELT
5220817
5222769
$15,74 Unit Price incl. VAT
35
GUARD CLUTCH
5230118
5240965
Not Available
36
PIN-CLUTCH COVER
7080216
7080698
$17,84 Unit Price incl. VAT
37
TUNNEL ASM. Substituted by 1011809 (650 Only)
1011790
Not Available
37
TUNNEL (650SKS) BLK. Substituted by 1011807 (650 SKS Only w/11011694)
101169521
Not Available
38
DECAL CLUTCH POLARIS [No Longer Available]
7072558
Not Available
40
NUT SPEED
7670021
$10,49 Unit Price incl. VAT
41
SNAP-MALE
7080227
9999999
Not Available
42
DECAL WARNING [No Longer Available] (600 SE)
7072153
Not Available
43
BUMPER; REAR
5224334
9999999
Not Available
43
BUMPER; (SKS)
5224349
9999999
Not Available
44
DECAL TRACK SILVER(650) [No Longer Available] (650 Only)
7072637
Not Available
45
PANEL TUNNEL BACK Substituted by 5220478-067
5220478
Not Available
46
PANEL CLOSE-OFF REAR Substituted by 1011694-067 (Trail SKS Only)
1011694
Not Available
47
FLAP SNOW(RED&BLACK)
5410577
5410394-1038
$194,24 Unit Price incl. VAT
48
RIVET
7621418
$2,09 Unit Price incl. VAT
49
WEARPLATE TUNNEL (400 & 650)
5222061
Not Available
50
RIVET SEMI-TUBE (10)
7661812
9999999
Not Available
51
DECAL SKS RED [No Longer Available] (650 SKS Only)
7072818
Not Available
52
REFLECTOR RED
2670070
$15,95 Unit Price incl. VAT
53
BOLT
7512103
$6,29 Unit Price incl. VAT
55
RIVET(10)
7621222
9999999
Not Available
56
PLATE;TUNNEL;RH
5220635
9999999
Not Available
56
PLATE;TUNNEL;LH
5220634
9999999
Not Available
57
FOAM FILLER
5810201
Not Available
58
HARNESS-TAILLIGHT
2460226
9999999
Not Available
59
CARRIAGE BOLT
7512193
$4,19 Unit Price incl. VAT
60
BRACKET; HINGE
5220406
5241437
Not Available
61
SUPT. MUFFLER [No Longer Available]
1011582
Not Available
62
BRACKET
5221932
9999999
Not Available
63
BULKHEAD (600/650) (600)
1011614
Not Available
64
FLAT WASHER
7558301
$2,09 Unit Price incl. VAT
65
CAP BUMPER
5430930
9999999
Not Available
66
SCREW
7511863
9999999
Not Available
67
BOLT
7512240
9999999
Not Available
68
DECAL 36## R.BUMP [No Longer Available] (650 Only)
7072582
Not Available
69
NYLOK NUT
7542451
$2,09 Unit Price incl. VAT
70
BOLT NYLOC BLACK
7515493
9999999
Not Available
71
PAD RH R.SUSP.MTG. Substituted by 1011750-067
1011750
Not Available
71
PAD LH R.SUSP.MTG. Substituted by 1011749-067
1011749
Not Available
72
BRKT.
5220542
5220542-067
Not Available
73
BRKT; TOOL BOX
5220973
9999999
Not Available
74
LINE FUEL (FT.)
8450003
8450003-1525
$136,49 Unit Price incl. VAT
75
DECAL LH TUNNEL(91-650) [No Longer Available]
7072997
Not Available
75
DECAL RH TUNNEL(91-650) [No Longer Available]
7072998
Not Available
76
SPRING TANK
7042033
9999999
Not Available
77
STRIP-WEAR
5510130
9999999
Not Available
77
BRKT;R.FUELTANK MTG.
5222375
9999999
Not Available

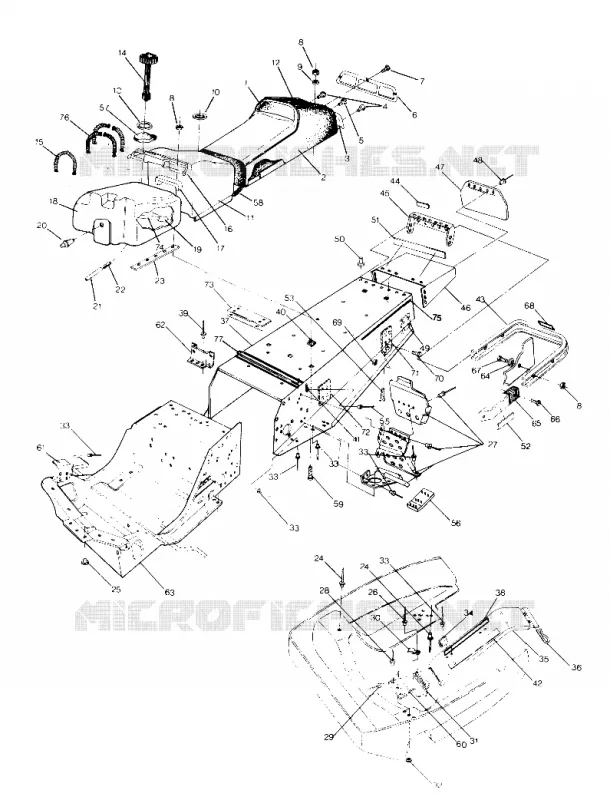

Find the detailed CHASSIS AND SEAT 650 AND 650 SKS (4919261926001A) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
