CHASSIS, CLUTCH GUARD AND FOOTRESTS for POLARIS 550 INDY from 2017

CHASSIS, CLUTCH GUARD AND FOOTRESTS

1

RIVET

7661637

$2,09 Unit Price incl. VAT

2

ASM-FOOTREST RH

1016356

1024378

$52,49 Unit Price incl. VAT

3

ASM-FOOTREST TUBE RH

1018311

$167,99 Unit Price incl. VAT

4

RIVET 4.8 MM

7661973

$2,09 Unit Price incl. VAT

5

FOOTREST-RH LOWER

5262305

$120,74 Unit Price incl. VAT

6

BRKT-FOOTREST TUBE;RH

5255426

$26,24 Unit Price incl. VAT

7

CL8.8 OLV-D

7518906

$6,29 Unit Price incl. VAT

8

ASM-FOOTREST LH

1018137

$120,74 Unit Price incl. VAT

9

BRKT-FOOTREST TUBE;LH

5255210

$20,99 Unit Price incl. VAT

10

ASM-FOOTREST TUBE LH

1018310

$157,49 Unit Price incl. VAT

11

FOOTREST-LH LOWER

5262292

$125,99 Unit Price incl. VAT

12

NUT-M6X1.0 FLG-NYLOC-OLIVE D

7547339

$2,09 Unit Price incl. VAT

13

BELT GUARD ASSMEBLY

1018231

$141,74 Unit Price incl. VAT

14

DECAL-CLUTCH WARN/BELT RMVL

7176327

Not Available

15

BOLT-M6X1.0X20 HXFLG OLIVE D

7518613

$7,34 Unit Price incl. VAT

16

U CLIP; 6.0 MM X 1.0 MM

7547366

$9,44 Unit Price incl. VAT

17

SUPPORT-FOOTREST RH

5255169

$12,59 Unit Price incl. VAT

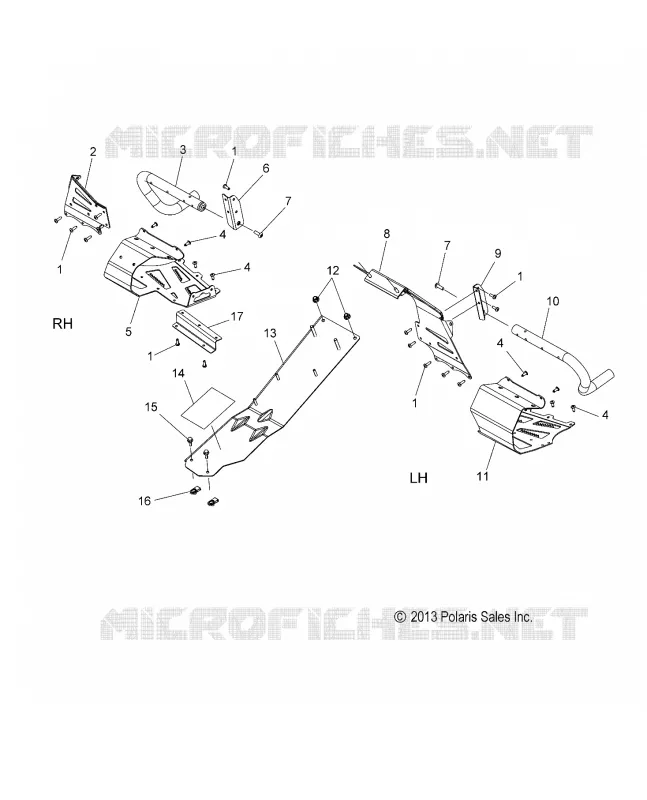

Find the detailed CHASSIS, CLUTCH GUARD AND FOOTRESTS POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
