CHASSIS, CAB FRAME for POLARIS R141D9JDA/2D9JDA RANGER DIESEL HST/DELUXE - R141/2D9JDA from 2014

CHASSIS, FRONT BUMPER

DRIVE TRAIN, FRONT GEARCASE MOUNTING

CHASSIS, CAB FRAME

1

CAB FRAME WELD; REAR; MATTE BLACK

1019750458

Not Available

2

CAB FRAME WELD; FRONT; LEFT; MATTE BLACK

1018082458

Not Available

3

CAB FRAME WELD; FRONT; RIGHT; MT BLK

1018083458

Not Available

4

HIP BOLSTER WELD; MATTE BLACK

1019524458

Not Available

5

RIVET

7621460

$2,09 Unit Price incl. VAT

6

HEADREST; GLOSS BLACK;

5437938070

Not Available

7

UPPER WINDSHIELD MOUNT PLATE; MT BLK

5255166458

Not Available

8

ROPS (ROPS) GRAB HANDLE GLOSS BLK

5450844070

Not Available

9

HEX FLANGE BOLT; 8 MM X 1.25 MM X 20 MM

7518555

$4,19 Unit Price incl. VAT

10

HEX FLANGE SCREW 10 MM X 1.25 MM X 80 MM

7519363

7528444

$4,19 Unit Price incl. VAT

11

NYLOC NUT

7547333

$3,14 Unit Price incl. VAT

12

SCREW

7517367

9999999

Not Available

13

NYLOC NUT; 10 MM X 1.5 MM

7547268

$2,09 Unit Price incl. VAT

14

HEX FLANGE HEAD SCREW; 8 MM X 16 MM

7517956

$14,69 Unit Price incl. VAT

15

HEX FLANGE BOLT; 10 MM X 1.5 MM X 20 MM

7518460

$3,14 Unit Price incl. VAT

16

BOLT

7519650

$7,34 Unit Price incl. VAT

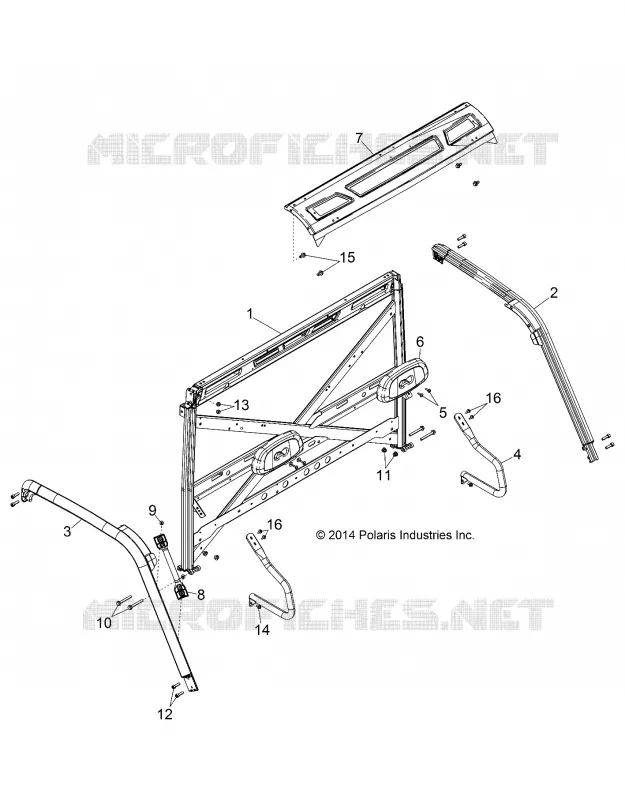

Find the detailed CHASSIS, CAB FRAME POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
