1
Engine displacement
500
2
Year
1998
3
Trim
Swedish Big Boss 500 6X6 - S98AE50E
4
Parts Catalog
CRANKSHAFT AND PISTON
5
Parts Diagram
Parts Catalog
ELECTRICAL/TAILLIGHT
by
INLET EXHAUST
CRANKSHAFT AND PISTON
1
CLIP
3085534
9999999
Not Available
2
PIN PISTON
3085533
9999999
Not Available
3
SET PISTON STANDARD
3085635
9999999
Not Available
3
SET PISTON .020/.50MM O/S
3085637
9999999
Not Available
3
SET PISTON .010/.25MM O/S
3085636
9999999
Not Available
4
SET PISTON RING STANDARD
3085379
9999999
Not Available
4
SET PISTON RING .010/.25MM O/
3085380
9999999
Not Available
4
SET PISTON RING .020/.50MM O/
3085381
9999999
Not Available
5
CRANKSHAFT#2 PTO SIDE
3085374
9999999
Not Available
6
PIN; CRANK
3085341
9999999
Not Available
7
CONNECTING ROD
3085376
9999999
Not Available
8
BEARING LARGE END
3085400
9999999
Not Available
9
BALL; STEEL
3085024
9999999
Not Available
10
CRANKSHAFT#1 MAG SIDE
3085373
9999999
Not Available
10
CRANKSHAFT ASM.
3085399
9999999
Not Available
11
GEAR BALANCER #1
3085401
9999999
Not Available
12
BALANCER SHAFT
3085404
9999999
Not Available
13
SPACER 1.0
3084896
9999999
Not Available
13
SPACER 0.8
3084895
9999999
Not Available
13
SPACER 1.2
3084897
9999999
Not Available
14
SPACER 1.0
3084893
9999999
Not Available
14
SPACER 1.2
3084894
9999999
Not Available
14
SPACER; .6
3240088
9999999
Not Available
14
SPACER 0.8
3084892
9999999
Not Available
15
SPROCKET 1
3084882
9999999
Not Available
16
SLIT NUT
3085528
9999999
Not Available
17
WASHER
3083904
9999999
Not Available
18
LOCK NUT
3083905
9999999
Not Available
19
PIN DOWEL
3085346
9999999
Not Available
20
KEY
3081447
9999999
Not Available
21
KEY; WOODRUFF
3080130
3081543
$26,24 Unit Price incl. VAT

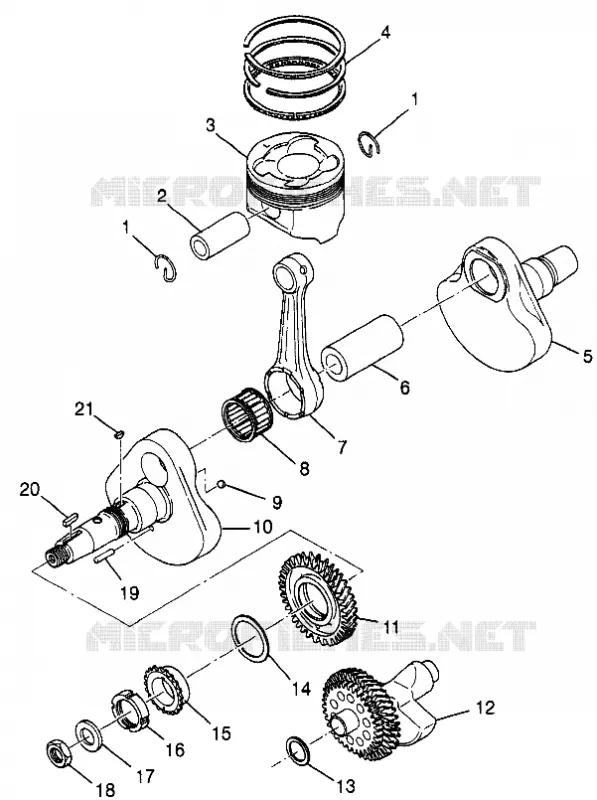

Find the detailed CRANKSHAFT AND PISTON POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
