DRIVE TRAIN, JACKSHAFT AND DRIVE SHAFT for POLARIS 550 INDY 144 / ES from 2016

DRIVE TRAIN, JACKSHAFT AND DRIVE SHAFT

1

SCR-TXTH-M8X1.25X20 8.8 ZODP30

7519260

$11,54 Unit Price incl. VAT

2

FLANGETTE-3BOLT 0MM OFFSET OUT

5252738

$18,89 Unit Price incl. VAT

3

ASM-JCKSHFT 15/21 SPL W/BRG SD

1332854

$451,49 Unit Price incl. VAT

4

BEARING; 1 MM X 52 MM X 15 MM

3514617

$54,59 Unit Price incl. VAT

5

FLANGETTE-3BOLT 0MM OFFSET IN

5252739

$18,89 Unit Price incl. VAT

6

ASM-NUT PLATE;JACKSHAFT

1017848

$18,89 Unit Price incl. VAT

7

O-RING 20.30 MM X 2.62 MM

5413563

$3,14 Unit Price incl. VAT

8

DRIVESHAFT ASSEMBLY; 9 TOOTH; METRIC

1590498

$981,74 Unit Price incl. VAT

9

FLANGETTE W/ SCREW ASSEMBLY

1016551

$68,24 Unit Price incl. VAT

10

BEARING; 1 MM X 52 MM X 15 MM

3514617

$54,59 Unit Price incl. VAT

11

PICKUP WHEEL; SPEEDO; 9 TOOTH

5136619

$62,99 Unit Price incl. VAT

12

SCR-HXFLGHD M8X30 0600086

7518391

$7,34 Unit Price incl. VAT

13

JACKSHAFT GASKET; BLACK

5811095

9999999

Not Available

14

SCR-RHCAR-M8X1.25X25 8.8 ZOD

7519324

$6,29 Unit Price incl. VAT

15

PALNUT

7547030

$9,44 Unit Price incl. VAT

16

DRIVE PICKUP HOUSING

5246960

$47,24 Unit Price incl. VAT

17

NYLOC OLIVE NUT; 8 MM X 1.25 MM

7547332

$7,34 Unit Price incl. VAT

18

CABLE CLAMP

7080367

$4,19 Unit Price incl. VAT

19

SLEEVE SEAL

5020588

$40,94 Unit Price incl. VAT

20

O-RING

5410613

$3,66 Unit Price incl. VAT

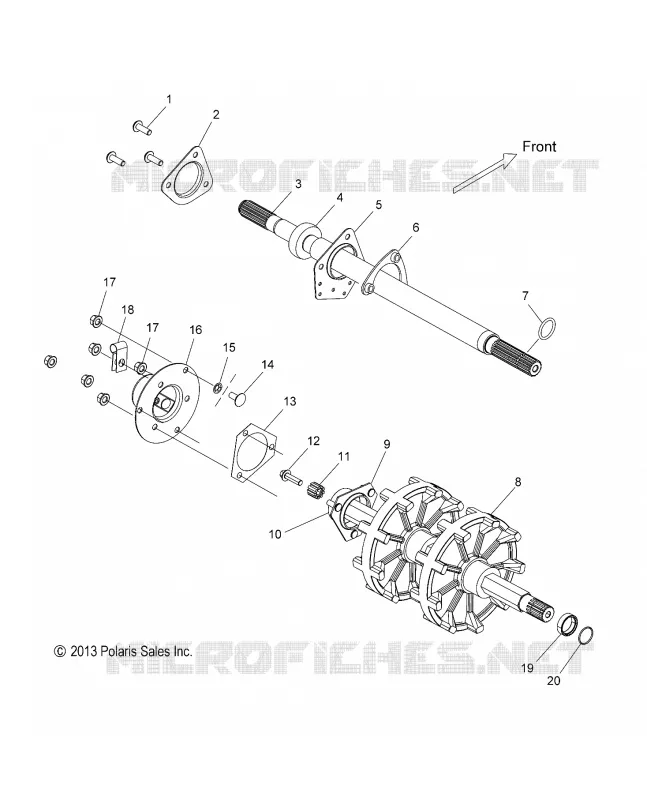

Find the detailed DRIVE TRAIN, JACKSHAFT AND DRIVE SHAFT POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
