DRIVE TRAIN, CLUTCH, PRIMARY
5
Parts Diagram
Parts Catalog
CHASSIS, FRONT
by
FUEL SYSTEM, RAIL, LINES AND THROTTLE BODY
DRIVE TRAIN, CLUTCH, PRIMARY
1
2
3
4
5
6
6
7
8
9
10
11
12
13
14
15
16
17
17
17
17
18
19
20
21
1
DRIVE CLUTCH ASSEMBLY
1322796
$1 086,74 Unit Price incl. VAT
2
SCR-1/4-20X2 1/4 HX WH GR5-Y
7518349
$2,09 Unit Price incl. VAT
3
COVER BEARING
3514347
$73,49 Unit Price incl. VAT
4
RETAINING RING COVER
7710417
$2,09 Unit Price incl. VAT
5
SPRING-DRIVE CLUTCH HP 140/330
7043342
7043829
$115,49 Unit Price incl. VAT
6
GUIDE BUTTON
5430445
$11,54 Unit Price incl. VAT
7
WASHER(10)
5430945
5438247
$3,14 Unit Price incl. VAT
8
ROLLER AND BUSHING ASSEMBLY
1321622
$62,99 Unit Price incl. VAT
9
ROLLER PIN; 1 IN
5133079
$11,54 Unit Price incl. VAT
10
DRIVE CLUTCH KIT
2200387
$47,24 Unit Price incl. VAT
11
BUSHING WEIGHT ASSEMBLY(3)
1321586
$73,49 Unit Price incl. VAT
12
FLEXLOC NUT(10)
7541906
$6,29 Unit Price incl. VAT
13
HARDENED WEIGHT PIN
7515105
$26,24 Unit Price incl. VAT
14
SLEEVE BEARING
3514641
$34,64 Unit Price incl. VAT
15
INSERT MOVEABLE
5010188
$13,64 Unit Price incl. VAT
16
SPACER .130 PM
5134018
5138705
$26,24 Unit Price incl. VAT
17
SPACER .020
5210752
$3,14 Unit Price incl. VAT
17
SPACER .025
5242981
$7,34 Unit Price incl. VAT
17
SPACER .050
5210754
$6,29 Unit Price incl. VAT
17
SPACER .032
5210753
$4,19 Unit Price incl. VAT
18
JAM NUT
5020425
$41,99 Unit Price incl. VAT
19
BOLT M14 THREAD X1.5 PITCHX215MM LONG
7518412
$52,49 Unit Price incl. VAT
20
WASHER-.560X1.10X.110 Y
7556336
$26,24 Unit Price incl. VAT
21
CLUTCH WASHER; RETAINER
5132441
$41,99 Unit Price incl. VAT

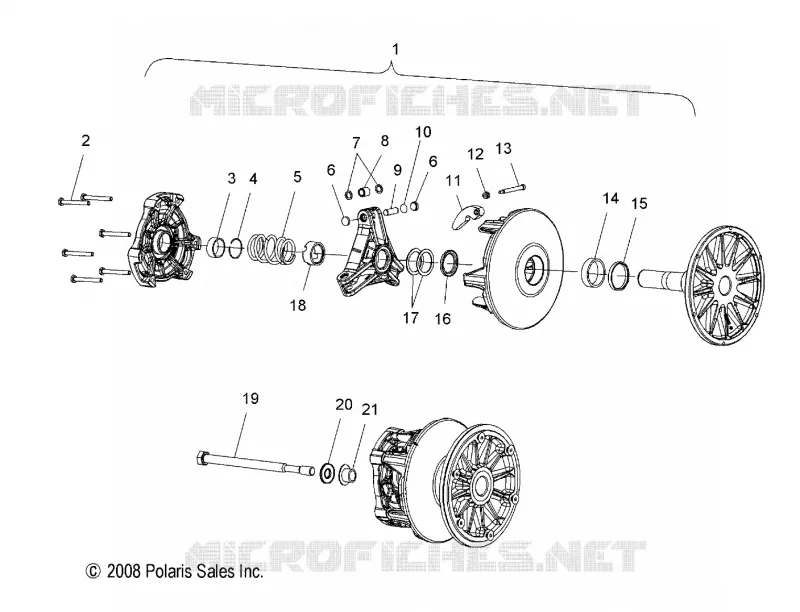

Find the detailed DRIVE TRAIN, CLUTCH, PRIMARY POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
