SUSPENSION, RAIL BEAM ASM, LH/RH for POLARIS 850 PATRIOT RMK KHAOS SLASH 146 from 2024

REAR SUSPENSION

SUSPENSION, FRONT TORQUE ARM

SUSPENSION, RAIL BEAM ASM, LH/RH

1

NUT-M5X0.8 8.8 HX/FL NYLOC

7547427

$6,29 Unit Price incl. VAT

2

WASHER-M5.3X14X1.2 ZOD

7556470

$4,19 Unit Price incl. VAT

3

SCR-M5X0.8X40 8.8 TR/TX ZOD

7518951

$6,29 Unit Price incl. VAT

4

HOLLOW TALL BUMPER

5415327

$27,29 Unit Price incl. VAT

5

LINER-LOW PROFILE BUMPER

5451787

$12,59 Unit Price incl. VAT

6

ASM-RAIL 146 SVC LH BLK

1545067067

Not Available

6

ASM-RAIL 146 SVC LH ORG

1545067647

Not Available

6

ASM-RAIL 146 SVC LH NAT

1545067309

Not Available

6

ASM-RAIL 146 SVC RH ORG

1545068647

Not Available

6

ASM-RAIL 146 SVC RH NAT

1545068309

Not Available

6

ASM-RAIL 146 SVC RH BLK

1545068067

Not Available

7

K-SCRATCHER RMK

2890644

$146,99 Unit Price incl. VAT

8

BUMPER-JOUNCE REAR;COIL-OVER

5522056

$26,24 Unit Price incl. VAT

9

BUMPER LINER

5432946

$19,94 Unit Price incl. VAT

10

HEX SCREW; 10 MM X 1.5 MM X 100 MM

7520083

$23,09 Unit Price incl. VAT

11

HEX NUT; 10 MM X 1.5 MM

7547707

$7,34 Unit Price incl. VAT

12

BLOCK-IDLER BOLT ADJ METRIC

5139435

$26,24 Unit Price incl. VAT

13

RIVET

7621501

$4,19 Unit Price incl. VAT

14

HYFAX-146 LWT BLK

5526511070

Not Available

15

SCR-M6X1.0X20 TR/TX/TAP ZOD

7518976

$6,29 Unit Price incl. VAT

16

HEX FLANGE SCREW; 8 MM X 1.25 MM X 20 MM

7519133

$3,14 Unit Price incl. VAT

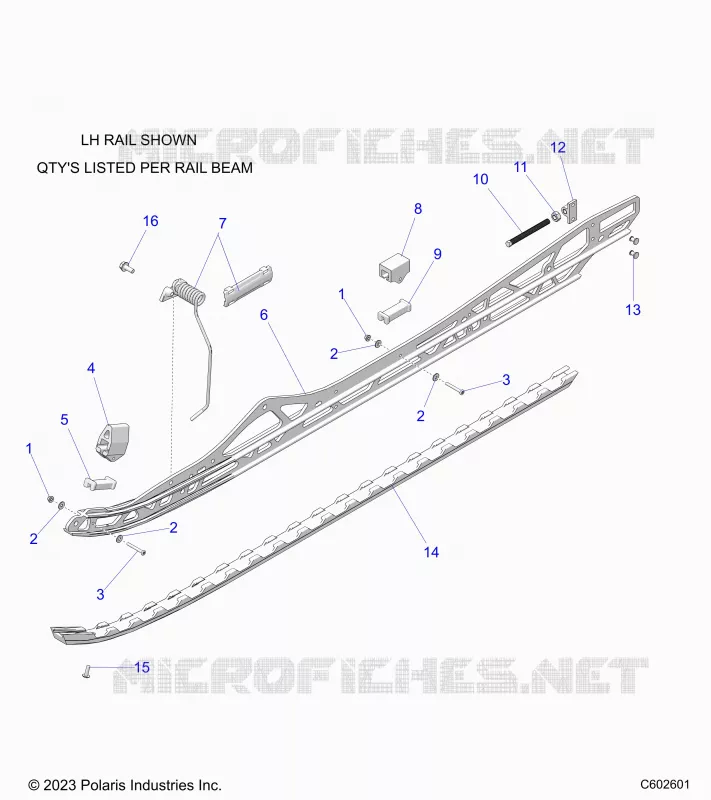

Find the detailed SUSPENSION, RAIL BEAM ASM, LH/RH POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
