1
Engine displacement
550
2
Year
2016
3
Trim
550 INDY VOYAGEUR 144
4
Parts Catalog
STEERING, H-BAR, STEERING POST, TIE ROD
5
Parts Diagram
Parts Catalog
SWITCHES and COMPONENTS
by
REAR SUSPENSION TORQUE ARM
STEERING, H-BAR, STEERING POST, TIE ROD
1
2
3
4
5
6
7
8
19
10
11
11
12
13
14
15
16
17
17
17
18
19
20
21
21
22
23
23
24
25
25
26
1
HANDLEBAR COVER
5438523
$47,24 Unit Price incl. VAT
2
SOCKET HEAD SCREW; 6 MM X 45 MM
7518931
$4,19 Unit Price incl. VAT
3
HANDLEBAR MOUNT BLOCK
5631729
$62,99 Unit Price incl. VAT
4
HANDLEBAR; MEDIUM GLOSS BLACK
5255234067
Not Available
5
PLUG
5431096
$3,66 Unit Price incl. VAT
6
HANDLEBAR GRIP; STD; GLOSS BLACK
5452127070
Not Available
7
HANDLEBAR BLOCK
5631892
$62,99 Unit Price incl. VAT
8
NYLOCK FLANGE NUT; 6 MM
7547274
7548027
$3,14 Unit Price incl. VAT
9
NYLOC OLIVE NUT; 8 MM X 1.25 MM
7547332
$7,34 Unit Price incl. VAT
10
STRAP-STRG
5254513
9999999
Not Available
11
STEERING POST BUSHING
5438492
$11,54 Unit Price incl. VAT
12
BRUSHING SPACER
5137796
$7,34 Unit Price incl. VAT
13
STEERING POST ASSEMBLY; 550
1823895
$314,99 Unit Price incl. VAT
14
MOUNT-STEERING ;UPPER
5255066
$62,99 Unit Price incl. VAT
15
HEX FLANGE SCREW; 8 MM X 1.25 MM X 60 MM
7519298
$7,34 Unit Price incl. VAT
16
SCR-HXFL-M8X1.25X50 DP ZODP30
7519245
$7,34 Unit Price incl. VAT
17
SCR-TXTH-M8X1.25X20 8.8 ZODP30
7519260
$11,54 Unit Price incl. VAT
18
FLANGETTE
5222393
5270869
$36,74 Unit Price incl. VAT
19
NYLOC OLIVE NUT; 8 MM X 1.25 MM
7547332
$7,34 Unit Price incl. VAT
20
STEERING MOUNT ASSEMBLY; LOWER
1018400
$83,99 Unit Price incl. VAT
21
ROD END; LEFT; 10 MM X 23 MM; 75 DEG
7061165
$104,99 Unit Price incl. VAT
21
NUT-M10X1.5 LH ZOD
7547431
$6,29 Unit Price incl. VAT
22
TIE ROD; 416 MM
5336738
$83,99 Unit Price incl. VAT
23
ROD END; RIGHT; 10 MM X 26.5 MM; 70 DEG
7061166
$104,99 Unit Price incl. VAT
23
NUT-M10X1.5 ZOD
7547430
9999999
Not Available
24
FLAT WASHER
7555806
$1,56 Unit Price incl. VAT
25
NUT-M10X1.5 HFN NYLOC ZOD
7547423
$7,34 Unit Price incl. VAT
26
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available

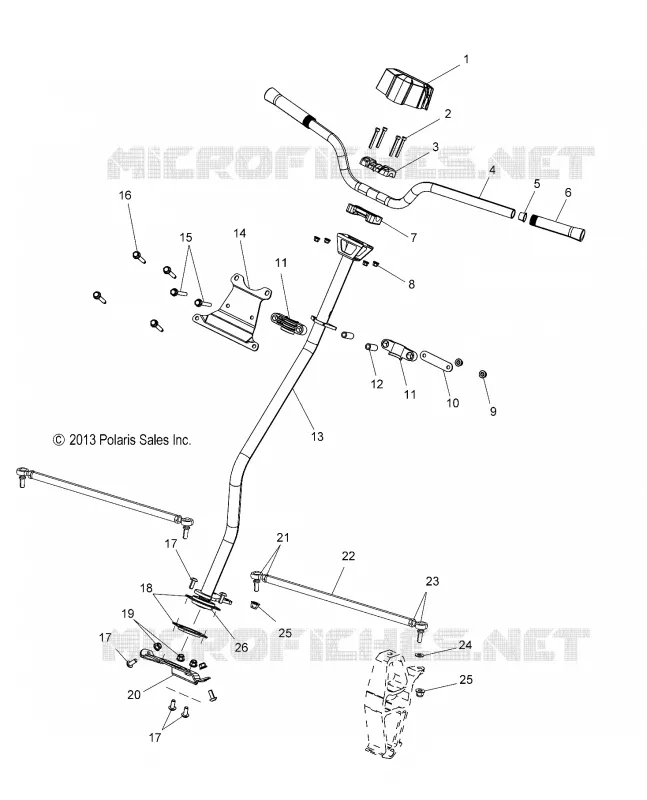

Find the detailed STEERING, H-BAR, STEERING POST, TIE ROD POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
