Engine displacement
570
2
Year
2017
3
Trim
ACE 570 SP
4
Parts Catalog
SUSPENSION, REAR SHOCK MOUNTING
5
Parts Diagram
Parts Catalog
ENGINE, VALVE COVER
by
SUSPENSION, REAR STABILIZER BAR
SUSPENSION, REAR SHOCK MOUNTING
1
1
2
3
4
5
6
7
1
2
3
4
5
6
7
1
NYLOC NUT
7547333
$3,14 Unit Price incl. VAT
2
RETAINER SPRING; STEEL
5251753
$19,94 Unit Price incl. VAT
3
M10 X 1.25 X 60 SCREW
7518563
$5,76 Unit Price incl. VAT
4
SPRING-REAR WHT
7044538133
Not Available
5
CAM ADJUSTING SPRING STEEL
5253768
$68,24 Unit Price incl. VAT
6
SHOCK; REAR
7043759
$188,99 Unit Price incl. VAT
7
BOLT-M10X1.25X100 HXFLG OLV D
7518610
$41,99 Unit Price incl. VAT

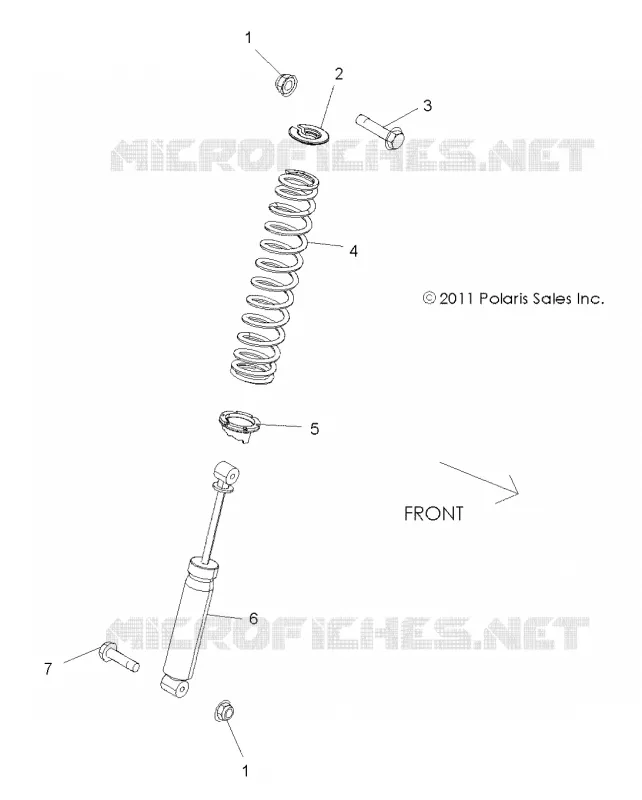

Find the detailed SUSPENSION, REAR SHOCK MOUNTING POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
