FRONT TRACK SHOCK for POLARIS 800 DRAGON SP from 2009

FRONT TRACK SHOCK

-

SHOCK-F/T

7043411

9999999

Not Available

1

SHAFT 5/8 (600172)

1800316

9999999

Not Available

2

BLEED SCREW

1800211

9999999

Not Available

2

O-RING BLEED SCREW

1800210

$3,14 Unit Price incl. VAT

2

PISTON-RES. W/BLEED SCREW

1800214

9999999

Not Available

3

RESERVOIR SNAP RING (10)

1800019

9999999

Not Available

4

NEEDLE 2.25 (100114)

1800300

9999999

Not Available

5

O-RING(10)

1800094

9999999

Not Available

6

HOSE RES. 10 (800224)

1800338

9999999

Not Available

7

O-RING BODY

1800027

$3,66 Unit Price incl. VAT

8

O-RING RESERVOIR

1800028

$3,14 Unit Price incl. VAT

9

WEAR BAND

1800029

9999999

Not Available

10

CRIMP NUT 3/8 IN

1800031

$7,34 Unit Price incl. VAT

11

SHIELD-SPRING 3.00 W/CAP

5437525

5417912

$52,49 Unit Price incl. VAT

12

BUSHING/URETHANE

1800033

$34,64 Unit Price incl. VAT

13

WIPER D/TYPE

1800322

9999999

Not Available

14

SHAFT SEAL U CUP

1800323

9999999

Not Available

15

RETAINER-SPRING CONE;CAST

5632166

9999999

Not Available

16

3/8 AN WASHER (10)

1800050

$7,34 Unit Price incl. VAT

17

SHAFT BUSHING

1800038

9999999

Not Available

18

SLEEVE 1.685 IN

1800039

$27,29 Unit Price incl. VAT

19

SPRING RETAINER

1800046

$68,24 Unit Price incl. VAT

20

WEAR SLEEVE

1800047

$73,49 Unit Price incl. VAT

21

FITTING 90

1800205

9999999

Not Available

22

LOOP-BODY

1800099

9999999

Not Available

23

EYELET-SHAFT 5/8 (400161)

1800234

9999999

Not Available

24

BODY FT THRD (800183)

1800339

9999999

Not Available

25

END CAP

1800106

9999999

Not Available

26

VALVE-NEEDLE

1800107

9999999

Not Available

27

BODY RESERVOIR (800601)

1800333

9999999

Not Available

28

KNOB

1800218

$104,99 Unit Price incl. VAT

29

HOUSING-ADJ.

1800220

9999999

Not Available

30

SPRING-D-TENT(10)

1800128

$20,99 Unit Price incl. VAT

30

BALL-D-TENT(10)

1800127

$12,59 Unit Price incl. VAT

31

SCREW ALLEN (100338)

1800299

9999999

Not Available

32

ASM-SHAFT SEAL HOUSING

1800131

9999999

Not Available

33

BOLT; NEEDLE (600124)

1800301

9999999

Not Available

34

SCR-M10X1.5X65 8.8 HX/FL ZOD

7518960

$6,29 Unit Price incl. VAT

35

SHAFT-SHOCK

5335719

$26,24 Unit Price incl. VAT

36

NUT-M10X1.5 HFN NYLOC ZOD

7547423

$7,34 Unit Price incl. VAT

37

SPRING-COMP 130/270 8.22 BLK

7043147067

Not Available

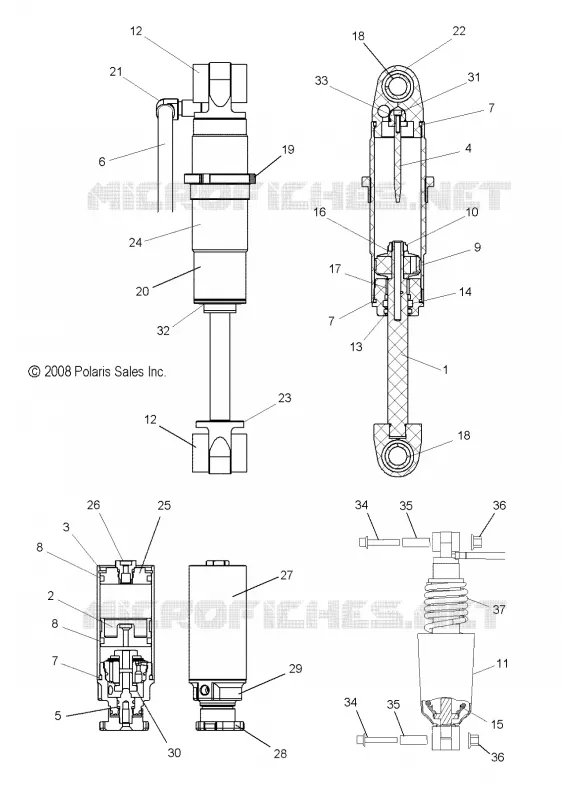

Find the detailed FRONT TRACK SHOCK POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
