IGNITION SYSTEM (Built 6/04/12 and After) for POLARIS SPORTSMAN FOREST 800 6X6 - A12CF76FF from 2012

IGNITION SYSTEM (Built 6/04/12 and After)

1

ASM-COVER ENGINE MAG

1204712

9999999

Not Available

2

COVER STATOR ASSEMBLY; EFI

1204144

9999999

Not Available

3

SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]

*******

Not Available

4

STATOR

4014034

$913,49 Unit Price incl. VAT

5

SCR-M6X1.0X35 SOC/CP-Y/D

7517848

$10,49 Unit Price incl. VAT

6

WASHER

7555907

$10,49 Unit Price incl. VAT

7

STATOR COVER SEAL

5413972

$7,34 Unit Price incl. VAT

8

OIL SEAL; 15 X 35 X 8

5412455

$41,99 Unit Price incl. VAT

9

SPARKPLUG WIRE; 49.5 CM

4012438

$115,49 Unit Price incl. VAT

10

BUSHING 12.08 X 17 X 10

3514553

9999999

Not Available

11

SCR-M6X1.0X45 HX-FL-Y/D

7517950

$10,49 Unit Price incl. VAT

12

NUT-M14X1.50 HEX-Y

7547213

$9,44 Unit Price incl. VAT

13

FLYWHEEL

4013968

$565,94 Unit Price incl. VAT

14

SCREW

7517598

$19,94 Unit Price incl. VAT

15

HOLD DOWN BRACKET STATOR

5256627

9999999

Not Available

16

FLANGED SEAL W/ HELIX; 29 X 44 X 10

5412881

$57,74 Unit Price incl. VAT

17

SCREW

7515156

$7,34 Unit Price incl. VAT

18

COIL MOUNT SPACER

5436577

$7,34 Unit Price incl. VAT

19

IGNITION COIL KIT; TWIN EFI

2876049

$451,49 Unit Price incl. VAT

20

NYLOK NUT

7542122

$2,09 Unit Price incl. VAT

21

SPARKPLUG WIRE; 59.3 CM

4012439

$115,49 Unit Price incl. VAT

22

PIN-DOWEL;M4X10-SS

7661946

7663002

$9,44 Unit Price incl. VAT

23

SCREW

7516818

$10,49 Unit Price incl. VAT

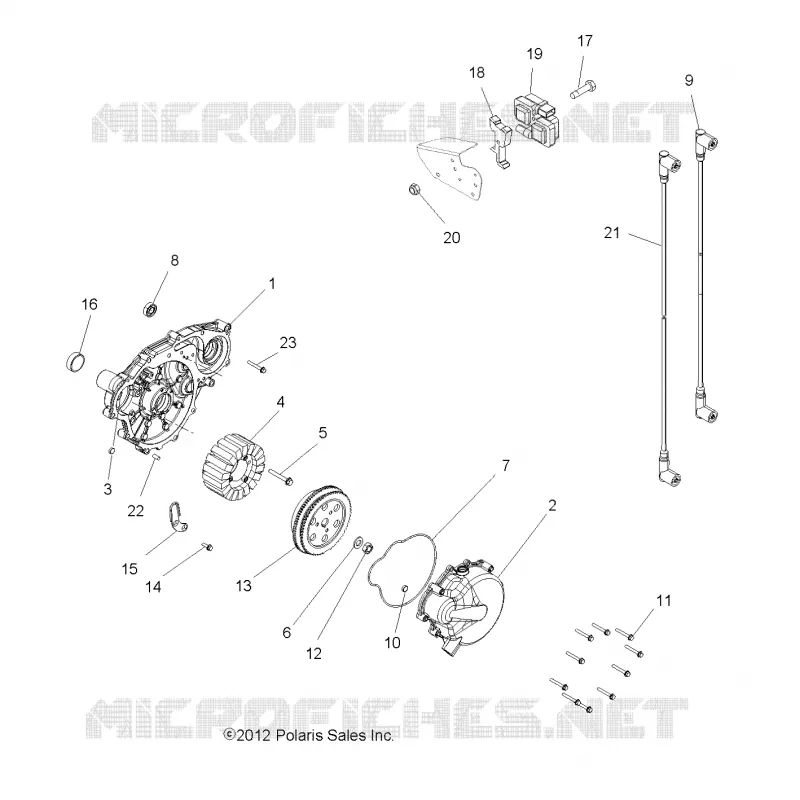

Find the detailed IGNITION SYSTEM (Built 6/04/12 and After) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
