Engine displacement
800
2
Year
2013
3
Trim
SPORTSMAN 800 EFI 6X6 - A13CF76AA
4
Parts Catalog
DRIVE TRAIN, MAIN GEARCASE
5
Parts Diagram
Parts Catalog
DRIVE TRAIN, GEAR SELECTOR
by
DRIVE TRAIN, MAIN GEARCASE INTERNAL
DRIVE TRAIN, MAIN GEARCASE
-
1
2
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
1
2
3
4
4
5
6
-
ASM-GEARCASE GEN 2 3.05H
1332716
9999999
Not Available
1
NUT-LOCK HEX FLANGE NYLON 5/16
3233961
$5,24 Unit Price incl. VAT
2
SCREW
3233826
9999999
Not Available
3
GEARCASE COVER
3234188
$209,99 Unit Price incl. VAT
4
O-RING
3233828
$12,59 Unit Price incl. VAT
5
DETENT PAWL
3233829
$68,24 Unit Price incl. VAT
6
SHIFT SHAFT
3233831
$115,49 Unit Price incl. VAT
7
SECTOR GEAR; 31 TOOTH CUT TO 11 TOOTH
3233832
$68,24 Unit Price incl. VAT
8
VITON TRIPLE LIP SEAL
3234892
$68,24 Unit Price incl. VAT
9
LABEL-OIL FILL/LEVEL CHECK
3234143
9999999
Not Available
10
HEX PLUG W/ O-RING; HOLLOW
3233794
$31,49 Unit Price incl. VAT
11
MAIN GEARCASE MACHINED
3234358
9999999
Not Available
12
TUBE VENT
3233524
$15,74 Unit Price incl. VAT
13
PLATE-PARK 12 FACE
3233915
$73,49 Unit Price incl. VAT
14
GEARCASE; LEFT; MACHINED
3234221
9999999
Not Available
15
SEAL-VITON DUAL LIP
3233866
3234851
$68,24 Unit Price incl. VAT
16
SCREW
3234042
$13,64 Unit Price incl. VAT
17
BRACKET-TRANSMISSION MOUNT
3234142
9999999
Not Available
18
PIN; DOWEL
3233247
9999999
Not Available
19
SECTOR GEAR; 16 TOOTH
3233839
$68,24 Unit Price incl. VAT
20
LOCKOUT DISC
3233838
$52,49 Unit Price incl. VAT
21
NUT
3234043
9999999
Not Available
22
DETENT STAR
3233909
$52,49 Unit Price incl. VAT
23
O-RING
3233836
$12,59 Unit Price incl. VAT
24
COMPRESSION DETENT SPRING
3234578
$26,24 Unit Price incl. VAT
25
SWITCH-ROTARY 6 PIN
3233835
3236115
$225,74 Unit Price incl. VAT
26
RETAINING RING
3233834
$19,94 Unit Price incl. VAT
27
BELLCRANK 510 HOLE 92 DEGREE
3234584
$52,49 Unit Price incl. VAT
28
SCR-TAPPING HEX WASHER HD 5/16
3234114
$13,64 Unit Price incl. VAT
29
WELD-TORQUE STOP
1016346
9999999
Not Available
30
PLUG; .75 HOLLOW HEX MAGNETIC
3234529
3233794
$31,49 Unit Price incl. VAT
31
STOP-TORQUE COURSE 3/8-16 1.50
3021354
$47,24 Unit Price incl. VAT
32
NUT
7542404
$3,14 Unit Price incl. VAT

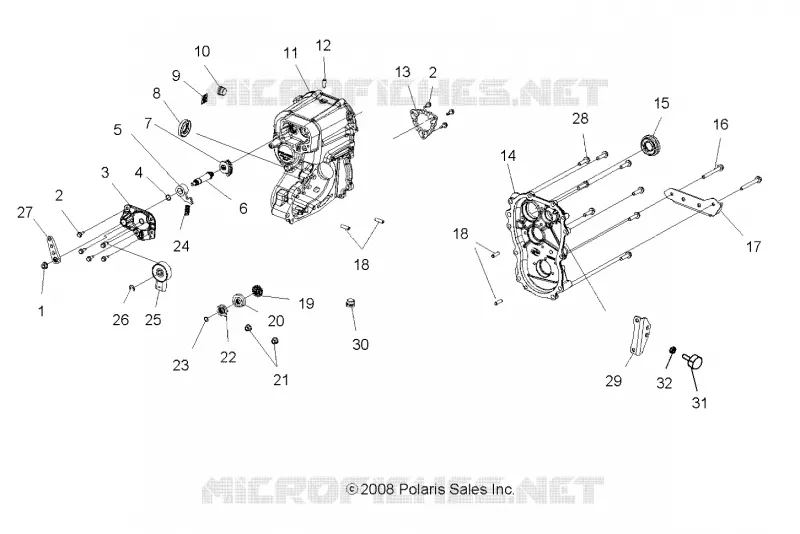

Find the detailed DRIVE TRAIN, MAIN GEARCASE POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.
