1
Engine displacement
570
2
Year
2018
3
Trim
SPORTSMAN 570 EPS ZUG
4
Parts Catalog
REAR BODYWORK CAB, SEAT AND FOOTWELLS
5
Parts Diagram
Parts Catalog
MIRRORSS
by
BODY, RIGHT HAND SIDE PANEL HEAT SHIELD AND HARDWARE 1 UP
REAR BODYWORK CAB, SEAT AND FOOTWELLS
1
1
1
2
3
4
5
6
7
8
8
9
10
11
1
ASM-COVER SEAT WHITE DECAL
2686537
2688340-070
$272,99 Unit Price incl. VAT
1
ASM-SEAT NYLON BLK
2688340070
Not Available
2
TUFLOK RIVET
7661855
$2,09 Unit Price incl. VAT
3
FOOTWELL; LEFT SIDE; GLOSS BLACK
5450523070
Not Available
4
FOOTWELL; RIGHT SIDE; GLOSS BLACK
5450524070
Not Available
5
SCREW
7517230
$2,09 Unit Price incl. VAT
6
NYLOK NUT
7542122
$2,09 Unit Price incl. VAT
7
BUMPER SHORT RUBBER
5412067
$7,34 Unit Price incl. VAT
8
CAB REAR SPORTSMAN
5450525293
Not Available
8
CAB; REAR; RIGHT; SPORTSMAN; SB GRN MTLC
5450525498
Not Available
9
SCREW 1/4-20 X .75 TORX
7518280
$2,09 Unit Price incl. VAT
10
SEAT LATCH GROMMET
5415539
$6,29 Unit Price incl. VAT
11
U-TYPE NUT; 1/4-20
7670145
9999999
Not Available

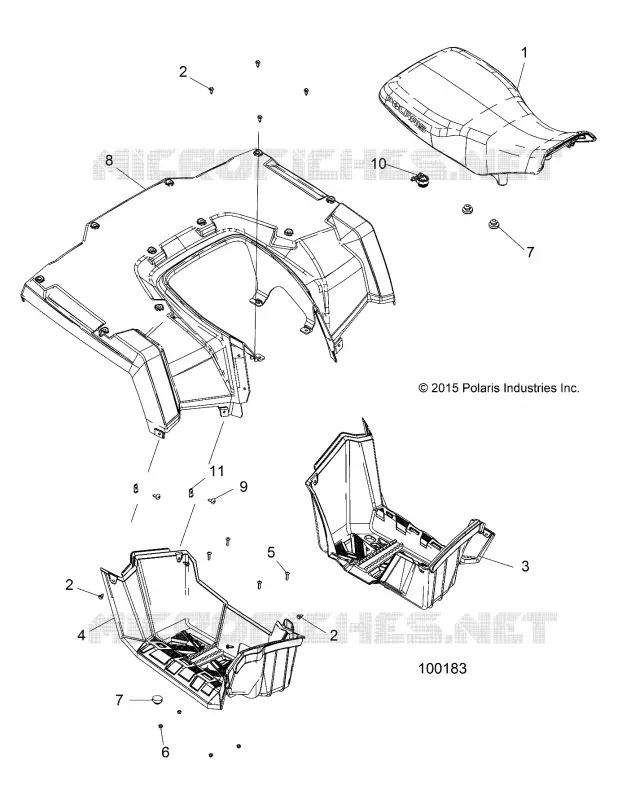

Find the detailed REAR BODYWORK CAB, SEAT AND FOOTWELLS POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
