ELECTRICAL/TAILLIGHT for POLARIS XPLORER - A01AG25CA from 2001

ELECTRICAL/TAILLIGHT

1

HARNESS-MAIN WIREXPL 4X4

2460862

9999999

Not Available

2

FAN CIRCUIT BREAKER KIT

2201795

9999999

Not Available

3

ISOLATOR TAILLIGHT

5211391067

Not Available

4

RIVET(50)

7621470

9999999

Not Available

5

KIT CKT.BRKR 20 AMP

2200593

$125,99 Unit Price incl. VAT

6

PUSH-ON NUT

7670054

$2,09 Unit Price incl. VAT

7

WASHER NYLON

7555916

$3,14 Unit Price incl. VAT

8

TAILLIGHT ASSEMBLY

2432034

9999999

Not Available

9

ROSEBUD CLIP

4020149

$12,59 Unit Price incl. VAT

10

SCREW

4032029

$9,44 Unit Price incl. VAT

11

TAIL LIGHT LENS

4032046

$62,99 Unit Price incl. VAT

12

BULB (10)

4030043

$12,59 Unit Price incl. VAT

13

GASKET

4032045

$7,34 Unit Price incl. VAT

14

BACKING TAILLIGHT

4032064

9999999

Not Available

15

NUT NYLOK 10-24 Y

7541925

$1,56 Unit Price incl. VAT

16

WASHER

7571602

$9,44 Unit Price incl. VAT

17

SCREW

7512027

$2,09 Unit Price incl. VAT

18

BATTERY PAD

5810290

5810290-CO

$13,64 Unit Price incl. VAT

19

BRKT MOUNT TAILLIGHT RVTD BLK

5244261067

Not Available

20

RIVET INTERLOCK

7661638

$2,09 Unit Price incl. VAT

21

KIT-BATTERY BOLT (SHORT)

2200361

9999999

Not Available

22

CABLE BATT/ENG. BLK.

4010095

9999999

Not Available

23

BATTERY STRAP HOOK

7010032

9999999

Not Available

24

STRAP BATTERY HOLDDOWN

5410424

5418182

$9,44 Unit Price incl. VAT

25

CLIP

7670102

$4,19 Unit Price incl. VAT

26

VENT TUBE

5432077

9999999

Not Available

27

BATTERY; 195 COLD CRANK AMPS

4140006

$136,49 Unit Price incl. VAT

28

BATTERY COVER

5431769

$29,39 Unit Price incl. VAT

29

CABLE BATT/SOLENOID RED

4010094

9999999

Not Available

30

SOLENOID TO START CABLE; DOUBLE BOOT

4010129

9999999

Not Available

31

BOLT

7512007

$7,34 Unit Price incl. VAT

32

RECTIFIER/REGULATOR LR39-1

4060208

9999999

Not Available

33

SCREW

7512024

$9,44 Unit Price incl. VAT

34

LIMITER-RPM HUB GROUND LR83-1

4010188

Not Available

35

SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]

*******

Not Available

36

ROUTING CLIP

7670109

$4,19 Unit Price incl. VAT

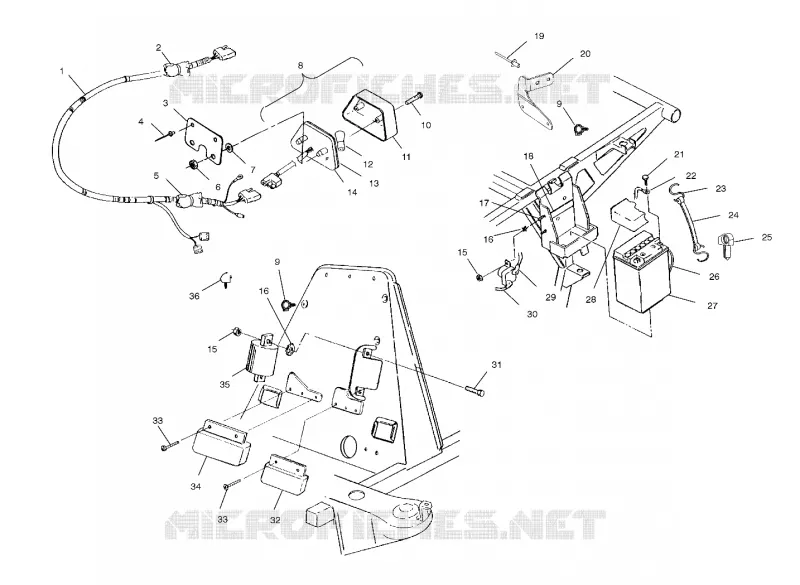

Find the detailed ELECTRICAL/TAILLIGHT POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
