1
Engine displacement
1000
2
Year
2014
3
Trim
RZR XP 4 1000/PS - Z146T1EAM/EAW
4
Parts Catalog
STEERING
5
Parts Diagram
Parts Catalog
OWNERS MANUAL AND TOOL KIT
by
FRONT SUSPENSION CONTROL ARMS
STEERING
13
14
15
15
16
17
17
18
19
19
19
20
21
22
23
24
25
26
27
28
29
30
31
1
STEERING GEAR BOX ASSEMBLY
1823984
9999999
Not Available
2
DRIVER SIDE BOOT RACK
5412012
$115,49 Unit Price incl. VAT
3
PASSENGER SIDE BOOT RACK
5412013
$104,99 Unit Price incl. VAT
4
OUTER TIE ROD
7061189
$136,49 Unit Price incl. VAT
5
JAM NUT; LEFT; 14-1.5 MM
2205058
$41,99 Unit Price incl. VAT
6
BOOT CLAMP; SMALL
7080978
$4,19 Unit Price incl. VAT
7
BOOT CLAMP; LARGE
7080979
$10,49 Unit Price incl. VAT
8
RIVETED STEERING TILT ASSEMBLY; MT BLK
1019185458
Not Available
9
STEERING SHAFT; UPPER
1823891
$272,99 Unit Price incl. VAT
10
EPS STEERING SHAFT; LOWER
1824012
$257,24 Unit Price incl. VAT
11
ASM-POWER STEERING;RZR
2411826
9999999
Not Available
12
EPS MOUNT; BLACK
5257531329
Not Available
13
COVER-EPS
5438626
$68,24 Unit Price incl. VAT
14
PANEL COVER-STEERING
5450771
9999999
Not Available
15
HEX FLANGE BOLT OLIVE 10MMX1.25MMX20MM
7518558
$7,34 Unit Price incl. VAT
16
HEX FLANGE SCREW 10 MM X 1.50 MM X 35 MM
7518644
$9,44 Unit Price incl. VAT
17
HEX FLANGE SCREW; 8 MM X 1.25 MM X 35 MM
7519052
$3,14 Unit Price incl. VAT
18
SCR-TXTH-M6X1.0X15 ZPB TAP
7519092
$2,09 Unit Price incl. VAT
19
NYLOC OLIVE NUT; 8 MM X 1.25 MM
7547332
$7,34 Unit Price incl. VAT
20
NUT-NY INS;M10X1.5;HEX;ZINC;YW
7547385
$2,09 Unit Price incl. VAT
21
STEERING BUSHING
7556675
$24,14 Unit Price incl. VAT
22
STEERING WHEEL
1824014
2209704
$248,84 Unit Price incl. VAT
23
STEERING WHEEL CAP; GRAY
5450255656
Not Available
24
BOLT-M6X1.0X20 HXFLG OLIVE D
7518613
$7,34 Unit Price incl. VAT
25
NUT-HEX-M16X2 8 ZC NYL
7547506
$7,34 Unit Price incl. VAT
26
OIL LOCKING SHOCK ASSEMBLY
7044098
$178,49 Unit Price incl. VAT
27
BOLT-SHOULDER M8-15 M6X1.0-BLK
7519980
$13,64 Unit Price incl. VAT
28
NYLOK NUT
7546703
$2,09 Unit Price incl. VAT
29
HEX FLANGE SCREW 10 MM X 1.25 MM X 75 MM
7519854
$31,49 Unit Price incl. VAT
30
NYLOC NUT
7547333
$3,14 Unit Price incl. VAT
31
COTTER PIN
7661203
$2,09 Unit Price incl. VAT

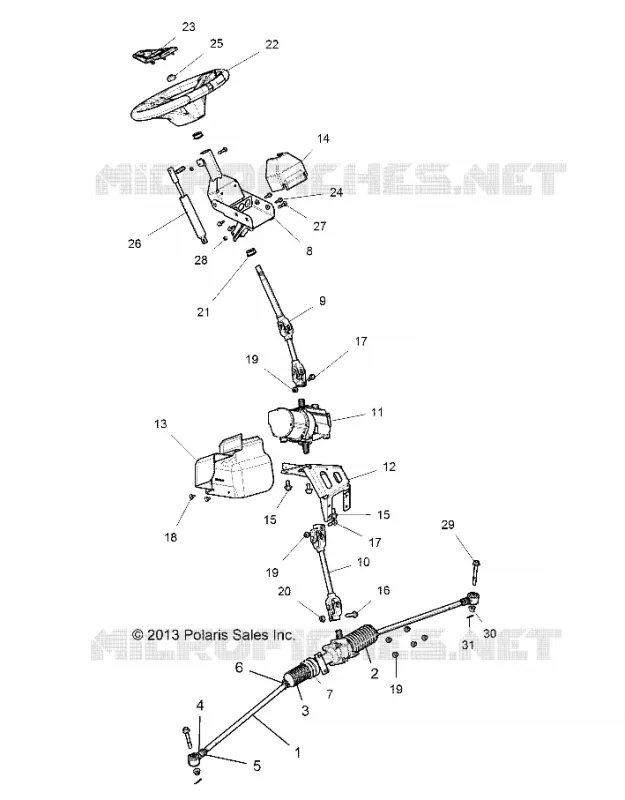

Find the detailed STEERING POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.

Other Parts for RZR XP 4 1000/PS - Z146T1EAM/EAW

DOORS, REAR

DOORS, REAR

for RZR XP 4 1000/PS - Z146T1EAM/EAW from 2014

FLOOR ROCKER PANELS

FLOOR ROCKER PANELS

for RZR XP 4 1000/PS - Z146T1EAM/EAW from 2014

FRONT BUMPER

FRONT BUMPER

for RZR XP 4 1000/PS - Z146T1EAM/EAW from 2014

FUEL TANK

FUEL TANK

for RZR XP 4 1000/PS - Z146T1EAM/EAW from 2014

SEAT ASM. AND SLIDER

SEAT ASM. AND SLIDER

for RZR XP 4 1000/PS - Z146T1EAM/EAW from 2014

SEAT BELT MOUNTING

SEAT BELT MOUNTING

for RZR XP 4 1000/PS - Z146T1EAM/EAW from 2014

BRAKE LINES AND MASTER CYLINDER

BRAKE LINES AND MASTER CYLINDER

for RZR XP 4 1000/PS - Z146T1EAM/EAW from 2014

FRONT BRAKE CALIPER

FRONT BRAKE CALIPER

for RZR XP 4 1000/PS - Z146T1EAM/EAW from 2014

DRIVE TRAIN, CLUTCH COVER AND DUCTING

DRIVE TRAIN, CLUTCH COVER AND DUCTING

for RZR XP 4 1000/PS - Z146T1EAM/EAW from 2014

DRIVE TRAIN, FRONT GEARCASE

DRIVE TRAIN, FRONT GEARCASE

for RZR XP 4 1000/PS - Z146T1EAM/EAW from 2014

DRIVE TRAIN, FRONT GEARCASE MOUNTING

DRIVE TRAIN, FRONT GEARCASE MOUNTING

for RZR XP 4 1000/PS - Z146T1EAM/EAW from 2014

DRIVE TRAIN, FRONT HALF SHAFT

DRIVE TRAIN, FRONT HALF SHAFT

for RZR XP 4 1000/PS - Z146T1EAM/EAW from 2014

DRIVE TRAIN, PROP SHAFT

DRIVE TRAIN, PROP SHAFT

for RZR XP 4 1000/PS - Z146T1EAM/EAW from 2014

DRIVE TRAIN, REAR HALF SHAFT

DRIVE TRAIN, REAR HALF SHAFT

for RZR XP 4 1000/PS - Z146T1EAM/EAW from 2014

DRIVE TRAIN, SECONDARY CLUTCH

DRIVE TRAIN, SECONDARY CLUTCH

for RZR XP 4 1000/PS - Z146T1EAM/EAW from 2014

BATTERY

BATTERY

for RZR XP 4 1000/PS - Z146T1EAM/EAW from 2014

ELECTRICAL, DASH INSTRUMENTS AND CONTROLS

ELECTRICAL, DASH INSTRUMENTS AND CONTROLS

for RZR XP 4 1000/PS - Z146T1EAM/EAW from 2014

COOLING SYSTEM

COOLING SYSTEM

for RZR XP 4 1000/PS - Z146T1EAM/EAW from 2014

CRANKCASE AND CRANKSHAFT

CRANKCASE AND CRANKSHAFT

for RZR XP 4 1000/PS - Z146T1EAM/EAW from 2014

CYLINDER AND PISTON

CYLINDER AND PISTON

for RZR XP 4 1000/PS - Z146T1EAM/EAW from 2014

CYLINDER HEAD AND VALVES

CYLINDER HEAD AND VALVES

for RZR XP 4 1000/PS - Z146T1EAM/EAW from 2014

STARTER

STARTER

for RZR XP 4 1000/PS - Z146T1EAM/EAW from 2014

ENGINE, STATOR AND FLYWHEEL

ENGINE, STATOR AND FLYWHEEL

for RZR XP 4 1000/PS - Z146T1EAM/EAW from 2014

THROTTLE BODY AND VALVE COVER

THROTTLE BODY AND VALVE COVER

for RZR XP 4 1000/PS - Z146T1EAM/EAW from 2014

THROTTLE PEDAL

THROTTLE PEDAL

for RZR XP 4 1000/PS - Z146T1EAM/EAW from 2014

ENGINE, WATERPUMP AND BYPASS

ENGINE, WATERPUMP AND BYPASS

for RZR XP 4 1000/PS - Z146T1EAM/EAW from 2014

REAR SUSPENSION CONTROL ARMS

REAR SUSPENSION CONTROL ARMS

for RZR XP 4 1000/PS - Z146T1EAM/EAW from 2014

REAR SUSPENSION SHOCK MOUNTING

REAR SUSPENSION SHOCK MOUNTING

for RZR XP 4 1000/PS - Z146T1EAM/EAW from 2014

REAR STRUT STABILIZER

REAR STRUT STABILIZER

for RZR XP 4 1000/PS - Z146T1EAM/EAW from 2014

WHEELS, FRONT

WHEELS, FRONT

for RZR XP 4 1000/PS - Z146T1EAM/EAW from 2014

DASHBOARD GLOVEBOX

DASHBOARD GLOVEBOX

for RZR XP 4 1000/PS - Z146T1EAM/EAW from 2014

DECALS

DECALS

for RZR XP 4 1000/PS - Z146T1EAM/EAW from 2014

DOORS, FRONT

DOORS, FRONT

for RZR XP 4 1000/PS - Z146T1EAM/EAW from 2014

PASSENGER GRAB BAR

PASSENGER GRAB BAR

for RZR XP 4 1000/PS - Z146T1EAM/EAW from 2014

HOOD FRONT BODY WORK

HOOD FRONT BODY WORK

for RZR XP 4 1000/PS - Z146T1EAM/EAW from 2014

REAR BUMPER

REAR BUMPER

for RZR XP 4 1000/PS - Z146T1EAM/EAW from 2014

REAR RACK AND FENDERS

REAR RACK AND FENDERS

for RZR XP 4 1000/PS - Z146T1EAM/EAW from 2014

BRAKES, PEDAL AND MASTER CYLINDER

BRAKES, PEDAL AND MASTER CYLINDER

for RZR XP 4 1000/PS - Z146T1EAM/EAW from 2014

REAR BRAKE CALIPER

REAR BRAKE CALIPER

for RZR XP 4 1000/PS - Z146T1EAM/EAW from 2014

CHASSIS, CAB FRAME

CHASSIS, CAB FRAME

for RZR XP 4 1000/PS - Z146T1EAM/EAW from 2014

CHASSIS, MAIN FRAME AND SKID PLATES

CHASSIS, MAIN FRAME AND SKID PLATES

for RZR XP 4 1000/PS - Z146T1EAM/EAW from 2014

DRIVE TRAIN, GEAR SELECTOR

DRIVE TRAIN, GEAR SELECTOR

for RZR XP 4 1000/PS - Z146T1EAM/EAW from 2014

DRIVE TRAIN, MAIN GEARCASE INTERNALS

DRIVE TRAIN, MAIN GEARCASE INTERNALS

for RZR XP 4 1000/PS - Z146T1EAM/EAW from 2014

DRIVE TRAIN, MAIN GEARCASE MOUNTING

DRIVE TRAIN, MAIN GEARCASE MOUNTING

for RZR XP 4 1000/PS - Z146T1EAM/EAW from 2014

DRIVE TRAIN, PRIMARY CLUTCH

DRIVE TRAIN, PRIMARY CLUTCH

for RZR XP 4 1000/PS - Z146T1EAM/EAW from 2014

HEADLIGHTS AND TAILLIGHTS

HEADLIGHTS AND TAILLIGHTS

for RZR XP 4 1000/PS - Z146T1EAM/EAW from 2014

WIRE HARNESS

WIRE HARNESS

for RZR XP 4 1000/PS - Z146T1EAM/EAW from 2014

ENGINE, AIR INTAKE SYSTEM

ENGINE, AIR INTAKE SYSTEM

for RZR XP 4 1000/PS - Z146T1EAM/EAW from 2014

CAM CHAIN AND TENSIONER

CAM CHAIN AND TENSIONER

for RZR XP 4 1000/PS - Z146T1EAM/EAW from 2014

ENGINE, DIPSTICK AND OIL FILTER

ENGINE, DIPSTICK AND OIL FILTER

for RZR XP 4 1000/PS - Z146T1EAM/EAW from 2014

EXHAUST SYSTEM

EXHAUST SYSTEM

for RZR XP 4 1000/PS - Z146T1EAM/EAW from 2014

ENGINE, MOUNTING

ENGINE, MOUNTING

for RZR XP 4 1000/PS - Z146T1EAM/EAW from 2014

OIL PUMP

OIL PUMP

for RZR XP 4 1000/PS - Z146T1EAM/EAW from 2014

OWNERS MANUAL AND TOOL KIT

OWNERS MANUAL AND TOOL KIT

for RZR XP 4 1000/PS - Z146T1EAM/EAW from 2014

STEERING

STEERING

for RZR XP 4 1000/PS - Z146T1EAM/EAW from 2014

FRONT SUSPENSION CONTROL ARMS

FRONT SUSPENSION CONTROL ARMS

for RZR XP 4 1000/PS - Z146T1EAM/EAW from 2014

FRONT SUSPENSION SHOCK MOUNTING

FRONT SUSPENSION SHOCK MOUNTING

for RZR XP 4 1000/PS - Z146T1EAM/EAW from 2014

WHEELS, REAR

WHEELS, REAR

for RZR XP 4 1000/PS - Z146T1EAM/EAW from 2014

FRONT SUSPENSION SHOCK

FRONT SUSPENSION SHOCK

for RZR XP 4 1000/PS - Z146T1EAM/EAW from 2014

REAR SUSPENSION SHOCK

REAR SUSPENSION SHOCK

for RZR XP 4 1000/PS - Z146T1EAM/EAW from 2014

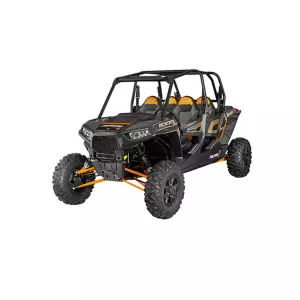

POLARIS RZR XP 4 1000/PS - Z146T1EAM/EAW 2014
