Engine displacement
250
2
Year
2003
3
Trim
TRAIL BLAZER 250 - A03BA25CA/CB
4
Parts Catalog
ENGINE MOUNTING
5
Parts Diagram
Parts Catalog
by
DECALS
ENGINE MOUNTING
1
1
1
1
1
1
1
2
2
3
4
5
6
7
8
9
10
11
12
13
14
14
16
16
17
18
18
19
19
20
20
21
22
23
24
24
24
25
26
27
28
28
29
30
31
31
1
2
3
4
5
6
7
8
9
10
11
12
13
14
14
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
1
NUT
7547108
$9,44 Unit Price incl. VAT
2
MOUNT MOTOR
3110026
9999999
Not Available
3
MOTOR MOUNT INSULATOR
5430802
9999999
Not Available
4
BOLT
7512315
$9,44 Unit Price incl. VAT
5
SPRING LOCK WASHER
7552901
$2,09 Unit Price incl. VAT
6
BRKTENGINE MOUNTTOP250BLK
5244119067
Not Available
7
BOLT
7512232
$2,09 Unit Price incl. VAT
8
CABLE GND-ENGINE
4010132
9999999
Not Available
9
BR8ES SPARK PLUG; NGK(4)
3070156
$7,34 Unit Price incl. VAT
10
SOLENOID TO START CABLE; DOUBLE BOOT
4010129
9999999
Not Available
11
INSUL.CABLE SOL.
5410346
9999999
Not Available
12
BOLT
7515481
9999999
Not Available
13
MOUNT FR.ENGINE BLK.
1040687067
Not Available
14
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
15
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
16
NARROW BAND CLAMP
7080511
$9,44 Unit Price incl. VAT
17
CLUTCH INTAKE BOOT
5410421
9999999
Not Available
18
WASHER
7555823
$7,34 Unit Price incl. VAT
19
SPRING LOCK WASHER
7552603
$1,56 Unit Price incl. VAT
20
SCREW
7512490
$7,34 Unit Price incl. VAT
21
BRKT-ENGINE MOUNT;FRT;250;BLK
5242896067
Not Available
22
ENG.(S.B.)EC25PF-SB
3084717
9999999
Not Available
23
DECAL DRAIN RECOIL
7078577
9999999
Not Available
24
LINE FUEL 1/8 ID 600 CM.
8360009600
Not Available
25
VALVE CHECK
7051011
9999999
Not Available
26
FITTING; TEE
7052005
9999999
Not Available
27
BRKT-ENGINE MOUNTREAR250BLK
5242897067
Not Available
28
FUEL LINE; 1/4 ID
84500031525
Not Available
29
MOUNT ENGINE
3110028
9999999
Not Available
30
SMALL IN-LINE FILTER
2530009
$12,59 Unit Price incl. VAT
31
HOSE CLAMP
7080003
$2,09 Unit Price incl. VAT

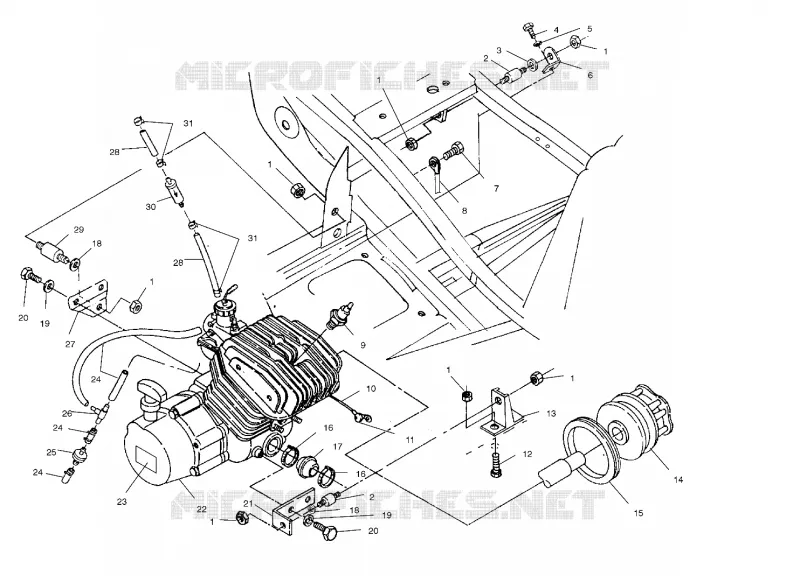

Find the detailed ENGINE MOUNTING POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
