Engine displacement
900
2
Year
2014
3
Trim
RANGER CREW 900 DIESEL - R14WH90DG
4
Parts Catalog
CHASSIS, FRAME AND FRONT BUMPER
5
Parts Diagram
Parts Catalog
CHASSIS, CAB FRAME
by
DRIVE TRAIN, DRIVE COUPLER AND BELLHOUSING
CHASSIS, FRAME AND FRONT BUMPER
1
1
1
2
3
4
5
6
7
8
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
1
1
HEX FLANGE BOLT; 8 MM X 1.25 MM X 20 MM
7518555
$4,19 Unit Price incl. VAT
2
CAB AND SEAT BASE WELD; MATTE BLACK
1019938458
Not Available
3
FLOOR SUPPORT WELD; FRONT; RIGHT; BLACK
1016865329
Not Available
4
SUPPORT-FRAME JOINTBLK
5632316329
Not Available
5
BUMPER GUARD BRACKET; GLOSS BLACK
5438181070
Not Available
6
FOAM-HOOD SUPPORT
5813421
9999999
Not Available
7
SUPPORT CAB WELD; FRONT; BLK ENG; EWB
1017325521
Not Available
8
M10 X 1.25 X 60 SCREW
7518563
$5,76 Unit Price incl. VAT
9
NYLOC NUT
7547333
$3,14 Unit Price incl. VAT
10
SCR-1/4-20X1/2 TR/TX/TAP/R B
7518981
$7,34 Unit Price incl. VAT
11
BUMPER CAP
5434191
$12,59 Unit Price incl. VAT
12
FASCIA SCREEN; GLOSS BLACK
5438241070
Not Available
13
SCREW
7517685
$3,14 Unit Price incl. VAT
14
BUMPER SCREEN; UPPER; GLOSS BLACK
5438240070
Not Available
15
HEX FLANGE NUT; 10 MM X 1.5 MM
7547313
$2,09 Unit Price incl. VAT
16
FLAT WASHER
7555806
$1,56 Unit Price incl. VAT
17
BOLT-M10X1.5X75 HX HD FLG
7518473
$9,44 Unit Price incl. VAT
18
FRONT BUMPER WELDMENT; BLACK ENGINE
1016310521
Not Available
19
SCREW #14 X 1 HI/LO
7518158
$9,44 Unit Price incl. VAT
20
FLOOR SUPPORT WELD; FRONT; LEFT; BLACK
1016864329
Not Available
21
FRAME WELD FRONT MATTE BLACK
1017649458
Not Available
22
WELD-FRAME REAR M BLK
1017650458
Not Available
23
CAB AND SEAT BASE WELD; MATTE BLACK
1019937458
Not Available
24
SCREW
7517281
$13,64 Unit Price incl. VAT
25
NUT-M8X1.25 HXFLG NYLON INS
7547317
7548028
$5,24 Unit Price incl. VAT

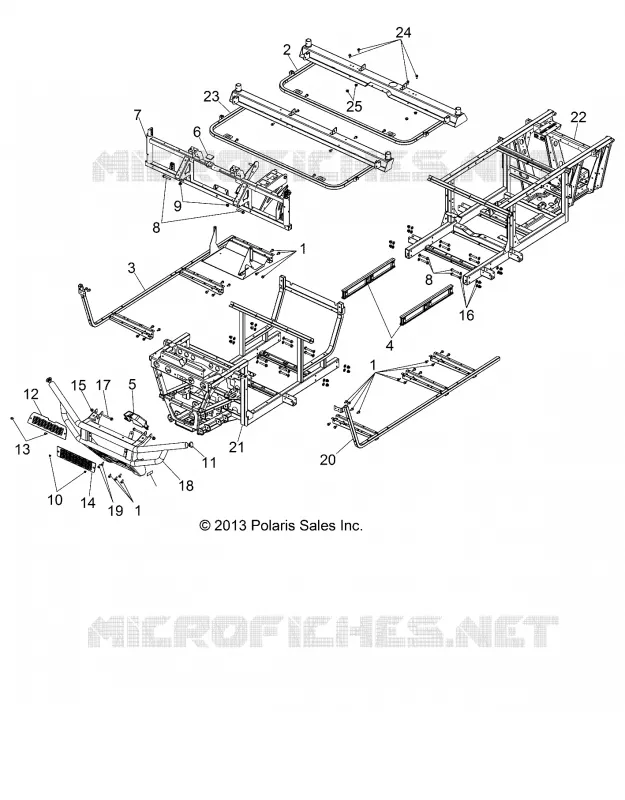

Find the detailed CHASSIS, FRAME AND FRONT BUMPER POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
