Engine displacement
570
2
Year
2013
3
Trim
RZR 570 EFI - R13VH57AD/6EAK
4
Parts Catalog
CHASSIS, CAB FRAME AND SIDE BARS
5
Parts Diagram
Parts Catalog
REAR BRAKE CALIPER
by
CHASSIS, MAIN FRAME AND SKID PLATE
CHASSIS, CAB FRAME AND SIDE BARS
1
2
3
4
5
6
7
7
8
8
13
13
13
10
10
11
12
13
10
10
1
WELD-CAB FRAMEBACKM. BLK
1018251458
Not Available
2
WELD-CAB FRAMEFRONTM BLK
1017476458
Not Available
3
CAB FRAME; BASE; FRONT; RIGHT; MT BLK
5632414458
Not Available
4
CAB FRAME BASE; FRONT; LEFT; MATTE BLACK
5632415458
Not Available
5
TUBE SIDE BAR LEFT MATTE BLACK
5336741458
Not Available
6
TUBE SIDE BAR; RIGHT; MATTE BLACK
5336742458
Not Available
7
HEX SOCKET SCREW; 3/8; 16 X 1 1/4
7517935
$4,19 Unit Price incl. VAT
8
NYLOK NUT
7542451
$2,09 Unit Price incl. VAT
9
HEX FLANGE BOLT; 8 MM X 1.25 MM X 20 MM
7518702
$7,34 Unit Price incl. VAT
10
NYLOC OLIVE NUT; 8 MM X 1.25 MM
7547332
$7,34 Unit Price incl. VAT
11
HEX FLANGE BOLT; 8 MM X 1.25 MM X 20 MM
7518555
$4,19 Unit Price incl. VAT
12
SCREW
7516732
$3,14 Unit Price incl. VAT
13
HEX FLANGE BOLT; 8 MM X 1.25 MM X 20 MM
7518702
$7,34 Unit Price incl. VAT
14
NYLOC OLIVE NUT; 8 MM X 1.25 MM
7547332
$7,34 Unit Price incl. VAT

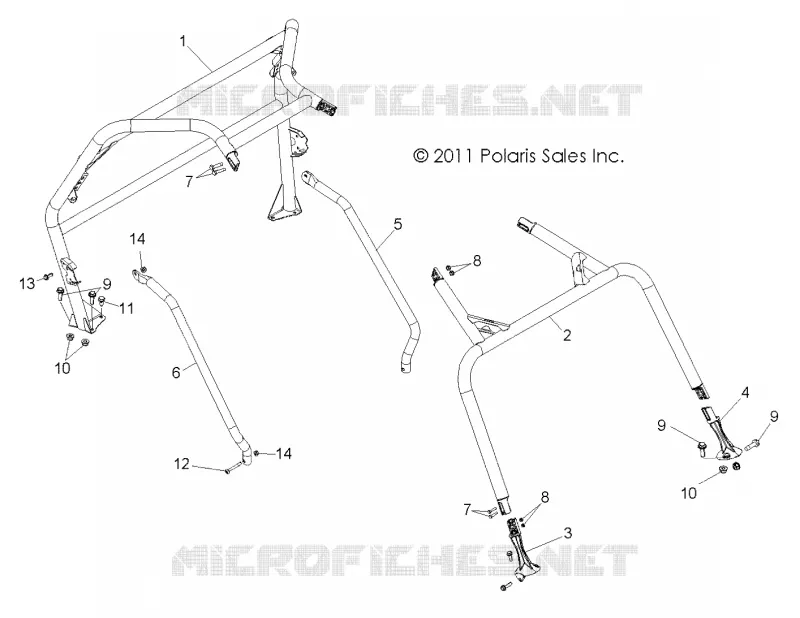

Find the detailed CHASSIS, CAB FRAME AND SIDE BARS POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
