1
Engine displacement
925
2
Year
2020
3
Trim
RZR TURBO S VELOCITY
4
Parts Catalog
EXHAUST SYSTEM
5
Parts Diagram
Parts Catalog
COOLING SYSTEM
by
ENGINE, MOUNTING
EXHAUST SYSTEM
20
21
22
23
24
25
26
27
28
29
30
31
32
1
HEADPIPE ASSEMBLY; TURBO; EVAP
1263230
9999999
Not Available
2
LOCK STUD 8MMX1.25MMX40MM S. STEEL
7520290
$13,64 Unit Price incl. VAT
3
HEAD PIPE HEAT SHIELD; FRONT
5264104
$83,99 Unit Price incl. VAT
4
SHIELD-HEAT HEADPIPE RR INNER
5266196
$83,99 Unit Price incl. VAT
5
HEX HEAD SCREW W/ LOCK 6MM X 1.0MM X10MM
7520291
$13,64 Unit Price incl. VAT
6
TURBO HEAT SHIELD; UPPER
5266197
$73,49 Unit Price incl. VAT
7
EXHAUST GASKET
5812640
5814964
$104,99 Unit Price incl. VAT
8
EXHAUST GASKET 3 BOLT
5814340
5814963
$13,64 Unit Price incl. VAT
9
HEX HEAD FLANGE SCREW; 6 MM X 16 MM
7518591
$6,29 Unit Price incl. VAT
10
SILENCER ASSEMBLY
1263164
9999999
Not Available
11
SPARK ARRESTOR
1262390
$99,74 Unit Price incl. VAT
12
SHIELD-SILENCER
5262943
9999999
Not Available
13
HEX FLANGE HD SCREW; 6 MM X 12 MM
7517257
$17,84 Unit Price incl. VAT
14
SCR-1/4-20X1/2 TFM HW-M
7518490
$2,09 Unit Price incl. VAT
15
NUT
7547120
$9,44 Unit Price incl. VAT
16
WASHER
7555935
$4,19 Unit Price incl. VAT
17
TURBO HEAD SHIELD OUTLET
5266199
$73,49 Unit Price incl. VAT
18
SPRING-EXHAUST S.S. SHOTPEENED
7043727
$9,44 Unit Price incl. VAT
19
NUT-HXFL-M8X1.25 A493 EM6340
7547803
$7,34 Unit Price incl. VAT
20
ACCESS PANEL SHIELD
5814648
9999999
Not Available
21
SHIELD-BOX FRONT
5814245
$83,99 Unit Price incl. VAT
22
SHIELD-REAR STAINLESS
5268152
$83,99 Unit Price incl. VAT
23
ISOLATOR MOUNT
5450115
$31,49 Unit Price incl. VAT
24
LOACK SCREW; 8 MM X 1.25 MM X 25 MM
7520277
$11,54 Unit Price incl. VAT
25
ACCESS PANEL SHIELD
5262942
$68,24 Unit Price incl. VAT
26
ENGINE SHIELD
5266195
9999999
Not Available
27
BOLT M6 X 1.0 X 20
7518529
$2,09 Unit Price incl. VAT
28
SCR-10X 5/8 TX PN PLST-243
7518577
$4,19 Unit Price incl. VAT
29
WASHER .281 X 1.00 X 0.51
7556329
$2,09 Unit Price incl. VAT
30
TUFLOK RIVET
7661855
$2,09 Unit Price incl. VAT
31
SENSOR-WIDE BAND LAMBDA
2413317
$493,49 Unit Price incl. VAT
32
SHIELD-SILENCER INLET
5264915
9999999
Not Available

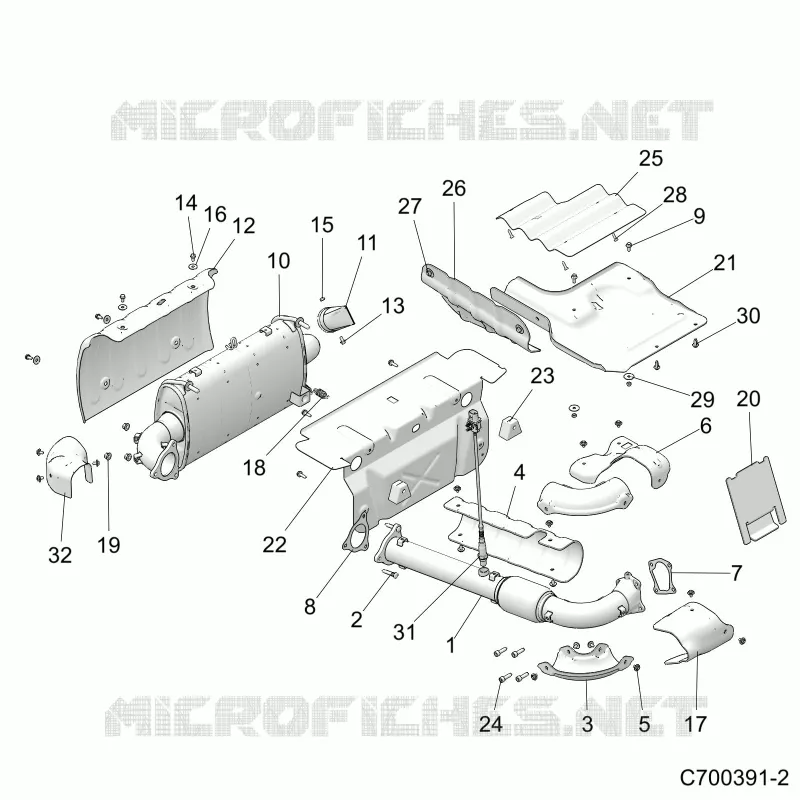

Find the detailed EXHAUST SYSTEM POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
