1
Engine displacement
900
2
Year
2020
3
Trim
RZR S 900 ALL OPTIONS
4
Parts Catalog
REAR RACK AND FENDERS
5
Parts Diagram
Parts Catalog
DECALSS
by
SEAT BELT MOUNTING
REAR RACK AND FENDERS
1
1
1
2
2
2
3
3
4
5
5
6
6
6
6
6
6
6
6
6
6
7
7
7
7
7
7
8
8
8
8
9
10
11
12
13
14
14
15
16
17
18
19
19
20
21
22
23
1
ASM-FNDR TPO RR CLIP LH WH LTG
2635495599
Not Available
1
ASM-FNDR PNT RR CLIP LH T.SLV
2635493402
Not Available
1
ASM-FNDR PNT RR CLIP LH BG MET
2635493629
Not Available
2
ASM-FNDR PNT RR CLIP RH BG MET
2635494629
Not Available
2
FENDER ASSEMBLY; REAR; RIGHT
2635496599
Not Available
2
ASM-FNDR PNT RR CLIP RH T.SLVR
2635494402
Not Available
3
DASH TRIM CLIP
7519806
$7,34 Unit Price incl. VAT
4
REAR LEFT FENDER FLARE; GLOSS BLACK
5439766070
Not Available
5
REAR RIGHT FENDER FLARE; GLOSS BLACK
5439767070
Not Available
6
BOLT
7519650
$7,34 Unit Price incl. VAT
7
U-TYPE NUT; M6-1.0
7547674
$2,09 Unit Price incl. VAT
8
TUFLOK RIVET
7661855
$2,09 Unit Price incl. VAT
9
AIR INTAKE HOUSING
5454276
$262,49 Unit Price incl. VAT
10
PLUG-REAR FASCIA LH BLK
5415121070
Not Available
11
PLUG-REAR FASCIA RH BLK
5415122070
Not Available
12
FASCIA-REAR GLOSS BLACK
5451117070
Not Available
13
REAR BOX ASSEMBLY; BLACK
2637552
2640632
$755,99 Unit Price incl. VAT
14
ASM-PANEL-BOX ACCESS INTL
2637102
9999999
Not Available
14
BOX ACCESS PANEL ASSEMBLY
2636748
$204,74 Unit Price incl. VAT
15
BOX MOUNT SHIELD; INNER
5263555
$73,49 Unit Price incl. VAT
16
TORX SCREW; #14 X 3/4
7519045
$6,29 Unit Price incl. VAT
17
INTAKE COVER GRILL; LEFT; GLOSS BLACK
5451188070
Not Available
18
INTAKE GRILL COVER; RIGHT; GLOSS BLACK
5451189070
Not Available
19
SCREW
7512026
$2,09 Unit Price incl. VAT
20
COVER PLATE LATCH; GLOSS BLACK
5450510070
Not Available
21
SEAT LATCH SPRING
7081466
$57,74 Unit Price incl. VAT
22
SCR-TXPH-#14X3/4 HI/LO CLR
7519290
$7,34 Unit Price incl. VAT
23
SEAT LATCH LEVER
5437121
$9,44 Unit Price incl. VAT

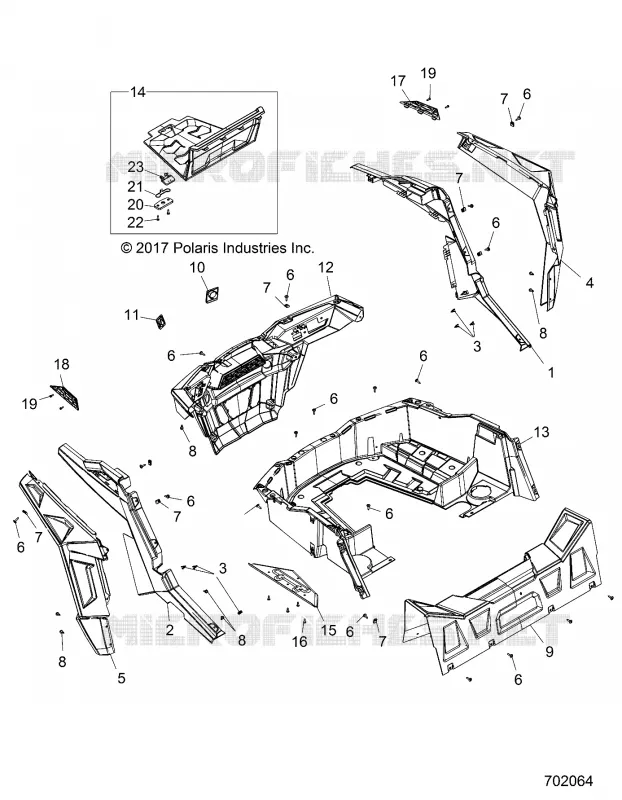

Find the detailed REAR RACK AND FENDERS POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
