CRANKCASE for POLARIS RANGER 800 6X6 - R14HR76AA/AJ from 2014

CRANKCASE

1

PLUG EXPANSION 9MM 500PSI

7051531

9999999

Not Available

2

HOLLOW DOWEL; 16 MM X 12 MM

7661175

$10,49 Unit Price incl. VAT

3

EXPANSION PLUG; 19 MM

7051530

$15,74 Unit Price incl. VAT

4

CRANKCASE KIT 1204194

2204395

9999999

Not Available

5

PIN DOWEL

7663001

$20,99 Unit Price incl. VAT

6

BOLT(1)

7516603

$19,94 Unit Price incl. VAT

7

OIL PICKUP ASSEMBLY

1202663

$104,99 Unit Price incl. VAT

8

O-RING SEAL; .070 X .614

5812016

$5,76 Unit Price incl. VAT

9

EXPANSION PLUG; 48 MM

3060004

9999999

Not Available

10

RING-RETAINING 1 5/8 (10)

7710512

$7,34 Unit Price incl. VAT

11

HEX FLANGE SCREW; 8 MM X 1.25 MM X 90 MM

7517792

$4,19 Unit Price incl. VAT

12

SCR-M8X1.25X50 HX/FL-Y

7517793

$10,49 Unit Price incl. VAT

13

COPPER WASHER

5812232

7556937

$6,29 Unit Price incl. VAT

14

SOCKET PLUG; 12 MM X 1.5 MM

7052306

$31,49 Unit Price incl. VAT

15

CRANKCASE BAFFLE PLATE

5211785

9999999

Not Available

16

HEX FLANGE SCREW; 5 MM X .80 MM X 8 MM

7518045

9999999

Not Available

17

SCREW

7517598

$19,94 Unit Price incl. VAT

18

THRUST PLATE

5244286

9999999

Not Available

19

HEX FLANGE SCREW; 8 MM X 1.25 MM X 45 MM

7517865

$20,99 Unit Price incl. VAT

20

SPRING WASHER; 1.1 X .559 X .0315

7556183

$17,84 Unit Price incl. VAT

21

GEAR SET KIT

2203106

9999999

Not Available

22

CAMSHAFT KIT; 800 EFI H.O.

2203740

$871,49 Unit Price incl. VAT

23

PLUG-EXPANSION 13MM 500 PSI

7052288

9999999

Not Available

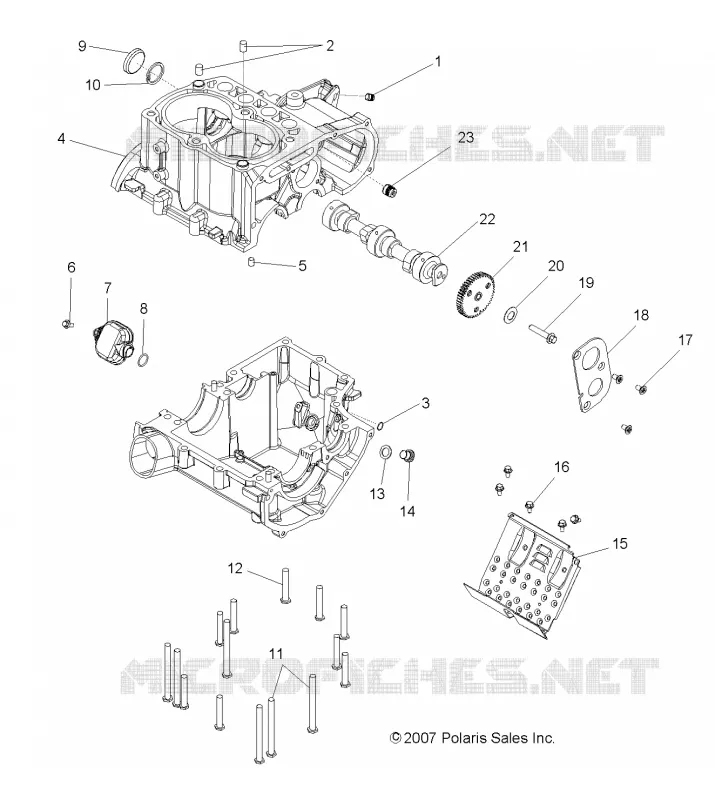

Find the detailed CRANKCASE POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
