1
Engine displacement
570
2
Year
2018
3
Trim
RZR 570 EPS
4
Parts Catalog
ENGINE, COOLING SYSTEM
5
Parts Diagram
Parts Catalog
CAM CHAIN AND SPROCKET
by
CRANKCASE
ENGINE, COOLING SYSTEM
12
12
13
14
15
15
15
16
17
18
19
20
21
21
21
21
21
21
21
22
23
24
25
26
27
28
28
29
29
30
31
32
33
34
35
36
37
38
39
21
41
1
HOSE CLAMP; 25-40 MM
7081192
$14,69 Unit Price incl. VAT
2
HOSE-RAD OUT;ENG IN
5414154
9999999
Not Available
3
HOSE CLAMP
7080474
$13,64 Unit Price incl. VAT
4
HOSE-90 D LWR RADIATOR
5414202
9999999
Not Available
5
HOSE CLAMP
7080003
$2,09 Unit Price incl. VAT
6
ASM-COOLANT TUBE
1241229
$120,74 Unit Price incl. VAT
7
HOSE; LOWER; FRONT
5414204
$83,99 Unit Price incl. VAT
8
HOSE-ENG OUT;RAD IN
5414155
9999999
Not Available
9
RADIATOR MOUNT BRACKET; LOWER; MT BLK
5254709458
Not Available
10
REMOTE HOSE FILL NECK
5414203
9999999
Not Available
11
CONNECTOR-TEE 1 1 1 BARBED
7052373
$19,94 Unit Price incl. VAT
12
SCREW M6 X 1.0; L-20MM
7516822
$4,19 Unit Price incl. VAT
13
FAN ASSEMBLY; 11 INCHES; ATV
2410413
$493,49 Unit Price incl. VAT
14
FAN SHROUD
5437845
9999999
Not Available
15
BOLT M6 X 1.0 X 20
7518529
$2,09 Unit Price incl. VAT
16
ROUTING CLIP
7081496
$9,44 Unit Price incl. VAT
17
COOLANT REMOTE FILLER; SMALL
5439079
$62,99 Unit Price incl. VAT
18
PRESSURE CAP
1240300
$73,49 Unit Price incl. VAT
19
CORE RADIATOR ASSEMBLY
1240444
1241480
$871,49 Unit Price incl. VAT
20
RADIATOR MOUNT BUSHING; LOWER
5410584
$10,49 Unit Price incl. VAT
21
SPRINGBAND CLAMP; 35/12
7080844
$19,94 Unit Price incl. VAT
22
U CLIP; 6.0 MM X 1.0 MM
7547366
$9,44 Unit Price incl. VAT
23
SCR-TFHFL-M6X1.0X25 ZOD
7519342
$3,14 Unit Price incl. VAT
24
RADIATOR HOSE; UPPER
5414201
$83,99 Unit Price incl. VAT
25
TIE CABLE; 14 IN
7080761
$5,24 Unit Price incl. VAT
26
FUEL LINE; 1/4 ID
84500031525
Not Available
27
FITTING 90 DEGREE
7052065
$13,64 Unit Price incl. VAT
28
SCREW
7512084
$2,09 Unit Price incl. VAT
29
FILLER NECK BRACKET
5253450
$52,49 Unit Price incl. VAT
30
ASM-SURGE TANK;38CM
2520837
9999999
Not Available
31
CAP PLUG9X(GRN) FLEX TEMP(10)
5433774
$10,49 Unit Price incl. VAT
32
GASKET
5810279
$4,19 Unit Price incl. VAT
33
OVERFLOW CAP
5430743
$10,49 Unit Price incl. VAT
34
RADIATOR MOUNT BRACKET; UPPER; MT BLK
5254710458
Not Available
35
BRKT-FUEL TANK MOUNT;CNTR;BLK
5254161329
Not Available
36
HOSE-BYPASS 1IN FORMED
5414162
$73,49 Unit Price incl. VAT
37
HOSE-BYPASS 3/8IN FORMED
5414163
9999999
Not Available
38
TEE CONNECTOR; 1 X 1 X 0.5
7052530
$10,49 Unit Price incl. VAT
39
FUEL LINE-40 CM
845012040
Not Available
40
SPRINGBAND CLAMP; 35/12
7080844
$19,94 Unit Price incl. VAT
41
CLAMP-HOSE 13/16 -1 1/2
7081174
$13,64 Unit Price incl. VAT

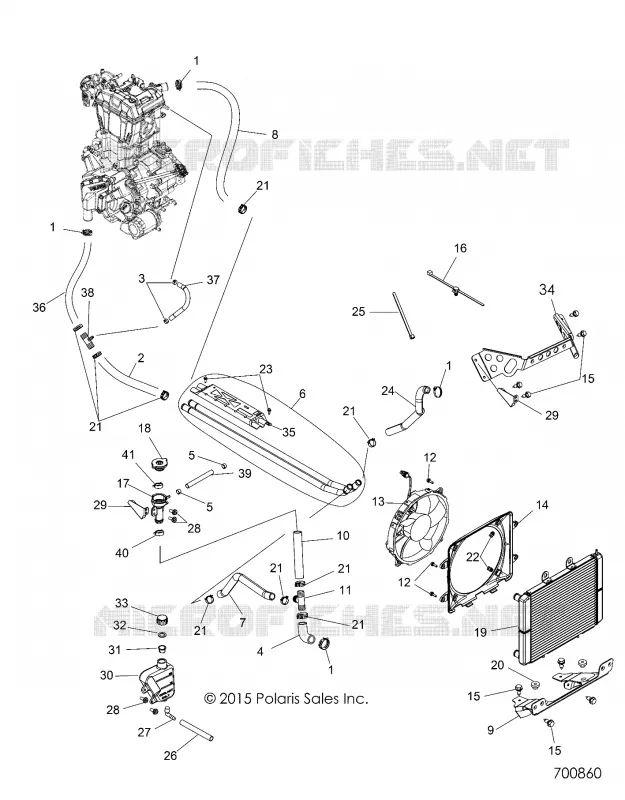

Find the detailed ENGINE, COOLING SYSTEM POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
