INSTRUMENT POD ADJUSTABLE TILT STEERING for POLARIS GEM - E2/E4/E6/ES/EL/ELXD from 2009

STEERING COLUMN UTILITY

STEERING COLUMN WITH LOCK

INSTRUMENT POD ADJUSTABLE TILT STEERING

1

Assy Wire Harness Steering Column

010601030

Not Available

2

Cowl Front

030501273

Not Available

3

Cowl RH

030501271

Not Available

4

Cowl LH

030501272

Not Available

5

Plug Screw Cover

061700471

Not Available

6

Bellows Steering Column

031202573

Not Available

7

Bearing Roller

**********

Not Available

8

Tie Cable

051000137

Not Available

9

Screw Phil Pan Head

052300166

Not Available

10

Screw Torx

052300544

Not Available

11

Screw Plastite

052300590

Not Available

12

Switch Drive Mode

060600415

Not Available

13

Switch Turn Signal

060600416

Not Available

14

Switch Rocker 2 Position Light Single Beam Headlight

060600417

Not Available

14

Switch Rocker 3 Position Light Dual Beam Headlight [Not Shown]

030601822

Not Available

15

Switch Trip

060600418

Not Available

16

Display LCD Driver

060600419

Not Available

17

Sleaving Harness Tilt Column

040600280

Not Available

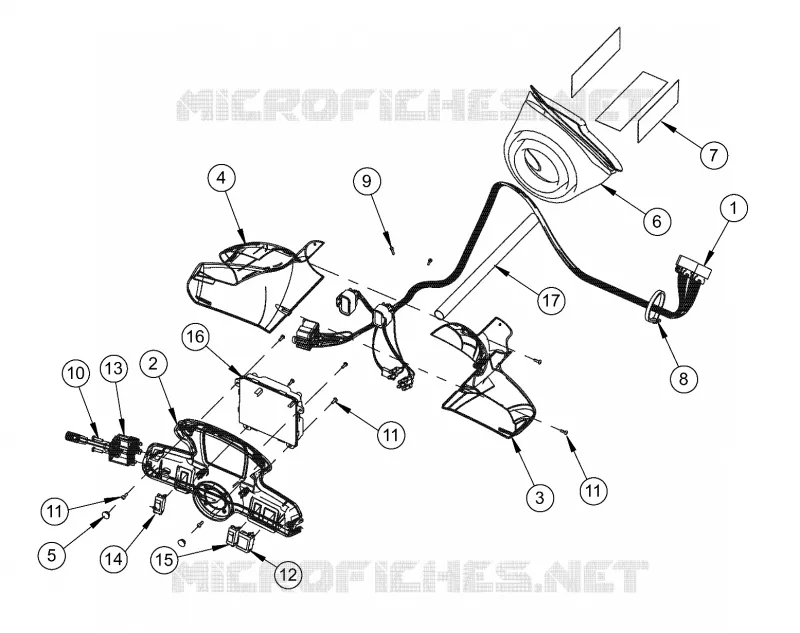

Find the detailed INSTRUMENT POD ADJUSTABLE TILT STEERING POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
