REAR SUSPENSION HUBS, CARRIER AND BRAKE DISC
5
Parts Diagram
Parts Catalog
FRONT SUSPENSION HUB, KNUCKLE AND BRAKE DISC
by
STEERING, STEERING TIE RODS
REAR SUSPENSION HUBS, CARRIER AND BRAKE DISC
17
17
1
BEARING CARRIER LEFT
5136689
5143607
$121,79 Unit Price incl. VAT
1
BEARING CARRIER RIGHT
5136690
5143608
$121,79 Unit Price incl. VAT
2
RETAINING RING
7710440
$18,89 Unit Price incl. VAT
3
SEALED BALL BEARING; 44 X 72 X 33.1
3514699
$73,49 Unit Price incl. VAT
4
COTTER PIN
7661404
$9,44 Unit Price incl. VAT
5
CASTLE NUT; 18 MM X 1.5 MM X 13 MM
7547406
$9,44 Unit Price incl. VAT
6
CONE WASHER
7555796
$14,69 Unit Price incl. VAT
7
HEX HEAD FLANGE BOLT 10MM X 1.5MM X140MM
7518467
$10,49 Unit Price incl. VAT
8
HEX HEAD FLANGE BOLT; 1.5 MM X 130 MM
7518675
$10,49 Unit Price incl. VAT
9
WHEEL HUB
5136946
$178,49 Unit Price incl. VAT
10
BRAKE DISC
5250205
$141,74 Unit Price incl. VAT
11
WHEEL STUD; M10 X 1.25 X 58
7518671
$3,14 Unit Price incl. VAT
12
HEX FLANGE NUT; 10 MM X 1.5 MM
7547313
$2,09 Unit Price incl. VAT
13
LOWER CONTROL ARM A ARM SHAFT
5136473
5145086
$68,24 Unit Price incl. VAT
14
PIVOT SHAFT; 104.9 MM
5137590
$16,79 Unit Price incl. VAT
15
CONTROL ARM BUSHING; LOWER; .75 IN
5437651
$12,59 Unit Price incl. VAT
16
STANDARD BUSHING; ORV
5439874
$4,19 Unit Price incl. VAT
16
HD BUSHING W/ SEAL ASSEMBLY(4)
1543367
$19,94 Unit Price incl. VAT
17
LUBRICATION FITTING
7080424
$9,44 Unit Price incl. VAT

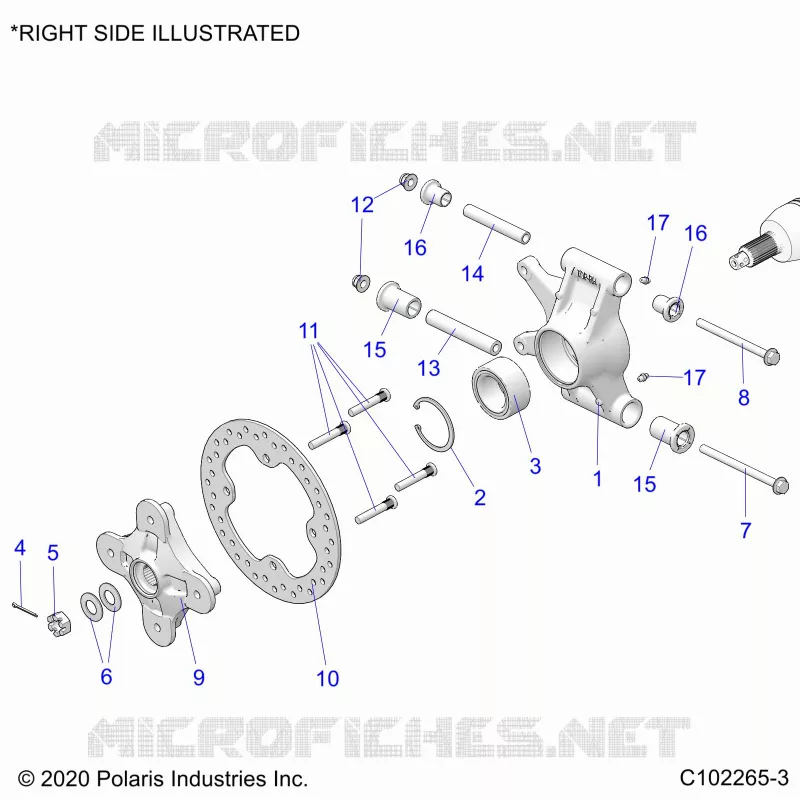

Find the detailed REAR SUSPENSION HUBS, CARRIER AND BRAKE DISC POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
