REVERSE SLT 750 B944170 (4925942594022A) for POLARIS SLT

TOOL KIT ASSEMBLY SLT 750 B944170 (4925942594021A)

CRANKCASE ASSEMBLY SLT 750 B944170 (4925942594023A)

CAP REV.LEVER CARIB.BLUE

5431696196

Not Available

SCREW

7512065

9999999

Not Available

WASHER; FLAT; S.S.(10)

7555839

9999999

Not Available

LOCK REV.LEVER

5431525

9999999

Not Available

SPRING REVERSE LOCK

7041341

9999999

Not Available

RING RETAINING

7710430

9999999

Not Available

LEVER REV CARIB.BLUE Substituted by 5431979-196

5431611196

Not Available

RIVET(10)

7621480

9999999

Not Available

GASKET; REV.BRKT.

5810998

9999999

Not Available

BRKT REV.LEVER

5431615

9999999

Not Available

O-RING

5410814

9999999

Not Available

SPRING DETENT REV.

7041313

9999999

Not Available

ARM REVERSE

5431657

9999999

Not Available

PIN; COTTER

7661010

$1,56 Unit Price incl. VAT

SCREW(10)

7512049

9999999

Not Available

PLATE CABLE

5240257

9999999

Not Available

CABLE;REVERSE;SLT

7080508

9999999

Not Available

NUT

7542528

9999999

Not Available

WASHER; LOCK;S.S.

7571625

9999999

Not Available

SEAL ROD STRG.

1860108

9999999

Not Available

RIVET (10)

7621478

9999999

Not Available

SHIELD REV.ACTUATOR

5431517

Not Available

RING RETAINING

7710431

9999999

Not Available

WASHER; FLAT; S.S.

7555837

9999999

Not Available

JOINT ACTUATOR

5431632

9999999

Not Available

SCREW; S.S.

7512063

9999999

Not Available

BUSHING ACTUATOR (10)

5020686

9999999

Not Available

RING-E RET.

7710427

9999999

Not Available

FLAT WASHER; SS

7555874

$4,19 Unit Price incl. VAT

BOLT; S.S.

7515361

9999999

Not Available

GATE REVERSE BLK.

5431614

Not Available

BOLT; S.S.(10)

7515368

9999999

Not Available

COLLAR

5020683

9999999

Not Available

SPACER REVERSE GATE

5431506

Not Available

BRG STRG.NOZZLE

5431518

9999999

Not Available

COLLAR

5130938

9999999

Not Available

SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]

*******

Not Available

SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]

*******

Not Available

BUSHING ACTUATOR SHORT

5020740

9999999

Not Available

ACTUATOR REV.GATE

5240139

9999999

Not Available

NUT HEX S.S.

7541931

$9,44 Unit Price incl. VAT

COVER; STEERING

1860109

9999999

Not Available

WASHER

1860103

9999999

Not Available

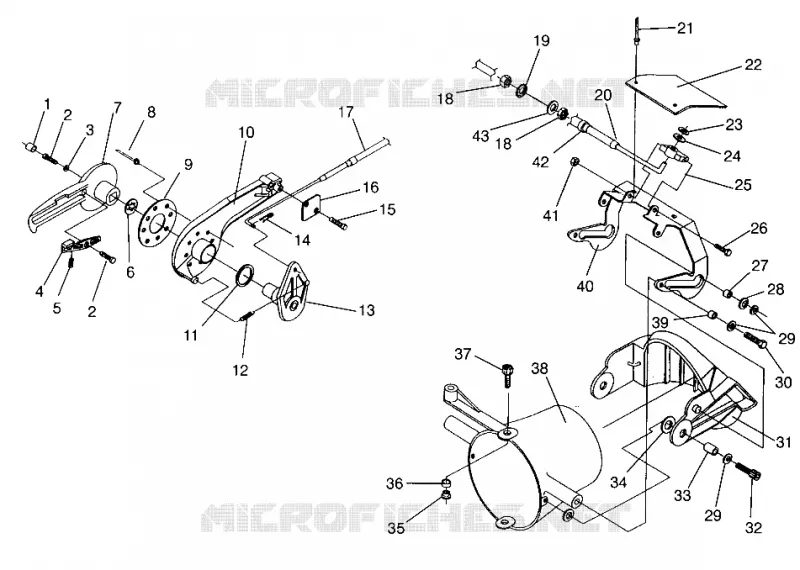

Find the detailed REVERSE SLT 750 B944170 (4925942594022A) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
