CHASSIS, BULKHEAD ASM. for POLARIS 800 RUSH / ES from 2013

CHASSIS, BULKHEAD ASM.

-

LORD 406 REPAIR KIT; 50 ML

2204171

2830614

$517,64 Unit Price incl. VAT

-

MIXING NOZZLES KIT

2204172

2830615

$14,69 Unit Price incl. VAT

-

ADJESIVE CARTRIDGE KIT

2204400

672204400

Not Available

1

SCREW

7516732

$3,14 Unit Price incl. VAT

2

BRKT-PIPE/CHASSIS

5252680

$10,49 Unit Price incl. VAT

3

CLIP WITH STUD ASSEMBLY; RIGHT; 8 MM

1018520

9999999

Not Available

4

SCR-TXTH-M8X1.25X25 8.8 ZODP30

7519070

$11,54 Unit Price incl. VAT

5

CL8.8 OLV-D

7518906

$6,29 Unit Price incl. VAT

6

RESONATOR MOUNT ASSEMBLY

1017804

$73,49 Unit Price incl. VAT

7

BRACE LOWER RIGHT MACHINED

5136332

9999999

Not Available

8

NYLOC OLIVE NUT; 8 MM X 1.25 MM

7547332

$7,34 Unit Price incl. VAT

9

SCR-M10X1.5X25-8.8 HFS ZOD

7518934

$7,34 Unit Price incl. VAT

10

BULKHEAD FLOOR

5251891

9999999

Not Available

11

WELD-UCA CROSS TUBE

1016370

9999999

Not Available

12

RIVET

7661637

$2,09 Unit Price incl. VAT

13

BRACE LOWER LEFT ASSEMBLY

1017942

$125,99 Unit Price incl. VAT

14

CLIP ASSEMBLY W/ 88 MM STUD; LEFT

1018519

9999999

Not Available

15

WHEEL STUD; 8 MM X 1.25 MM X 48

7519204

$36,74 Unit Price incl. VAT

16

HEX FLANGE SCREW; 8 MM X 1.25 MM X 25 MM

7519243

$7,34 Unit Price incl. VAT

17

SCR-TXTH M8X1.25X35 8.8ZOD P80

7519049

$13,64 Unit Price incl. VAT

18

HEX FLANGE SCREW; 8 MM X 1.25 MM X 35 MM

7519052

$3,14 Unit Price incl. VAT

19

SCR-M8X1.25X30 8.8 TR/TX ZOD

7518953

$3,14 Unit Price incl. VAT

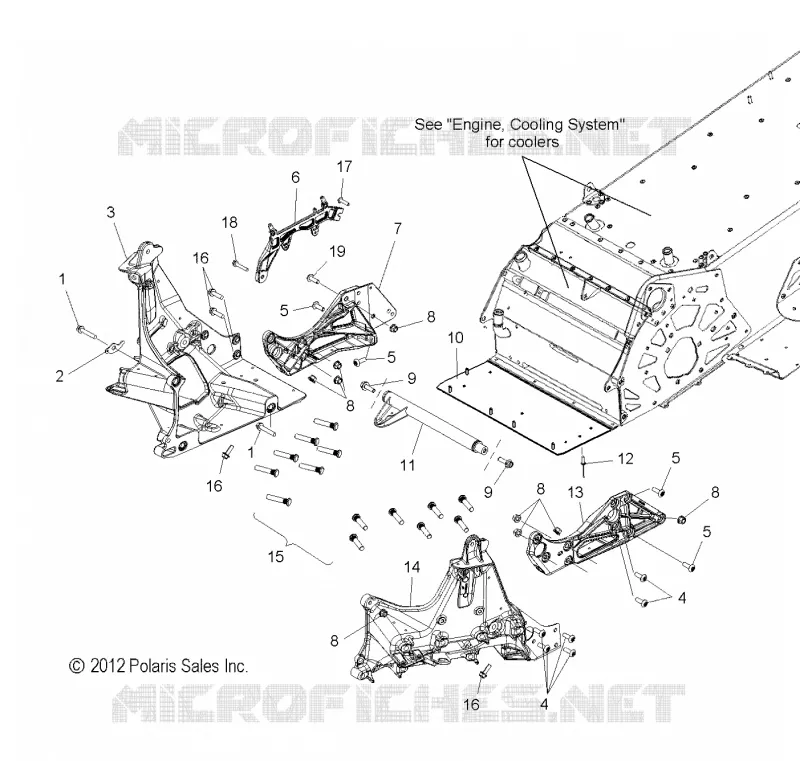

Find the detailed CHASSIS, BULKHEAD ASM. POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
