Parts Catalog
FRONT SUSPENSION CONTROL ARMS
5
Parts Diagram
Parts Catalog
ENGINE, THROTTLE PEDAL
by
REAR SUSPENSION CONTROL ARMS
FRONT SUSPENSION CONTROL ARMS
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
1
CONTROL ARM WELD; UPPER; FRONT; LEFT
1021727293
Not Available
2
CONTROL ARM WELD FRT UPR RIGHT INDY RED
1021728293
Not Available
3
CONTROL ARM FRT LWR LEFT SIDE INDY RED
1021480293
Not Available
4
CONTROL ARM FRT LWR RIGHT SIDE INDY RED
1021481293
Not Available
5
CV SHIELD; FRONT; GLOSS BLACK
5438641070
Not Available
6
SCREW
7512084
$2,09 Unit Price incl. VAT
7
SCREW M10 X 1.25-6G
7519043
$17,84 Unit Price incl. VAT
8
HEX FLANGE SCREW 10 MM X 1.25 MM X 55 MM
7519285
$4,19 Unit Price incl. VAT
9
NYLOC NUT
7547333
$3,14 Unit Price incl. VAT
10
WASHER
7556153
$3,66 Unit Price incl. VAT
11
BALL-JOINT HARDENED
7081992
7082892
$89,24 Unit Price incl. VAT
12
FLANGE SCREW
7519306
$10,49 Unit Price incl. VAT
13
RETAINING RING
7710716
$15,74 Unit Price incl. VAT
14
SEALED PIVOT CAP ASSEMBLY; 10 MM
1543611
$10,49 Unit Price incl. VAT
15
SEAL PIVOT CAP ASSEMBLY; 10 MM
1543735
$26,24 Unit Price incl. VAT
16
SHORT PIVOT SHAFT
5139966
5144658
$10,49 Unit Price incl. VAT
17
STANDARD SUSPENSION BUSHING; 10 MM
5452233
$5,24 Unit Price incl. VAT
18
SPIRAL RING; 28 MM; STEEL
7710845
$6,81 Unit Price incl. VAT

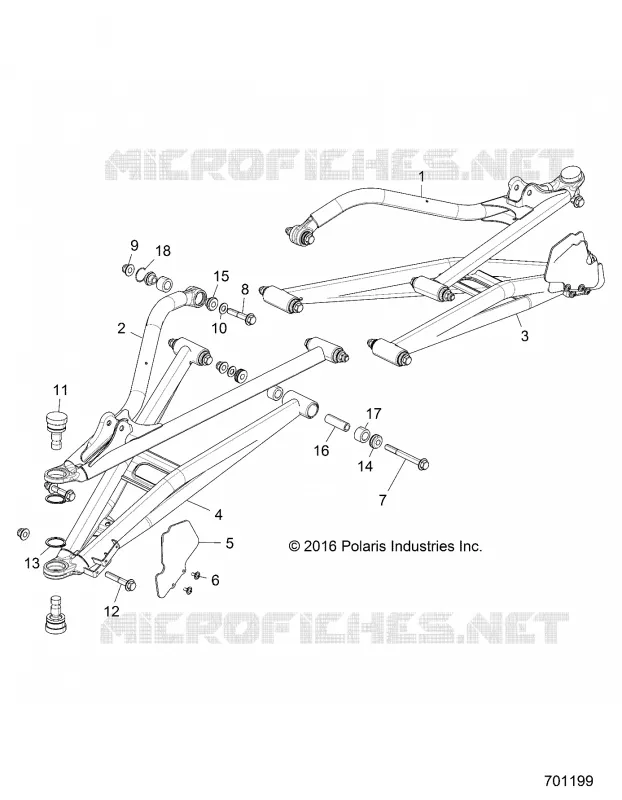

Find the detailed FRONT SUSPENSION CONTROL ARMS POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.
