ENGINE, COOLING SYSTEM for POLARIS RZR XP 1000 TRAILS & ROCKS from 2021

CAM CHAIN AND TENSIONER

ENGINE, CRANKCASE AND CRANKSHAFT

ENGINE, COOLING SYSTEM

2

CAP

1240694

$73,49 Unit Price incl. VAT

3

CORE RADIATOR ASSEMBLY

1240745

$892,49 Unit Price incl. VAT

4

FAN ASSEMBLY

2412447

$472,49 Unit Price incl. VAT

5

BOLT 6 MM X 15 MM

7519585

$17,84 Unit Price incl. VAT

6

OVERFLOW CAP

5430743

$10,49 Unit Price incl. VAT

7

CAP PLUG9X(GRN) FLEX TEMP(10)

5433774

$10,49 Unit Price incl. VAT

8

SURGE TANK

5439202

$178,49 Unit Price incl. VAT

9

GASKET

5810279

$4,19 Unit Price incl. VAT

10

FUEL LINE; 95 CM

845000395

Not Available

11

GROMMET

7052028

$11,54 Unit Price incl. VAT

12

COOLANT TUBE; 1 IN

5141612

$104,99 Unit Price incl. VAT

13

COOLANT TUBE BRACKET; BLACK

5259433329

Not Available

14

COOLANT TUBE BRACKET; BLACK

5260766329

Not Available

15

COOLANT TUBE BRACKET

5451221

$16,79 Unit Price incl. VAT

16

SCR-M6X1X40 TR/TX-M

7519001

$7,34 Unit Price incl. VAT

17

RADIATOR HOSE; UPPER

5414528

$125,99 Unit Price incl. VAT

18

ENGINE OUTLET HOSE; REAR

5414530

$141,74 Unit Price incl. VAT

19

HOSE-LWR RAD LONG

5414532

$89,24 Unit Price incl. VAT

20

ENGINE INLET HOSE; REAR

5414976

$83,99 Unit Price incl. VAT

21

SPRINGBAND CLAMP; 35/12

7080844

$19,94 Unit Price incl. VAT

22

BRACKET MOUNT; UPPER; BLACK

5256879329

Not Available

23

HOSE CLAMP; 25-40 MM

7081192

$14,69 Unit Price incl. VAT

24

BOLT M6 X 1.0 X 20

7518529

$2,09 Unit Price incl. VAT

25

SCREW #14 X 1 HI/LO

7518158

$9,44 Unit Price incl. VAT

26

COOLANT TUBE; 1 IN

5141611

$89,24 Unit Price incl. VAT

27

SCREW

7512026

$2,09 Unit Price incl. VAT

28

HEX FLANGE BOLT; 8 MM X 1.25 MM X 20 MM

7518555

$4,19 Unit Price incl. VAT

29

TUFLOK RIVET

7661855

$2,09 Unit Price incl. VAT

30

BUMPER MOUNT BRACKET; FRONT; LEFT; BLACK

5264780329

Not Available

31

BUMPER MOUNT BRACKET FRT UPR RIGHT BLACK

5264781329

Not Available

32

RADIATOR SHROUD; GLOSS BLACK

5455487070

Not Available

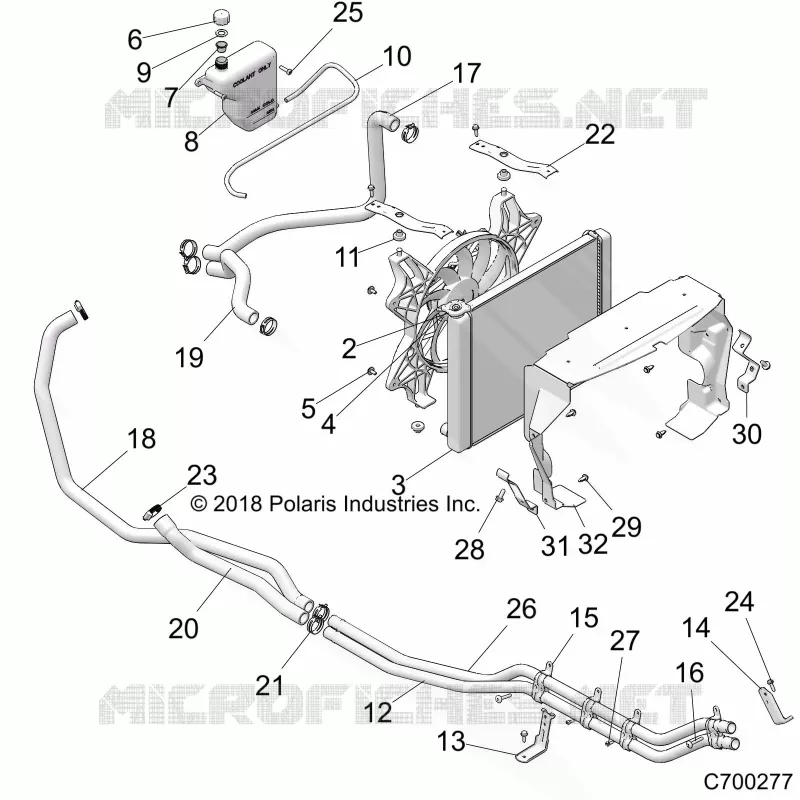

Find the detailed ENGINE, COOLING SYSTEM POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
