1
Engine displacement
500
2
Year
2001
3
Trim
500 INDY
4
Parts Catalog
COOLING SYSTEM
5
Parts Diagram
Parts Catalog
CONSOLE
by
CHAINCASE
COOLING SYSTEM
1
1
2
3
4
4
5
5
5
5
5
5
5
5
6
6
7
7
8
9
10
11
12
13
14
15
16
17
18
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
1
CLAMP HOSE 1 IN NYLON
7080653
$9,44 Unit Price incl. VAT
2
POP RIVET(10)
7621425
$2,09 Unit Price incl. VAT
3
HOSE STRIP COOLER/ENG OUT
5411905
9999999
Not Available
4
CLAMP SPRINGBAND 29/12 BLK
7080842
$13,64 Unit Price incl. VAT
5
SPRINGBAND CLAMP; 35/12
7080844
$19,94 Unit Price incl. VAT
6
WEAR STRIPCOOLER
1240075
9999999
Not Available
7
RIVET 3/16 X .402
7621432
$2,09 Unit Price incl. VAT
8
WEAR STRIP CROSSOVER HOSE
5411854
9999999
Not Available
9
PROTECTORHOSE
5244284
9999999
Not Available
10
RIVET INTERLOCK(50)
7661639
7661130
$2,09 Unit Price incl. VAT
11
RIVET
7661637
$2,09 Unit Price incl. VAT
12
WELD-CENTER COOLER
2520224
9999999
Not Available
13
HOSE-BOTTLE/ENGINE
5411991
9999999
Not Available
14
COOLANT BOTTLEWELD
2520195
2520598
$99,74 Unit Price incl. VAT
15
PRESSURE CAP; 13 LB
2511270
9999999
Not Available
16
FUEL LINE; 1/4 ID
84500031525
Not Available
17
HOSE-CLOSE OFF/BOTTLE
5411992
9999999
Not Available
18
HOSE CENTER/STRIP COOLER
5411853
9999999
Not Available

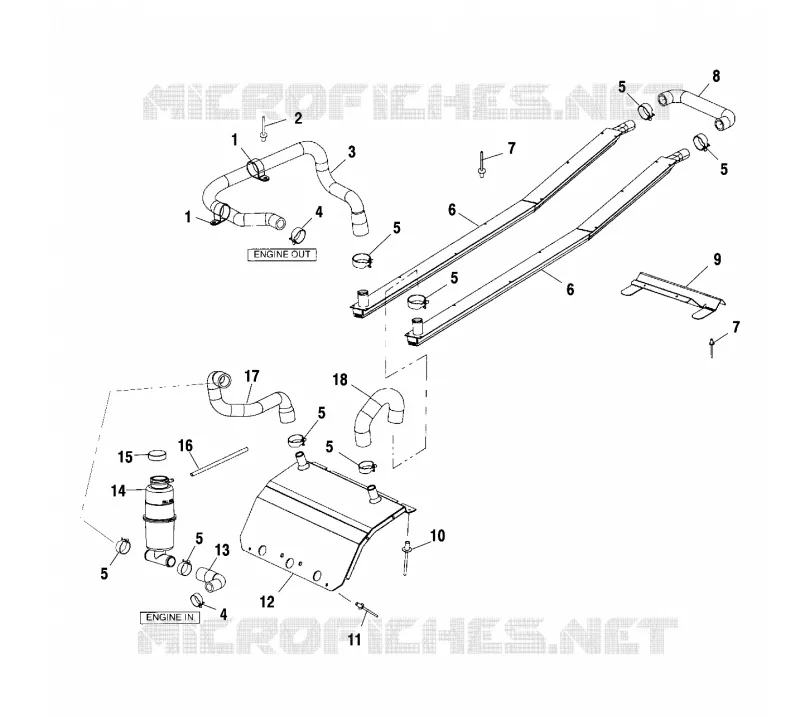

Find the detailed COOLING SYSTEM POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
