Parts Catalog
CHASSIS, SEAT RISER
5
Parts Diagram
Parts Catalog
CHASSIS, RACK ASM. AND SNOW FLAP
by
LOWER STEERING
CHASSIS, SEAT RISER
1
2
3
3
3
3
4
5
6
7
8
9
1
ASM-SEAT RISER;WTRAK;BLK
1015633067
Not Available
2
RETAINER-TANK REAR
5251674
$52,49 Unit Price incl. VAT
3
RIVET
7661637
$2,09 Unit Price incl. VAT
4
CLIP HALF(10)
7080393
$6,29 Unit Price incl. VAT
5
FOAM-.50 X.50 W/PSA;82 CM
552176982
Not Available
6
SEAL SHORT SEAT RISER
5410563
9999999
Not Available
7
SEAL SEAT RISER
5410562
9999999
Not Available
8
PROTECTOR-RISER
5413186
9999999
Not Available
9
RIVET 3/16 X .402
7621432
$2,09 Unit Price incl. VAT

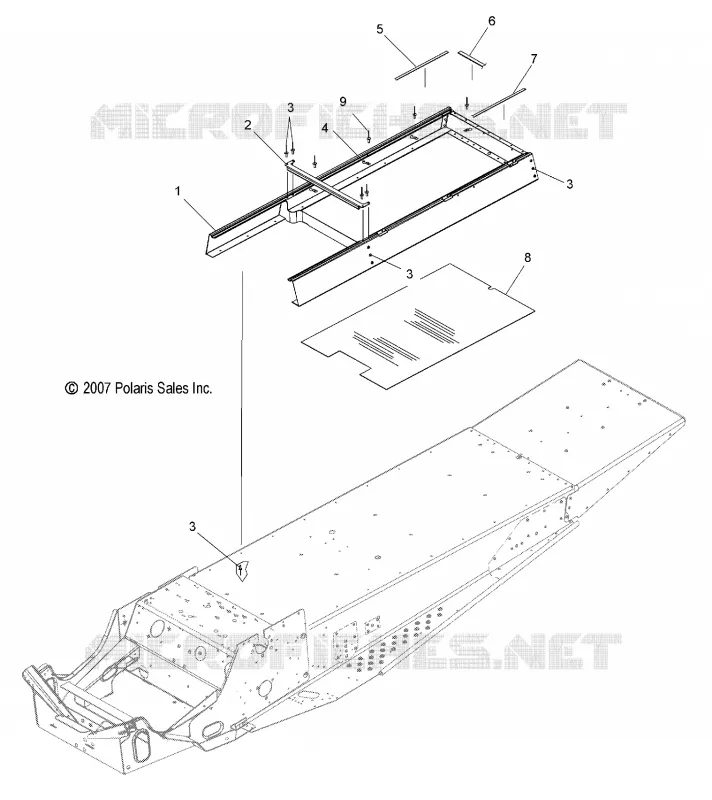

Find the detailed CHASSIS, SEAT RISER POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
