1
Engine displacement
autre
2
Year
1992
3
Trim
CLASSIC - 0920865
4
Parts Catalog
ENGINE MOUNTING 500 AND 500 CLASSIC (4921252125037A)
5
Parts Diagram
Parts Catalog
DRIVEN CLUTCH 500 AND 500 CLASSIC (4921252125036A)
by
OIL TANK/AIR BOX 500 AND 500 CLASSIC (4921252125039A)
ENGINE MOUNTING 500 AND 500 CLASSIC (4921252125037A)
1
ENG.EC50PL-04 [No Longer Available]
1211483
Not Available
1
ENG. EC50PL-05 [No Longer Available]
1211484
Not Available
2
HANDLE-RECOIL
5430520
Not Available
3
CABLE; THROTTLE
7080373
9999999
Not Available
4
O-RING
5410507
$2,09 Unit Price incl. VAT
5
SPACER
5020513
$60,89 Unit Price incl. VAT
6
VENT LINE;1/8;BULK
8360009
8360009-600
$83,99 Unit Price incl. VAT
7
MUFFLER (500) Substituted by 1260568-029
1260568
Not Available
8
SPRING; EXHAUST
7042031
7041687
$12,59 Unit Price incl. VAT
9
VIBRATION DAMPENER
5410467
9999999
Not Available
10
NUT
3080285
9999999
Not Available
11
LOCK WASHER
3080530
9999999
Not Available
12
MANIFOLD
1260501029
Not Available
13
GASKET EXHAUST
3082510
9999999
Not Available
14
SUPPORT MUFFLER FRONT [No Longer Available]
5222575
Not Available
15
RIVET
7621429
$2,09 Unit Price incl. VAT
16
HAT; EXHAUST
5431058
9999999
Not Available
17
BOOT; EXHAUST
5410502
9999999
Not Available
18
WASHER 13/64X1/2X18GA FL-Y (10
7558212
$1,56 Unit Price incl. VAT
19
SCREW
7512533
9999999
Not Available
20
WASHER
7555740
$3,14 Unit Price incl. VAT
21
MOUNT ENGINE
5410390
9999999
Not Available
22
PLATE ENG.MT.
5222169
9999999
Not Available
23
MOUNT MOTOR BLK.
1011587067
Not Available
24
NUT FLEXLOCK
7542503
9999999
Not Available
25
FLEXLOC NUT
7542411
$6,29 Unit Price incl. VAT
26
WASHER
7555720
7555806
$1,56 Unit Price incl. VAT
27
BRKTREAR MUFFLER
5222153067
Not Available
28
CARRIAGE BOLT
7512193
$4,19 Unit Price incl. VAT
29
SPRING LOCK WASHER
7553101
$7,34 Unit Price incl. VAT
30
BOLT
7512539
$7,34 Unit Price incl. VAT
31
NUT SPEED
7670021
$10,49 Unit Price incl. VAT
32
BOLT-CARRIAGE
7512263
9999999
Not Available
33
BOLT
7512457
$7,34 Unit Price incl. VAT
34
MOUNT
3110022
9999999
Not Available
36
BUSHING
5430261
$13,64 Unit Price incl. VAT
37
WASHER
5210748
$7,34 Unit Price incl. VAT
38
WASHER LOCK
7575202
$9,44 Unit Price incl. VAT
39
BOLT
7512565
9999999
Not Available
40
FUEL FILTER
2530008
9999999
Not Available
41
FUEL LINE3/16ID-2FT.
5521133
9999999
Not Available
42
FUEL SHUT OFF VALVE
7052039
9999999
Not Available
43
NUT JAM
7542432
$7,34 Unit Price incl. VAT
44
RIVET
7621418
$2,09 Unit Price incl. VAT
45
PRESSURE CAP
2511155
9999999
Not Available
46
CLIP
7080278
9999999
Not Available
47
SPRING
7042029
$10,49 Unit Price incl. VAT
48
NYLOK NUT
7542122
$2,09 Unit Price incl. VAT
49
SPARKPLUG
3070166
$7,34 Unit Price incl. VAT
50
BRACKET TORQUE LIMITER
1011741067
Not Available
51
RIVET
7661625
7661638
$2,09 Unit Price incl. VAT
52
STOP
3110023
9999999
Not Available
53
CLAMP-HOSE
7080134
9999999
Not Available
54
FUEL LINE-50FT.PKG.
2870563
8450003-1525
$136,49 Unit Price incl. VAT
55
HOSE CLAMP
7080307
$1,56 Unit Price incl. VAT

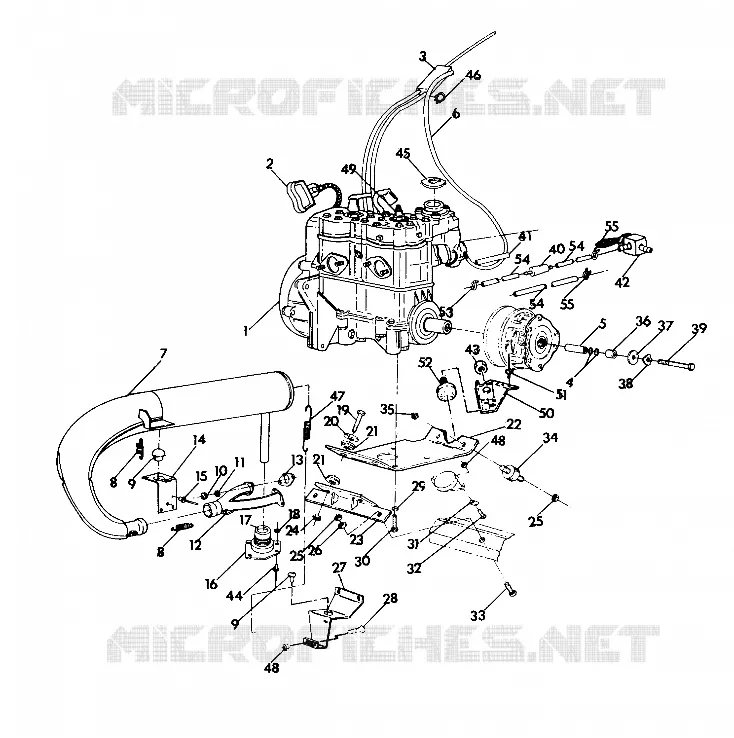

Find the detailed ENGINE MOUNTING 500 AND 500 CLASSIC (4921252125037A) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
