STEERING, SKI ASM. for POLARIS PATRIOT BOOST RMK KHAOS SLASH 155 from 2024

STEERING, SKI ASM.

1

TOE-SKI BLK

5456439070

Not Available

1

TOE-SKI PLUM CRAZY

5456439784

Not Available

1

TOE-SKI ORANGE BURST

5456439647

Not Available

1

TOE-SKI LIFTED LIME

5456439801

Not Available

1

TOE-SKI RADIANT GREEN NM

5456439886

Not Available

2

NYLOC OLIVE NUT; 8 MM X 1.25 MM

7547332

$7,34 Unit Price incl. VAT

3

NUT-HEX-M6X1.0 ZOD NYL

7547650

$7,34 Unit Price incl. VAT

4

WASHER .406 X 1.25 X .125

7556130

$11,54 Unit Price incl. VAT

5

NUT-M10X1.5 HFN NYLOC ZOD

7547423

$7,34 Unit Price incl. VAT

6

PLASTIC SKI BUSHING

5136908

$27,29 Unit Price incl. VAT

7

SPACER-25.40 ODX16.26 IDX10.65

5137847

$10,49 Unit Price incl. VAT

8

RMK RUBBER SKI STOP

5415230

$26,24 Unit Price incl. VAT

9

RMK SKI; INCLUDES BUSHINGS; GLOSS BLACK

1823660070

Not Available

10

BOLT 10 MM X 1.5 MM X 155 MM

7519098

$23,09 Unit Price incl. VAT

11

WSHR-FLAT M6.35X14.30X1.2 ZOD

7556737

$4,19 Unit Price incl. VAT

12

SCR-HXFL-M6X1.0X105 8.8 ZOD

7520233

$11,54 Unit Price incl. VAT

13

CARBIDE SKAG 3 60DEG.

2875723

$110,24 Unit Price incl. VAT

14

WASHER; FLAT

7555843

7558302

$3,14 Unit Price incl. VAT

15

NYLOK NUT

7542324

$1,56 Unit Price incl. VAT

16

CL8.8 OLV-D

7518906

$6,29 Unit Price incl. VAT

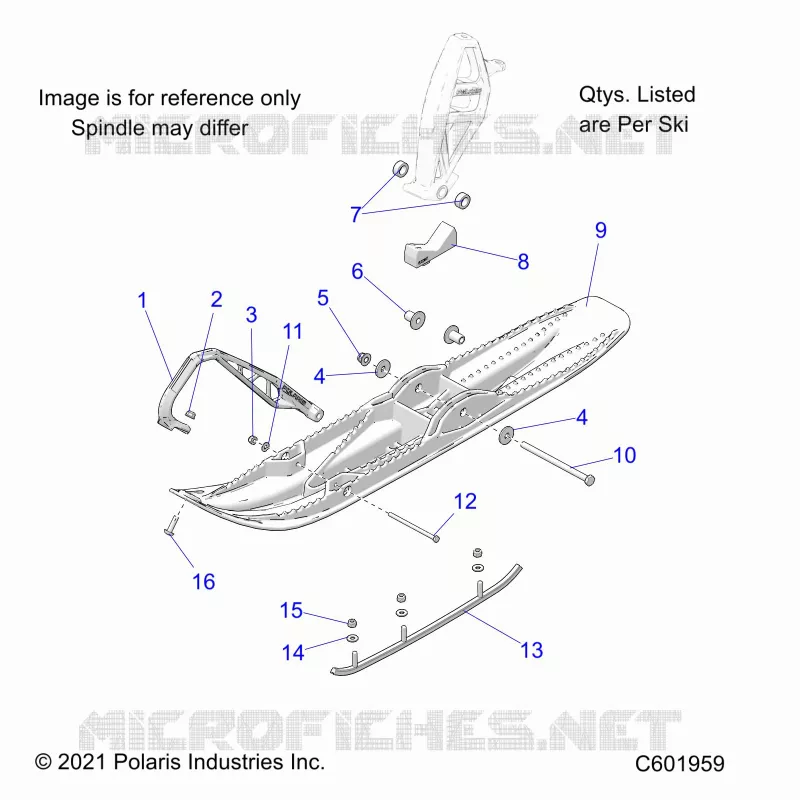

Find the detailed STEERING, SKI ASM. POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
