FRONT WISHBONES for POLARIS 550 RMK EVO 144 from 2021

FRONT WISHBONES

1

PIVOT SHAFT

5141028

$62,99 Unit Price incl. VAT

2

PIVOT BUSHING

5437539

$4,19 Unit Price incl. VAT

3

WAVE WASHER

7571605

$11,54 Unit Price incl. VAT

4

NYLOC OLIVE NUT; 8 MM X 1.25 MM

7547332

$7,34 Unit Price incl. VAT

5

WELD-UCA LH GBLK

1825022067

Not Available

5

WELD-UCA RH GBLK

1825023067

Not Available

6

SOCKET HEAD SCREW 10 MM X 1.5 MM X 45 MM

7519246

$7,34 Unit Price incl. VAT

7

ROD END; M12 X 2.812 30 DEG

7061178

9999999

Not Available

8

NUT-M10X1.5 HFN NYLOC ZOD

7547423

$7,34 Unit Price incl. VAT

9

NUT-HXFL M12X1.5 ZOD

7547490

$7,34 Unit Price incl. VAT

10

NUT-HEX-M12X1.5 8 ZOD NYL

7547464

$6,29 Unit Price incl. VAT

11

SPINDLE ASSEMBLY; LEFT

1823908

$388,49 Unit Price incl. VAT

11

SPINDLE ASSEMBLY; RIGHT

1823909

$388,49 Unit Price incl. VAT

12

BUSHING 15.88 X 10.13 X 76.20

5136910

$13,64 Unit Price incl. VAT

13

SKI PIVOT BUSHING

5133983

$20,99 Unit Price incl. VAT

14

SCR-M10X1.5X75 10.9 HCS ZOD

7519015

$10,49 Unit Price incl. VAT

15

FLAT WASHER

7555806

$1,56 Unit Price incl. VAT

16

SPHERICAL BEARING KIT; 10 MM

2204229

$54,59 Unit Price incl. VAT

17

RING-RETAINING 1.25 ID HSNG

7710539

$4,19 Unit Price incl. VAT

18

WELD-LCA LH GBLK

1825020067

Not Available

18

WELD-LCA RH GBLK

1825021067

Not Available

19

HEX FLANGE SCREW; 10 MM X 1.5 MM X 95 MM

7518917

$9,44 Unit Price incl. VAT

20

SHAFT-PIVOT LCA FRT

5141029

$62,99 Unit Price incl. VAT

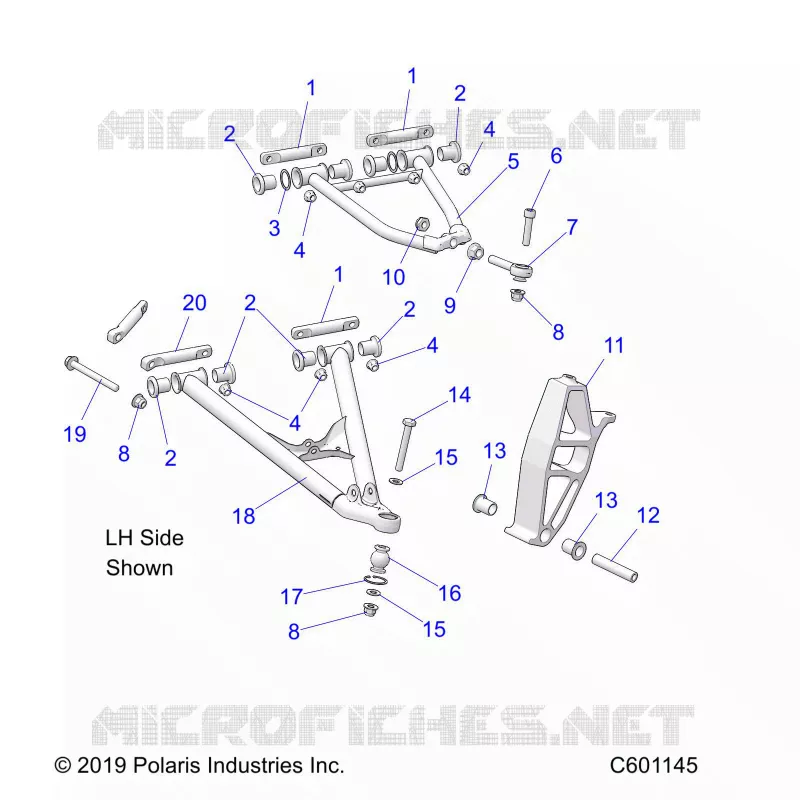

Find the detailed FRONT WISHBONES POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
