Engine displacement
330
2
Year
2006
3
Trim
MAGNUM 330 4X4 - A06CD32AA
4
Parts Catalog
RACK, FRONT AND BUMPER MOUNTING
5
Parts Diagram
Parts Catalog
REAR RACK MOUNTING
by
CONTROLS
RACK, FRONT AND BUMPER MOUNTING
1
1
2
2
2
2
3
4
4
5
5
5
5
5
6
6
6
6
7
7
7
7
7
7
8
8
8
9
10
11
12
13
13
14
14
1
BOLT
7512232
$2,09 Unit Price incl. VAT
2
SUPPORT RACK WELD; FRONT; LEFT; GS BLK
1013744067
Not Available
2
SUPPORT RACK WELD; FRONT; RIGHT; GS BLK
1013746067
Not Available
3
PLUG; FRAME
5810467
9999999
Not Available
4
BOLT-5/16-18X1-3/4 HXFLNG GR5
7518341
$9,44 Unit Price incl. VAT
5
SCREW
7515399
9999999
Not Available
6
RACK MOUNT WELD; LEFT; GS BLK
1014099067
Not Available
6
RACK MOUNT WELD; RIGHT; GS BLK
1014101067
Not Available
7
ASM-HEADLIGHT 30/30W SIDE MOUN
2431012
9999999
Not Available
7
HIGH LOW 30W BULB
4030061
9999999
Not Available
7
HEADLIGHT ASSEMBLY LEFT 30/30W
2431011
9999999
Not Available
8
FLANGE NUT
7542343
$9,44 Unit Price incl. VAT
9
FRONT BUMPER; GEN IV; GLOSS BLACK
5432155070
Not Available
10
BOLT-5/16-18X2.25 FLG TAP/R-Y
7517977
9999999
Not Available
11
WELD-BRUSH GUARD;BLK
1013772067
Not Available
12
TUFLOK RIVET
7661855
$2,09 Unit Price incl. VAT
13
SHIELD-RADIATOR SIDE RH
5433924
9999999
Not Available
13
RADIATOR SHIELD; LEFT
5433923
9999999
Not Available
14
FRAME EXTENSION RIGHT GS BLK
5244730067
Not Available
14
FRAME EXTENSION LEFT GS BLK
5244729067
Not Available

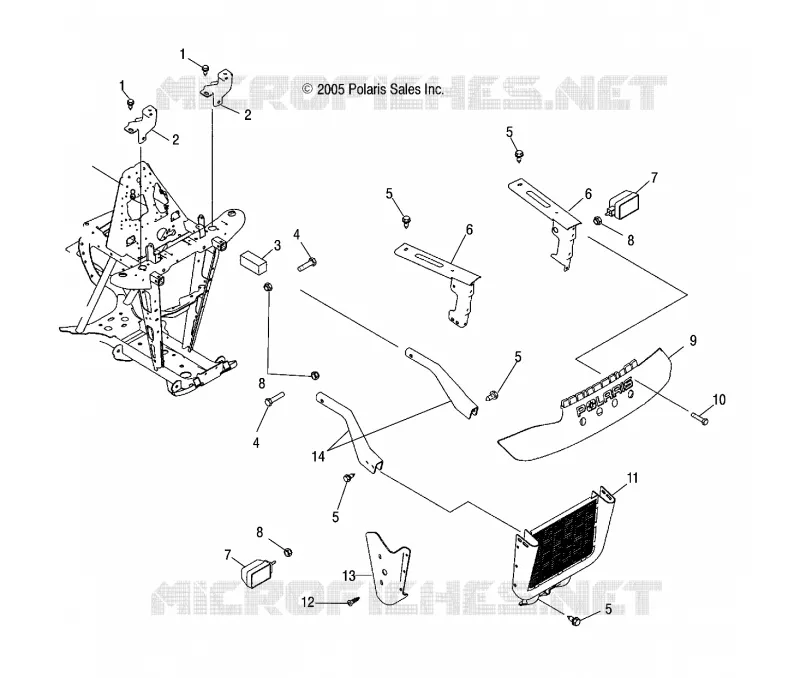

Find the detailed RACK, FRONT AND BUMPER MOUNTING POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
