1
Engine displacement
900
2
Year
2016
3
Trim
RZR 4 900
4
Parts Catalog
CHASSIS, MAIN FRAME AND SKID PLATE
5
Parts Diagram
Parts Catalog
CHASSIS, CAB
by
DRIVE TRAIN, CLUTCH COVER AND DUCTING
CHASSIS, MAIN FRAME AND SKID PLATE
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
1
HEX FLANGE BOLT; 8 MM X 1.25 MM X 20 MM
7518555
$4,19 Unit Price incl. VAT
2
BRKT-DIN MNT;BLK
5257304329
Not Available
3
BOLT M6 X 1.0 X 20
7518529
$2,09 Unit Price incl. VAT
4
MULTI PASSENGER SEAT BASE WELD; BLACK
1020572329
Not Available
5
SEAT SUPPORT BRACKET; FRONT; BLACK
5258097329
Not Available
6
HEX FLANGE SCREW 10 MM X 1.25 MM X 55 MM
7519285
$4,19 Unit Price incl. VAT
7
NYLOC NUT
7547333
$3,14 Unit Price incl. VAT
8
SCR-M10X1.5X25-8.8 HFS ZOD
7518934
$7,34 Unit Price incl. VAT
9
BOLT
7519650
$7,34 Unit Price incl. VAT
10
SEAT BASE WELD; REAR; BLACK
1019777329
Not Available
11
HEX FLANGE BOLT; 10 MM X 1.5 MM X 55 MM
7518474
$9,44 Unit Price incl. VAT
12
BOX PLUNGER LATCH
5139009
$25,19 Unit Price incl. VAT
13
NUT-M6X1.0 FLG-NYLOC-OLIVE D
7547339
$2,09 Unit Price incl. VAT
14
SKID PLATE
5451895070
Not Available
15
SKID PLATE; GLOSS BLACK
5439771070
Not Available
16
PLATE-SKID REAR GLOSS BLACK
5450706070
Not Available
17
SKID PLATE WASHER
7556065
$8,39 Unit Price incl. VAT
18
ASM-TUBE TOP FRAME E-COAT
1021506329
Not Available
19
TIEDOWN FRONT LH M.BLK
5259103458
Not Available
20
TIEDOWN FRONT RH M.BLK
5259104458
Not Available
21
MOUNT COIL E-COAT
5259105329
Not Available
22
SCREW
7517281
$13,64 Unit Price incl. VAT
23
NYLOC OLIVE NUT; 8 MM X 1.25 MM
7547332
$7,34 Unit Price incl. VAT
24
MOUNT WELD; BODY; MATTE BLACK
1020506458
Not Available
25
FACIA BRACKET
5259106
$31,49 Unit Price incl. VAT
26
U-TYPE NUT; M6-1.0
7547674
$2,09 Unit Price incl. VAT
27
HEX FLANGE SCREW 10 MM X 1.25 MM X 40 MM
7519332
$10,49 Unit Price incl. VAT
28
SUSPENSION MOUNT BRACKET; FRONT; MT BLK
5259449458
Not Available
29
DASH BRACKET; BLACK
1020984329
Not Available
30
MAIN FRAME WELD; FRONT; MATTE BLACK
1021322458
Not Available
31
MAIN FRAME WELD REAR MATTE BLCAK
1021627458
Not Available

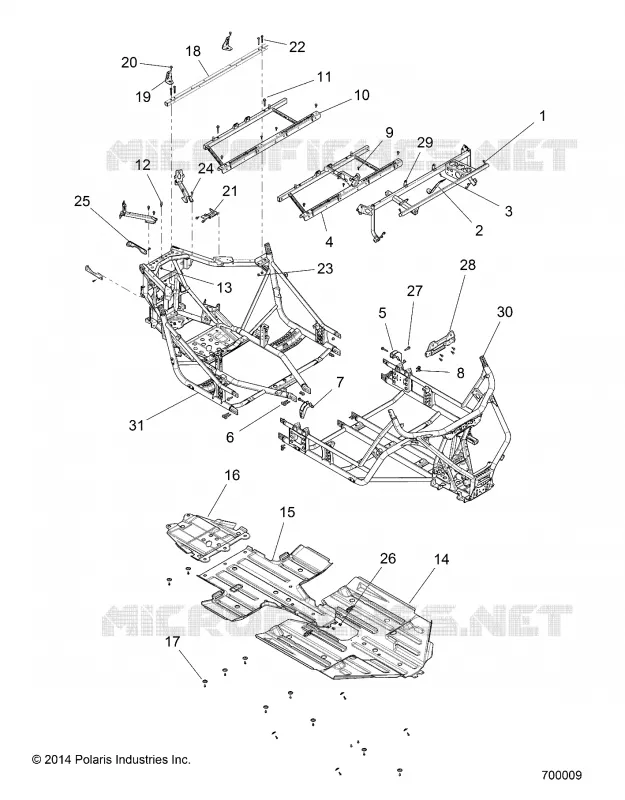

Find the detailed CHASSIS, MAIN FRAME AND SKID PLATE POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
