1
Engine displacement
900
2
Year
2013
3
Trim
RZR 4 XP JAGGED X - R13XT9EAL
4
Parts Catalog
CYLINDER AND HEAD
5
Parts Diagram
Parts Catalog
ENGINE, CRANKSHAFT AND PISTON
by
ENGINE, STATOR AND COVER
CYLINDER AND HEAD
1
2
3
3
4
5
6
7
8
9
10
11
12
13
1
2
3
4
5
6
7
8
9
10
11
12
13
1
2 CYLINDER HEAD ASSEMBLY
1204660
$1 219,04 Unit Price incl. VAT
2
2 CYLINDER ASSEMBLY; 93 MM
3022278
9999999
Not Available
3
DOWEL PIN; 6 MM X 10 MM
5132835
$4,19 Unit Price incl. VAT
4
BASE GASKET
5253037
$57,74 Unit Price incl. VAT
5
2 CYLINDER HEAD GASKET; 93 MM
5813439
$94,49 Unit Price incl. VAT
6
HEAD BOLT; 11 MM X 1.25 MM X 150MM
7519123
7520978
$41,99 Unit Price incl. VAT
7
SCREW
7519153
$10,49 Unit Price incl. VAT
8
SCREW M6X1.0 X 13 SL/HX/FL-Z
7517679
$25,19 Unit Price incl. VAT
9
FLAT WASHER
7555998
$2,09 Unit Price incl. VAT
10
DWL-HOL M8X10
7661977
$15,74 Unit Price incl. VAT
11
PLUG-3/8 NPT;HX/SOC W/SEALANT
7052413
$8,39 Unit Price incl. VAT
12
HEX FLANGE SCREW; 6 MM X 35 MM
7518578
$7,34 Unit Price incl. VAT
13
HEX FLANGE SCREW; 6 MM X 1.0 MM X 70 MM
7519197
$1,56 Unit Price incl. VAT

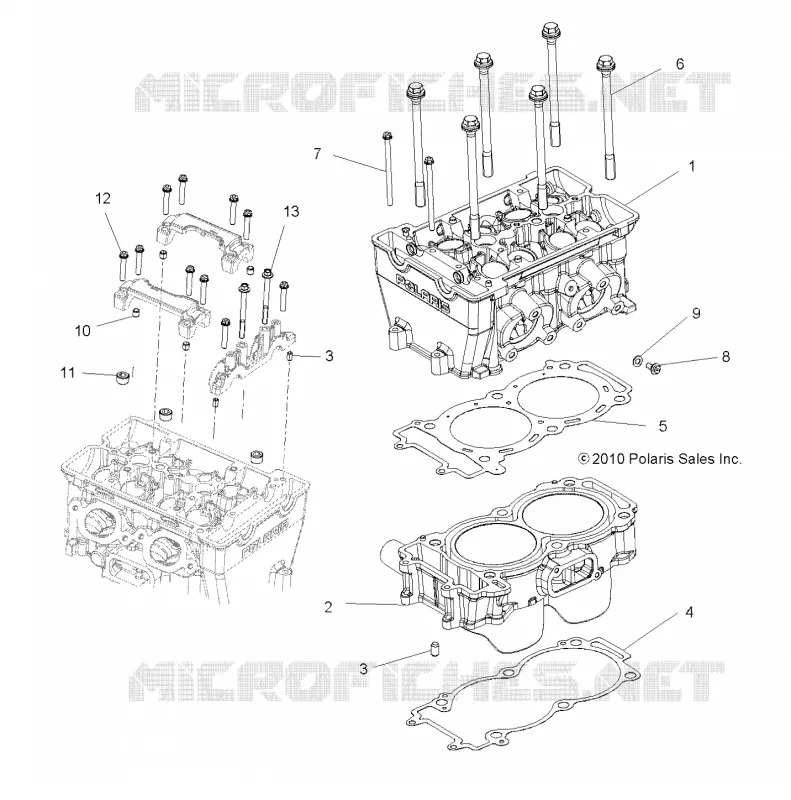

Find the detailed CYLINDER AND HEAD POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
