1
Engine displacement
autre
2
Year
1996
3
Trim
LITE DELUXE - 0963431
4
Parts Catalog
DECALS LITE 0963433 AND EURO LITE E963433 (4931663166A011)
5
Parts Diagram
Parts Catalog
HOOD LITE 0963433, EURO LITE E963433 AND LITE DELUXE 0963431 (4931663166A009)
by
DECALS LITE DELUXE 0963431 (4931663166A012)
DECALS LITE 0963433 AND EURO LITE E963433 (4931663166A011)
1
DECAL RH HD.TOP
7074966
Not Available
2
DECAL RH TUNNEL
7074974
Not Available
3
DECAL RH HD.SIDE REAR
7074970
Not Available
4
DECAL #INDY LITE#
7074971
Not Available
5
DECAL RH HD.SIDE FR.
7074968
Not Available
6
DECAL #IFS# RH
7074976
Not Available
7
LABEL U.S.A.
7073024
9999999
Not Available
8
DECAL SPEC(0963433/0963133)
7075667
Not Available
9
DECAL WARN.(ENG.&FR.)
7075353
Not Available
10
DECAL; NO PASS. WARN;BLK(10)
7075438
9999999
Not Available
11
DECAL LH HD.TOP
7074965
Not Available
12
DECAL #POLARIS# HD.FRONT [No Longer Available]
7074972
Not Available
13
DECAL HINGE COVER
7074977
Not Available
14
DECAL #IFS# LH
7074975
Not Available
15
DECAL LH HD.SIDE FR.
7074967
Not Available
16
DECAL LH HD.SIDE REAR
7074969
Not Available
17
KIT DECAL#96 LITE HOOD (Incl. 1 3-5 7-13 15 16)
2200635
Not Available
17
DECAL LH TUNNEL
7074973
Not Available

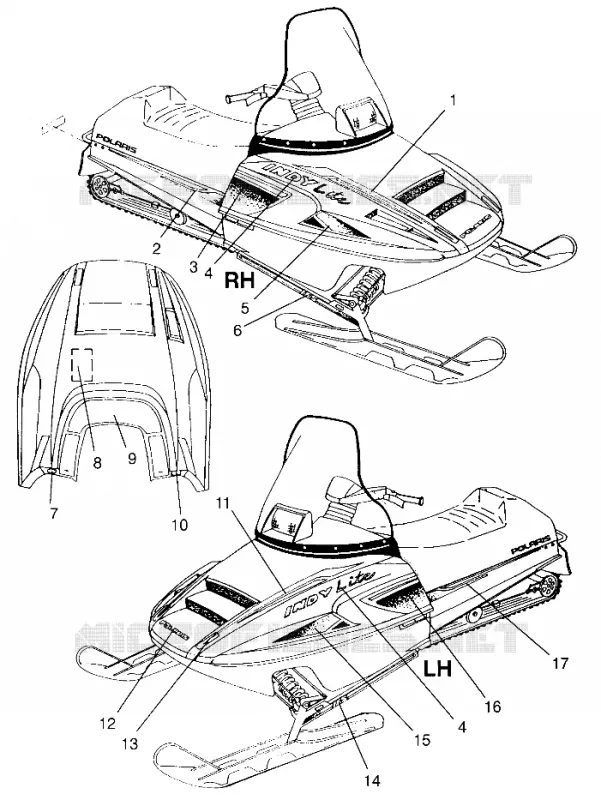

Find the detailed DECALS LITE 0963433 AND EURO LITE E963433 (4931663166A011) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
