Engine displacement
900
2
Year
2016
3
Trim
RANGER HST
4
Parts Catalog
DRIVE TRAIN, THROTTLE PEDAL
5
Parts Diagram
Parts Catalog
DRIVE TRAIN, SHIFT LEVER AND CABLE
by
ENGINE, COVER, 3RD PTO
DRIVE TRAIN, THROTTLE PEDAL
1
2
3
4
5
6
7
8
9
10
11
11
12
13
14
15
16
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
1
PEDAL BUSHING
3120102
$24,14 Unit Price incl. VAT
2
O-RING-HYDRAULIC
3120103
$5,76 Unit Price incl. VAT
3
PIN-PEDAL
3120105
9999999
Not Available
4
PROPEL CABLE
3120106
$278,24 Unit Price incl. VAT
5
PEDAL MOUNT
3120815
9999999
Not Available
6
FORWARD PEDAL
3120121
9999999
Not Available
7
CONTROLS COVER
3120148
9999999
Not Available
8
GROMMET-.50X1.25X.13 GROOVE
5414504
9999999
Not Available
9
U-CLIP SPEED NUT
7081305
$3,66 Unit Price incl. VAT
10
ROUTING CLIP
7081496
$9,44 Unit Price incl. VAT
11
CLIP-P 7/16X.343 HOLE
7081722
$7,34 Unit Price incl. VAT
12
SCREW
7516732
$3,14 Unit Price incl. VAT
13
BOLT M6 X 1.0 X 20
7518529
$2,09 Unit Price incl. VAT
14
HEX HEAD FLANGE SCREW; 6 MM X 16 MM
7518591
$6,29 Unit Price incl. VAT
15
SCR-TXBH-M8X1.25X25 10.9 ZB
7519728
$9,44 Unit Price incl. VAT
16
NUT-M8X1.25 HXFLG NYLON INS
7547317
7548028
$5,24 Unit Price incl. VAT
17
NUT-HXFL M8X1.25 ZOD
7547440
$6,29 Unit Price incl. VAT
18
WSHR-FLAT 8.4X1.6
7556211
$9,44 Unit Price incl. VAT
19
RING-RETAINING E CLIP 7.0
7710701
$9,44 Unit Price incl. VAT
20
CABLE-THROTTLE BASE
3120827
$186,89 Unit Price incl. VAT
21
ROUTING CLIP
7670109
$4,19 Unit Price incl. VAT
22
HEX FLANGE BOLT; 8 MM X 1.25 MM X 20 MM
7518702
$7,34 Unit Price incl. VAT
23
WASHER
7555935
$4,19 Unit Price incl. VAT
24
SPRING BRACKET
3120875
9999999
Not Available
25
BRKT-CABLE
3120876
9999999
Not Available
26
SPRING-THROTTLE
3120910
$36,74 Unit Price incl. VAT
27
CABLE TIE; 11 IN
7080492
$5,24 Unit Price incl. VAT
28
NUT-HXFL-M8X1.25 10 ZY3 P30
7547502
9999999
Not Available
29
SCREW
7517704
$13,64 Unit Price incl. VAT
30
HAIRPIN-COTTER 3/16-1/4
7661124
$7,34 Unit Price incl. VAT
31
PIN-CLEVIS 3/16X1/2
7662243
$9,44 Unit Price incl. VAT

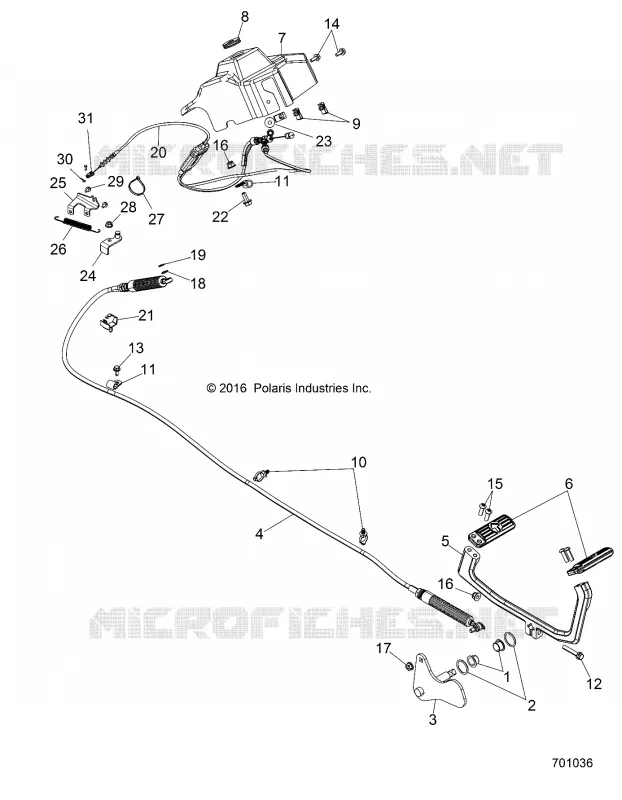

Find the detailed DRIVE TRAIN, THROTTLE PEDAL POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.
