1
Engine displacement
850
2
Year
2010
3
Trim
SPORTSMAN TOURING EPS 850 - A10DX85AL/AF
4
Parts Catalog
STEERING POST ASM.
5
Parts Diagram
Parts Catalog
STEERING, HANDLEBAR CONTROLS
by
STABILIZER BAR
STEERING POST ASM.
1
2
3
3
4
4
5
5
6
6
7
7
8
8
9
9
9
9
10
10
10
10
11
12
13
14
14
14
15
15
15
16
17
17
18
19
20
21
22
23
24
1
ASM-TIE ROD
1823620
1824007
$194,24 Unit Price incl. VAT
2
WELD-STEERING POST;UPPER;BLK
1823656329
Not Available
3
END ROD; RIGHT; 10 MM X 1.25 MM
7061175
$141,74 Unit Price incl. VAT
4
NUT-JAM M10X1.25 RH
7547452
9999999
Not Available
5
TIE ROD
5136903
$89,24 Unit Price incl. VAT
6
NUT-JAM M10X1.25 LH
7547451
9999999
Not Available
7
ROD END; LEFT; 10 MM X 1.25 MM
7061174
$141,74 Unit Price incl. VAT
8
WASHER
7556153
$3,66 Unit Price incl. VAT
9
PIN-COTTER(10)
7661205
$1,56 Unit Price incl. VAT
10
NYLOC NUT
7547333
$3,14 Unit Price incl. VAT
11
BRKT-UPPER STEERING BUSHING
5249143
9999999
Not Available
12
BUSHING-UPPER STEERING
5436128
5438904
$9,44 Unit Price incl. VAT
13
BOLT-M8X1.25X20 CARRIAGE
7518479
$7,34 Unit Price incl. VAT
14
NUT-M8X1.25 HXFLG NYLON INS
7547317
7548028
$5,24 Unit Price incl. VAT
15
HEX HEAD FLANGE BOLT 8MM X 20MM -1.25MM
7518450
$3,14 Unit Price incl. VAT
16
ASM-STEERING POST;LOWER
1823467
2205364
$299,24 Unit Price incl. VAT
17
ASM-POWER STEERING;ATV
2411500
9999999
Not Available
17
ASM-POWER STEERING;ATV
2411630
9999999
Not Available
18
BRKT-POWER STEERING;LH;BLK
5253075329
Not Available
19
BRKT-POWER STEERING;RH;BLK
5253076329
Not Available
20
FRONT DRIVE BRACKET; LEFT; BLACK
5253166329
Not Available
21
DRIVE BRACKET FRONT RIGHT BLACK
5253167329
Not Available
22
SCREW
7516827
$12,59 Unit Price incl. VAT
23
HEX FLANGE BOLT OLIVE 10MMX1.25MMX20MM
7518558
$7,34 Unit Price incl. VAT
24
NYLOCK FLANGE NUT; 6 MM
7547274
7548027
$3,14 Unit Price incl. VAT

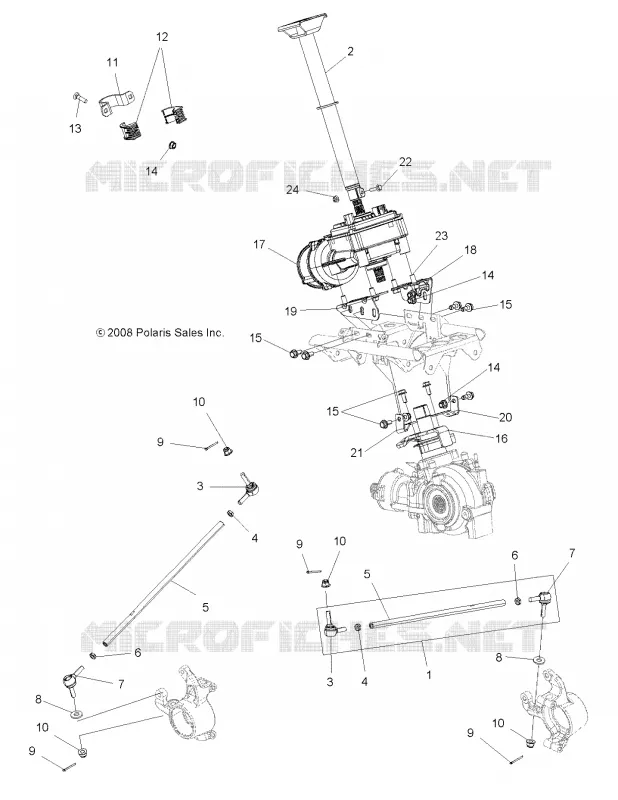

Find the detailed STEERING POST ASM. POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
