1
Engine displacement
800
2
Year
2019
3
Trim
800 AXYS PRO-RMK 155 / SC SELECT / 3" SC
4
Parts Catalog
ENGINE, MOUNTING
5
Parts Diagram
Parts Catalog
DECALS, SNOW CHECK SELECT, BLK SIDE PNL W/BLUE ACCENT
by
CHASSIS, BULKHEAD ASM.
ENGINE, MOUNTING
-
-
LONG BLOCK KIT; 800
2207336
9990000
Not Available
1
SOCKET HEAD SCREW 10 MM X 1.5 MM X 50 MM
7519334
$9,44 Unit Price incl. VAT
2
ENGINE MOUNT INSERT RAD MAG
3023291
$52,49 Unit Price incl. VAT
3
ENGINE MOUNT; REAR; MAG; MACHINED
5138294
$89,24 Unit Price incl. VAT
4
ENGINE MOUNT
3023293
$73,49 Unit Price incl. VAT
5
SCREW
7516823
$5,76 Unit Price incl. VAT
6
SCR-M8X1.25X25 8.8 SH ZOD P30
7519010
$7,34 Unit Price incl. VAT
7
FIXED TORQUE LINK ASSEMBLY
1019944
9999999
Not Available
8
SCR-TXTH M8X1.25X35 8.8ZOD P80
7519049
$13,64 Unit Price incl. VAT
9
BRKT-WASHER 14 GA
5258166
9999999
Not Available
10
600-800 SNOW ENGINE MOUNT
3023290
$52,49 Unit Price incl. VAT
11
SCR-HXBH-M8X1.25X20 TX W/PATCH
7519648
$7,34 Unit Price incl. VAT
12
SCR-SH-M10X1.5X25 ZOD
7519119
$6,29 Unit Price incl. VAT
13
TORQUE ENGINE LIMITER
3022281
$89,24 Unit Price incl. VAT
14
SCREW M6 X 1.0; L-20MM
7516822
$4,19 Unit Price incl. VAT
15
ENGINE BASE MOUNT; FRONT; MACHINED
5139042
$83,99 Unit Price incl. VAT
16
MOUNT-ENGINE PTO FRONT
3023292
$83,99 Unit Price incl. VAT
17
SCR-TXTH-M8X1.25X25 8.8 ZODP30
7519070
$11,54 Unit Price incl. VAT

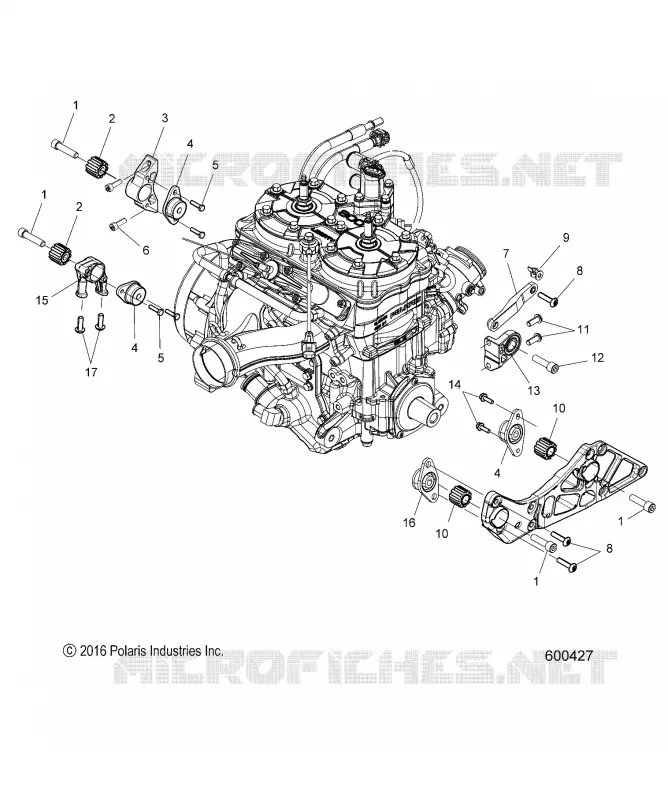

Find the detailed ENGINE, MOUNTING POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
