Parts Catalog
FRONT SUSPENSION AND SKI
5
Parts Diagram
Parts Catalog
BRAKE LIGHT 0973433 AND LITE DELUXE 0973431 (4938273827A014)
by
STEERING
FRONT SUSPENSION AND SKI
1
1
2
3
3
3
4
4
4
4
5
6
7
8
9
9
10
11
12
13
13
13
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
1
1
2
3
3
3
4
4
4
4
5
6
7
8
9
9
10
11
12
13
13
13
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
1
FLAT WASHER
7555806
$1,56 Unit Price incl. VAT
2
SCREW
7515417
9999999
Not Available
3
BOLT(10)
7515515
9999999
Not Available
4
NUT; FLEXLOC B
7542456
9999999
Not Available
5
SUSPENSION SHOCK FRONT
7041284
9999999
Not Available
6
BOLT
7515491
7515433
$3,14 Unit Price incl. VAT
7
STEERING ARM
5220326067
Not Available
8
SUBSTITUTED BY 7512404
7515490
$7,34 Unit Price incl. VAT
9
WASHER
7555721
$2,09 Unit Price incl. VAT
10
TUBE TRAILING ARM
5010187
9999999
Not Available
11
PIVOT-TRAILING ARM
5410382
9999999
Not Available
12
BOLT
7512557
9999999
Not Available
13
ARM RH TRLG BLK.
1823137067
Not Available
13
ARM LH TRLG BLK.
1823136067
Not Available
14
BUSHING
7556509
$3,14 Unit Price incl. VAT
15
FLANGED BUSHING
3574208
$6,29 Unit Price incl. VAT
16
SPINDLE BLK.
6230073067
Not Available
17
NYLOK NUT
7542324
$1,56 Unit Price incl. VAT
18
SKI SKAG WELD
1820267
$40,94 Unit Price incl. VAT
19
NUT; CASTLE
7542457
7542438
$3,14 Unit Price incl. VAT
20
PIN; COTTER
7661209
7661205
$1,56 Unit Price incl. VAT
21
SKAG PLATE; MEDIUM GLOSS BLACK
1011829067
Not Available
22
SKAG; BLK.
1820318067
Not Available
23
SKI BLK.
1820333067
Not Available
24
SCREW
7515462
9999999
Not Available
25
STOP RUBBER
5521231
9999999
Not Available
26
FITTING LUBE.W/BALL CK.(10)
7080306
$5,76 Unit Price incl. VAT
27
BUSHING PIVOT
5010158
$27,29 Unit Price incl. VAT
28
FITTING LUBRICATION THREADED(1
7080433
$2,09 Unit Price incl. VAT
29
ROD ENDRHWIDEBORE
7060157
9999999
Not Available
30
NUT JAM(10)
7542520
9999999
Not Available
31
FLANGE BUSHING
3573909
$4,19 Unit Price incl. VAT
32
WASHER
7555851
7555832
$4,19 Unit Price incl. VAT
33
RETAINER SPRING
5210953
$11,54 Unit Price incl. VAT
34
COMPRESSION SPRING
7041261067
Not Available
35
TOP RETAINER
5220225
$19,94 Unit Price incl. VAT
36
FLAT WASHER
7555797
$7,34 Unit Price incl. VAT
37
BUSH; RADIUS ROD PIVOT; OUT
5431486
9999999
Not Available
38
NUT LOCK
7542403
9999999
Not Available
39
BUSHING
5010252
9999999
Not Available
40
ROD RAD UP. BLK.
1822129067
Not Available
41
ROD RAD LOW.BLK.
1822128067
Not Available

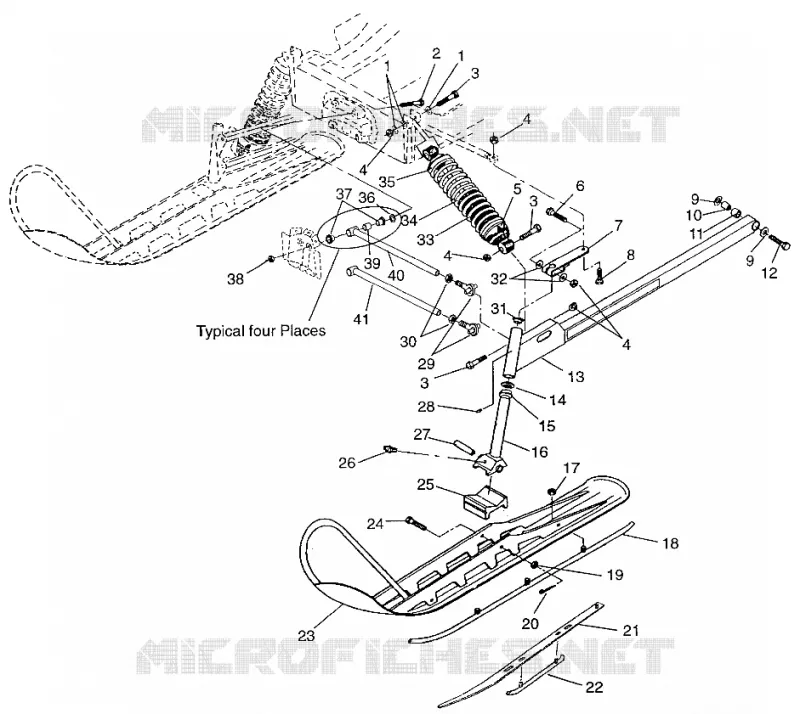

Find the detailed FRONT SUSPENSION AND SKI POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
