Parts Catalog
ENGINE MOUNTING
5
Parts Diagram
Parts Catalog
DRIVEN CLUTCH
by
CYLINDER LITE 0973433 AND LITE DELUXE 0973431 (4938273827C004)
ENGINE MOUNTING
1
2
3
4
5
5
5
5
5
5
6
6
6
6
7
8
9
10
11
12
13
14
14
15
15
16
17
18
19
20
21
22
23
24
25
26
26
27
1
2
3
4
5
5
5
5
5
5
6
6
6
6
7
8
9
10
11
12
13
14
14
15
15
16
17
18
19
20
21
22
23
24
25
26
26
27
1
ENG.(S.B.)EC34-2PM-02/04
3084620
9990000
Not Available
2
HANDLE RECOIL
5431499
9999999
Not Available
3
THROTTLE CABLE
7080557
9999999
Not Available
4
BR8ES SPARK PLUG; NGK(4)
3070156
$7,34 Unit Price incl. VAT
5
HOSE CLAMP
7080003
$2,09 Unit Price incl. VAT
6
FUEL LINE; 600 CM
8450040600
Not Available
7
VALVE FUEL SHUT-OFF
7052060
9999999
Not Available
8
FUEL FILTER
2530008
9999999
Not Available
9
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
10
TUBE CONVOLUTED SVC. (Lite Deluxe)
5521278
Not Available
11
WASHER CLUTCH RETAINER
5010278
5010287
$18,89 Unit Price incl. VAT
12
WASHER LOCK
7575202
$9,44 Unit Price incl. VAT
13
BOLT
7512566
9999999
Not Available
14
CAP DAMPENER VIBRATION
5221901
9999999
Not Available
15
DAMPNER-VIB.
5410320
9999999
Not Available
16
BUSHING-MOTOR MT.
5010163
9999999
Not Available
17
BOLT
7515503
9999999
Not Available
18
BUSHING THREADED
5020840
9999999
Not Available
19
SPRING LOCK WASHER
7553101
$7,34 Unit Price incl. VAT
20
BOLT
7512515
9999999
Not Available
21
BOLT
7515510
9999999
Not Available
22
PLATE; SPACER
5211201
9999999
Not Available
23
WASHER
7555823
$7,34 Unit Price incl. VAT
24
BUSHING THREADED
5020562
9999999
Not Available
25
PLATE;MOTOR MOUNT
5222292
9999999
Not Available
26
WASHER
7555761
$4,19 Unit Price incl. VAT
27
NUT LOCK
7542403
9999999
Not Available

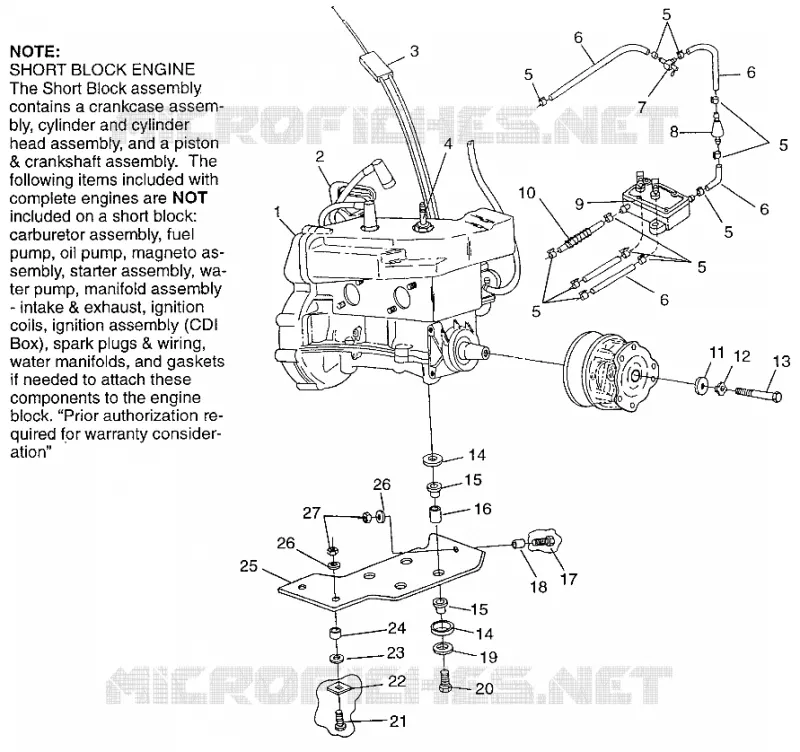

Find the detailed ENGINE MOUNTING POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
