BODY, FRONT CAB & SIDE PANELS for POLARIS SPORTSMAN 570 EU from 2019

BODY, FRONT CAB & SIDE PANELS

1

CAB ASSEMBLY; REAR; SVC; WHITE LIGHTNING

2635180599

Not Available

1

ASM-CAB FR;EU;2 OC;S.B.GREEN

2635675498

Not Available

1

ASM-CAB FR SVC TRG EU S.GRN

2636211498

Not Available

1

ASM-CAB FR;EU;2 OC;WHT LTNG

2635675599

Not Available

2

SIDE PANEL; LEFT

5450521498

Not Available

2

SIDE PANEL; LEFT; WHITE LIGHTNING

5450521599

Not Available

3

COVER; FRONT; WHITE LIGHTNING

5439069599

Not Available

3

COVER; FRONT; SAGEBRUSH GREEN METALLIC

5439069498

Not Available

4

SHIELD PANEL ASSEMBLY; RIGHT

2636441498

Not Available

4

ASM-PANEL/SHIELD RH WHT.LGHT

2636441599

Not Available

5

COMPARTMENT PLUG

5412981

5418084

$6,29 Unit Price incl. VAT

6

TORX SCREW; #14 X 3/4

7519045

$6,29 Unit Price incl. VAT

7

FLAT WASHER

7555859

$2,09 Unit Price incl. VAT

8

PLUG MOUNT BRACKET

5258497

$10,49 Unit Price incl. VAT

9

CARRIAGE BOLT

7512193

$4,19 Unit Price incl. VAT

10

CABLE TIE

7080356

$4,19 Unit Price incl. VAT

11

NYLOK FLANGED NUT

7542153

$3,14 Unit Price incl. VAT

12

TUFLOK RIVET

7661855

$2,09 Unit Price incl. VAT

13

BOLT

7512232

$2,09 Unit Price incl. VAT

14

BULB SEAL .375 350 CM

5521697350

Not Available

15

CLOSEOFF PANEL; LEFT; GLOSS BLACK

5454437070

Not Available

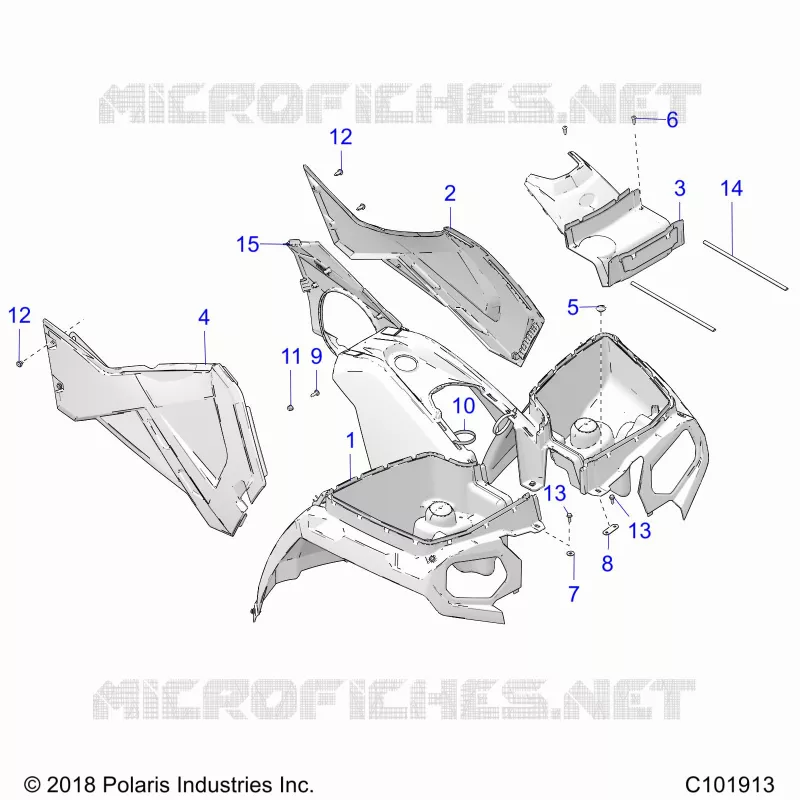

Find the detailed BODY, FRONT CAB & SIDE PANELS POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
