SUSPENSION EXTENSION for POLARIS 500 WIDETRAK LX from 2010

SUSPENSION EXTENSION

1

INSERT WHEEL(I.D.63)

5431420

5431531

$19,94 Unit Price incl. VAT

1

WHEEL INSERTS

5430723

9999999

Not Available

2

SPRING LOCK WASHER

7552603

$1,56 Unit Price incl. VAT

3

SCR-3/8-16X1.50-HX/CP-GR5-P80Y

7518005

$5,76 Unit Price incl. VAT

4

OUTER SPACER

5333019067

Not Available

5

WASHER

7555726

$3,14 Unit Price incl. VAT

6

CARRIER WHEL

1543021

9999999

Not Available

7

SHAFT MTG.

5020836

9999999

Not Available

8

SPACER BLK IN.CARRIER

5333020067

Not Available

9

WASHER FLAT(10)

7555893

$1,56 Unit Price incl. VAT

10

BOLT 3/8-16X1.25(10)

7517731

$2,09 Unit Price incl. VAT

11

WASHER .406 X 1.25 X .125

7556130

$11,54 Unit Price incl. VAT

12

SCROLLED IDLER WHEEL ASM BR WHT METALLIC

1594083244

Not Available

13

SPACER; IDLER

5432535

$20,99 Unit Price incl. VAT

14

BUSHING

7555918

$3,14 Unit Price incl. VAT

15

PLAIN WHEEL ASSEMBLY

1594087

9999999

Not Available

16

SHAFT IDLER

5020879

9999999

Not Available

17

BLOCK-IDLER BOLT ADJ.

5130530

$62,99 Unit Price incl. VAT

18

RIVET

7621501

$4,19 Unit Price incl. VAT

19

RETAINING RING

7710444

$15,74 Unit Price incl. VAT

20

BEARING-.7874X1.6535X.4724 NTN

3514384

3515142

$34,64 Unit Price incl. VAT

21

SCREW

7512225

9999999

Not Available

22

WHITE SLIDER

5521452

$73,49 Unit Price incl. VAT

22

RAIL ASM;SWINGARM;RIVETED

1541133

9999999

Not Available

23

SHAFT PIVOT ARM

5020725

9999999

Not Available

24

SCREW 3/8-16X3 1/2HXHD TAP

7515459

$10,49 Unit Price incl. VAT

25

NUT

7542404

$3,14 Unit Price incl. VAT

26

SPACER IDLER

5333523

9999999

Not Available

27

SCREW

7517435

$22,56 Unit Price incl. VAT

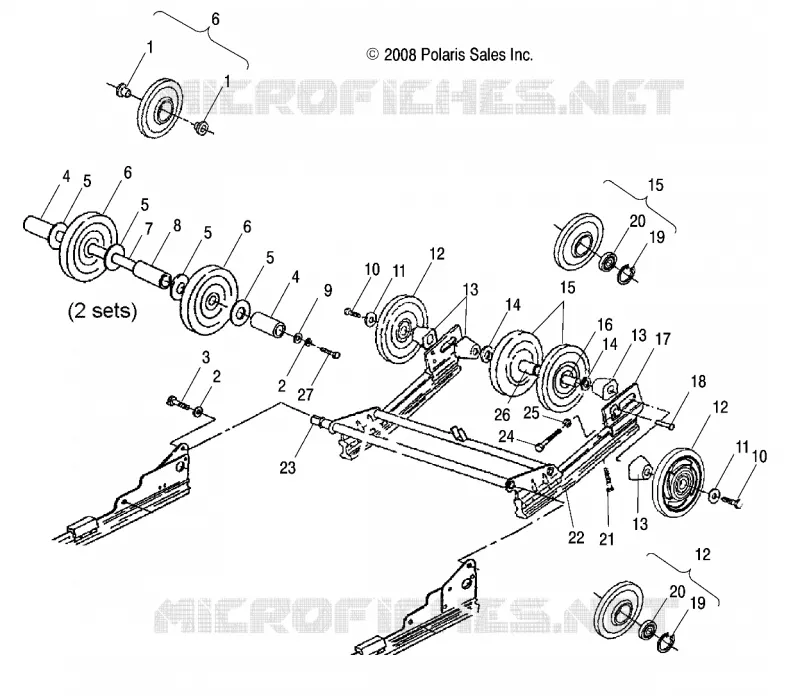

Find the detailed SUSPENSION EXTENSION POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
