Parts Catalog
CRANKCASE
5
Parts Diagram
Parts Catalog
ENGINE MOUNTING
by
OIL PUMP
CRANKCASE
1
STUD
3084119
9999999
Not Available
2
GROMMET
3082875
9999999
Not Available
3
CRANKCASE ASM.
3086832
9999999
Not Available
4
DOWEL PIN
3086838
9999999
Not Available
5
BOLT FLANGE
3087256
7520710
$7,34 Unit Price incl. VAT
6
FLAT WASHER
7555998
$2,09 Unit Price incl. VAT
7
OIL SEAL
3086833
9999999
Not Available
8
ASM. BOLT AND WASHER
3080739
9999999
Not Available
9
ASM. BOLT AND WASHER
3083078
9999999
Not Available
10
BOLT&WASHER ASM.
3084220
9999999
Not Available
11
OIL SEAL
3085200
9999999
Not Available
12
PIPE PULSE
3083798
7052145
$17,84 Unit Price incl. VAT

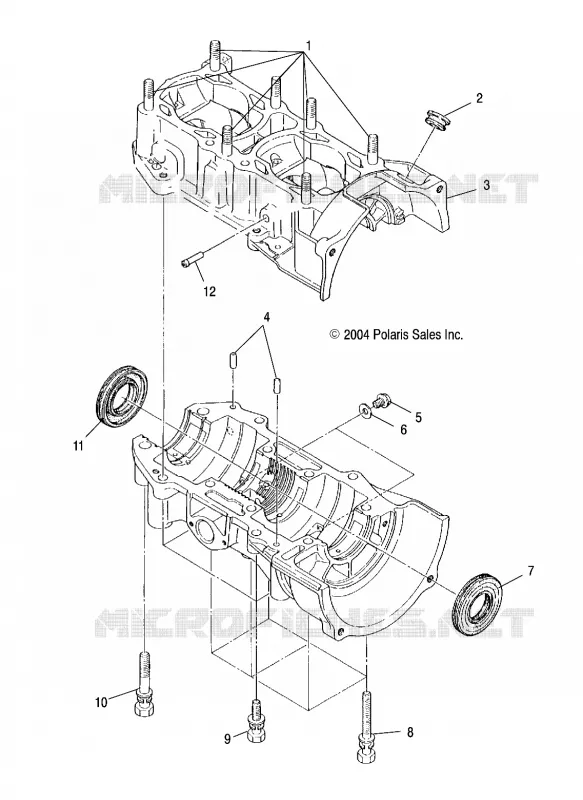

Find the detailed CRANKCASE POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.
