1
Engine displacement
900
2
Year
2017
3
Trim
RZR 4 900
4
Parts Catalog
CYLINDER AND HEAD
5
Parts Diagram
Parts Catalog
ENGINE, CRANKSHAFT AND PISTON
by
ENGINE, ENGINE MOUNTING
CYLINDER AND HEAD
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
1
HEAD CYLINDER ASSEMBLY
3022798
3024248
$1 753,49 Unit Price incl. VAT
2
DOWEL-HOLLOW M8X8
7662247
9999999
Not Available
3
PLUG-3/8 NPT;HX/SOC W/SEALANT
7052413
$8,39 Unit Price incl. VAT
4
SCR-HXFL-M6X1.0X35 10.9 ZY3
7519870
7520689
$14,69 Unit Price incl. VAT
5
SCR-HXFL M6X1.0X70 B18.2.3.4M
7519871
7520688
$19,94 Unit Price incl. VAT
6
PIN-DOWEL M6X10
5137624
$13,64 Unit Price incl. VAT
7
SCREW
7519153
$10,49 Unit Price incl. VAT
8
SCR-M6X1.0X13 SL/HX/FL-Z BLEED
7520470
$9,44 Unit Price incl. VAT
9
FLAT WASHER
7555998
$2,09 Unit Price incl. VAT
10
CYLINDER ASSEMBLY 875
3023155
3023800
$801,14 Unit Price incl. VAT
11
DOWEL PIN; 6 MM X 10 MM
5132835
$4,19 Unit Price incl. VAT
12
BASE GASKET
5253037
$57,74 Unit Price incl. VAT
13
CYLINDER HEAD GASKET
5813737
5814793
$110,24 Unit Price incl. VAT
14
HEAD BOLT; 11 MM X 1.25 MM X 150MM
7519123
7520978
$41,99 Unit Price incl. VAT
15
THEMISTER SENSOR
4010644
$141,74 Unit Price incl. VAT

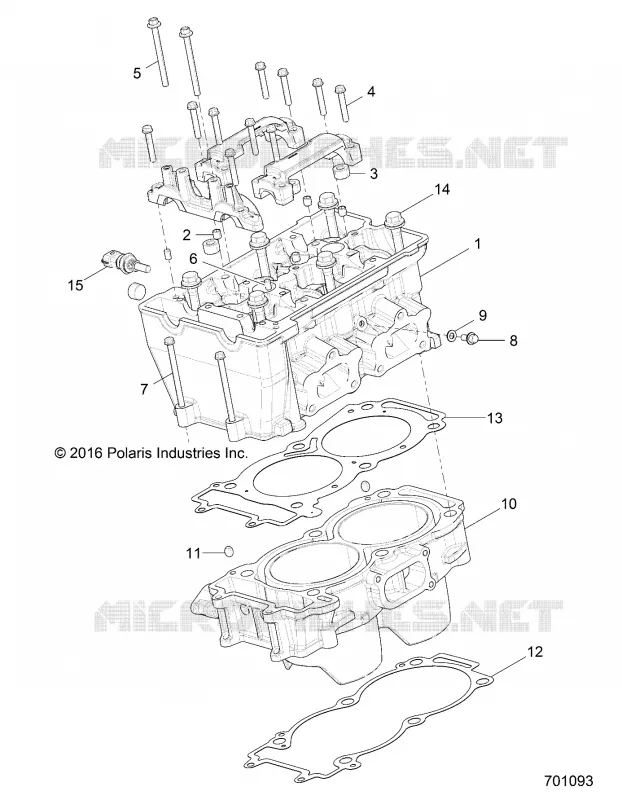

Find the detailed CYLINDER AND HEAD POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
