1
Engine displacement
autre
2
Year
1997
3
Trim
EURO WIDETRAK LX - E972065
4
Parts Catalog

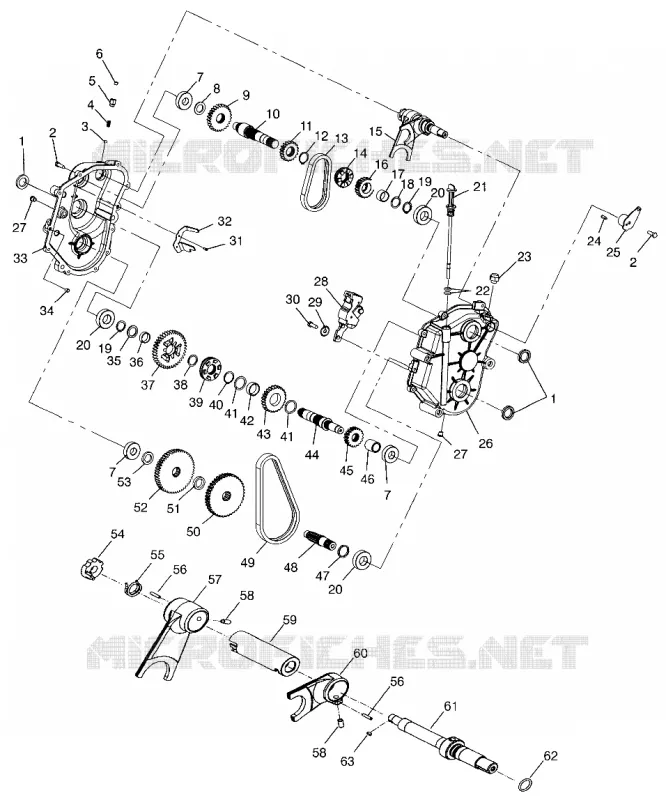

GEARCASE WIDETRAK LX 0972065 AND EUROPEAN WIDETRAK LX E972065 (4938223822B005)
5
Parts Diagram
Parts Catalog
STEERING WIDETRAK LX 0972065 AND EUROPEAN WIDETRAK LX E972065 (4938223822B004)
by
SUSPENSION WIDETRAK LX 0972065 AND EUROPEAN WIDETRAK LX E972065 (4938223822B007)
GEARCASE WIDETRAK LX 0972065 AND EUROPEAN WIDETRAK LX E972065 (4938223822B005)
-
1
1
2
2
3
4
5
6
7
7
7
8
9
10
11
12
13
14
15
16
17
18
19
19
20
20
20
21
22
23
24
25
26
27
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
56
57
58
58
59
60
61
62
63
-
1
1
2
2
3
4
5
6
7
7
7
8
9
10
11
12
13
14
15
16
17
18
19
19
20
20
20
21
22
23
24
25
26
27
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
56
57
58
58
59
60
61
62
63
-
GEARCASE ASM;BASIC;W.T.
1341190
9999999
Not Available
1
DUAL LIP SEAL; .0984 X 1.500 X .25
3610134
$73,49 Unit Price incl. VAT
2
SCREW
3233026
9999999
Not Available
3
BALL DETENT (10)
7080310
$10,49 Unit Price incl. VAT
4
DETENT SHIFTER SPRING
7041483
9999999
Not Available
5
DETENT EXTENSION
3233405
9999999
Not Available
6
SCREW SET
3233374
9999999
Not Available
7
BEARING
3233018
$47,24 Unit Price incl. VAT
8
SPACER
3233416
9999999
Not Available
9
GEAR; 27T
3233419
9999999
Not Available
10
SHAFT INPUT
3233420
Not Available
11
SPKT 19T WTD
3233423
Not Available
12
RING RETAINING
3233424
Not Available
13
SILENT CHAIN
3233408
$188,99 Unit Price incl. VAT
14
DOG; ENGAGE; HIGH
3233470
9999999
Not Available
15
SHAFT DRUM ASM.
3233425
Not Available
16
SPROCKET;19T
3233471
9999999
Not Available
17
BEARING NEEDLE
3233383
9999999
Not Available
18
WASHER THRUST
3233468
9999999
Not Available
19
SNAP RING
3233106
$10,49 Unit Price incl. VAT
20
BEARING
3233019
$54,59 Unit Price incl. VAT
21
DIPSTICK
5431419
1332143
$89,24 Unit Price incl. VAT
22
O-RING
5410675
$3,14 Unit Price incl. VAT
23
SWITCH
3233410
9999999
Not Available
24
KEY (3/16 X 1/4)
3233414
9999999
Not Available
25
BELLCRANK WTD
3233393
9999999
Not Available
26
GEARCASE LH MACH
3233388
Not Available
27
PLUG
7052115
$10,49 Unit Price incl. VAT
28
SUBASM CHAIN TENSIONER
3233467
Not Available
29
WASHER; LOCK
3233272
9999999
Not Available
30
SCREW
3233252
$9,44 Unit Price incl. VAT
31
SCREW
3233033
9999999
Not Available
32
DEFLECTOROIL
3233406
9999999
Not Available
33
GEARCASE RH MACH
3233387
Not Available
34
PIPE KNOCK
3233021
9999999
Not Available
35
WASHER
3233099
9999999
Not Available
36
BEARING; NEEDLE
3233103
$54,59 Unit Price incl. VAT
37
GEAR 39T
3233398
Not Available
38
WASHER
3233105
9999999
Not Available
39
DOG ENGAGE L/R
3233472
9999999
Not Available
40
RING RETAINING
3233377
9999999
Not Available
41
THRUST WASHER
3233378
$17,84 Unit Price incl. VAT
42
NEEDLE BEARING
3233384
$54,59 Unit Price incl. VAT
43
SPKT25T
3233400
9999999
Not Available
44
SHAFT REVERSE
3233421
Not Available
45
GEAR 19T WTD
3233422
Not Available
46
SPACER
3233417
9999999
Not Available
47
SPACER
3233418
9999999
Not Available
48
SHAFT OUTPUT
3233399
Not Available
49
CHAIN 66P (13W) SILENT
3224051
9999999
Not Available
50
SPKT 41T 13W 15 SPLINE
3222092
9999999
Not Available
51
SPACER
3233379
Not Available
52
GEAR 49T
3233397
Not Available
53
SPACER
3233380
Not Available
54
INDEX SHIFT
3233402
9999999
Not Available
55
SPRINGTORSION
3233386
9999999
Not Available
56
PIN;SPRING (10)
3233376
9999999
Not Available
57
SHIFTFORK L/R MACH
3233390
Not Available
58
PIN DOWELL
3233375
9999999
Not Available
59
DRUM SHIFT
3233404
Not Available
60
SHIFTFORK HI MACH.
3233389
Not Available
61
SHAFT SHIFT
3233403
9999999
Not Available
62
O-RING
5410440
9999999
Not Available
63
KEY; (1/8 X 1/4)
3233415
7710608
$6,29 Unit Price incl. VAT

Find the detailed GEARCASE WIDETRAK LX 0972065 AND EUROPEAN WIDETRAK LX E972065 (4938223822B005) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.

Other Parts for EURO WIDETRAK LX - E972065

TUNNEL WIDETRAK LX 0972065 AND EUROPEAN WIDETRAK LX E972065 (4938223822A005)

TUNNEL WIDETRAK LX 0972065 AND EUROPEAN WIDETRAK LX E972065 (4938223822A005)

for EURO WIDETRAK LX - E972065 from 1997

SEAT GAS TANK WIDETRAK LX 0972065 AND EUROPEAN WIDETRAK LX E972065 (4938223822A006)

SEAT GAS TANK WIDETRAK LX 0972065 AND EUROPEAN WIDETRAK LX E972065 (4938223822A006)

for EURO WIDETRAK LX - E972065 from 1997

CONSOLE WIDETRAK LX 0972065 AND EUROPEAN WIDETRAK LX E972065 (4938223822A013)

CONSOLE WIDETRAK LX 0972065 AND EUROPEAN WIDETRAK LX E972065 (4938223822A013)

for EURO WIDETRAK LX - E972065 from 1997

RACK TUNNEL EXTENSION WIDETRAK LX 0972065 AND EUROPEAN WIDETRAK LX E97 (4938223822A014)

RACK TUNNEL EXTENSION WIDETRAK LX 0972065 AND EUROPEAN WIDETRAK LX E97 (4938223822A014)

for EURO WIDETRAK LX - E972065 from 1997

FRONT SUSPENSION AND SKI WIDETRAK LX 0972065 AND EUROPEAN WIDETRAK LX E972 (4938223822B001)

FRONT SUSPENSION AND SKI WIDETRAK LX 0972065 AND EUROPEAN WIDETRAK LX E972 (4938223822B001)

for EURO WIDETRAK LX - E972065 from 1997

STEERING

STEERING

for EURO WIDETRAK LX - E972065 from 1997

REAR TORQUE ARM WIDETRAK LX 0972065 AND EUROPEAN WIDETRAK LX E972065 (4938223822B010)

REAR TORQUE ARM WIDETRAK LX 0972065 AND EUROPEAN WIDETRAK LX E972065 (4938223822B010)

for EURO WIDETRAK LX - E972065 from 1997

BRAKE WIDETRAK LX 0972064 AND EUROPEAN WIDETRAK LX E972064 (4938223822B011)

BRAKE WIDETRAK LX 0972064 AND EUROPEAN WIDETRAK LX E972064 (4938223822B011)

for EURO WIDETRAK LX - E972065 from 1997

DRIVE SHAFT WIDETRAK LX 0972065 AND EUROPEAN WIDETRAK LX E972065 (4938223822B012)

DRIVE SHAFT WIDETRAK LX 0972065 AND EUROPEAN WIDETRAK LX E972065 (4938223822B012)

for EURO WIDETRAK LX - E972065 from 1997

BATTERY BOX WIDETRAK LX 0972065 AND EUROPEAN WIDETRAK LX E972065 (4938223822B013)

BATTERY BOX WIDETRAK LX 0972065 AND EUROPEAN WIDETRAK LX E972065 (4938223822B013)

for EURO WIDETRAK LX - E972065 from 1997

COOLING SYSTEM WIDETRAK LX 0972065 AND EUROPEAN WIDETRAK LX E972065 (4938223822C005)

COOLING SYSTEM WIDETRAK LX 0972065 AND EUROPEAN WIDETRAK LX E972065 (4938223822C005)

for EURO WIDETRAK LX - E972065 from 1997

SHIFT LINKAGE WIDETRAK LX 0972065 AND EUROPEAN WIDETRAK LX E972065 (4938223822C006)

SHIFT LINKAGE WIDETRAK LX 0972065 AND EUROPEAN WIDETRAK LX E972065 (4938223822C006)

for EURO WIDETRAK LX - E972065 from 1997

CRANKCASE WIDETRAK LX 0972065 AND EUROPEAN WIDETRAK LX E972065 (4938223822C007)

CRANKCASE WIDETRAK LX 0972065 AND EUROPEAN WIDETRAK LX E972065 (4938223822C007)

for EURO WIDETRAK LX - E972065 from 1997

CYLINDER WIDETRAK LX 0972065 AND EUROPEAN WIDETRAK LX E972065 (4938223822C008)

CYLINDER WIDETRAK LX 0972065 AND EUROPEAN WIDETRAK LX E972065 (4938223822C008)

for EURO WIDETRAK LX - E972065 from 1997

OIL PUMP WIDETRAK LX 0972065 AND EUROPEAN WIDETRAK LX E972065 (4938223822C013)

OIL PUMP WIDETRAK LX 0972065 AND EUROPEAN WIDETRAK LX E972065 (4938223822C013)

for EURO WIDETRAK LX - E972065 from 1997

MAGNETO WIDETRAK LX 0972065 AND EUROPEAN WIDETRAK LX E972065 (4938223822C014)

MAGNETO WIDETRAK LX 0972065 AND EUROPEAN WIDETRAK LX E972065 (4938223822C014)

for EURO WIDETRAK LX - E972065 from 1997

RECOIL STARTER WIDETRAK LX 0972065 AND EUROPEAN WIDETRAK LX E972065 (4938223822D001)

RECOIL STARTER WIDETRAK LX 0972065 AND EUROPEAN WIDETRAK LX E972065 (4938223822D001)

for EURO WIDETRAK LX - E972065 from 1997

STARTING MOTOR WIDETRAK LX 0972065 AND EUROPEAN WIDETRAK LX E972065 (4938223822D002)

STARTING MOTOR WIDETRAK LX 0972065 AND EUROPEAN WIDETRAK LX E972065 (4938223822D002)

for EURO WIDETRAK LX - E972065 from 1997

NOSEPAN WIDETRAK LX 0972065 and EUROPEAN WIDETRAK LX E972065 (4938223822A007)

NOSEPAN WIDETRAK LX 0972065 and EUROPEAN WIDETRAK LX E972065 (4938223822A007)

for EURO WIDETRAK LX - E972065 from 1997

HOOD WIDETRAK LX 0972065 AND EUROPEAN WIDETRAK LX E972065 (4938223822A009)

HOOD WIDETRAK LX 0972065 AND EUROPEAN WIDETRAK LX E972065 (4938223822A009)

for EURO WIDETRAK LX - E972065 from 1997

DECALS WIDETRAK LX 0972065 AND EUROPEAN WIDETRAK LX E972065 (4938223822A011)

DECALS WIDETRAK LX 0972065 AND EUROPEAN WIDETRAK LX E972065 (4938223822A011)

for EURO WIDETRAK LX - E972065 from 1997

HOOD

HOOD

for EURO WIDETRAK LX - E972065 from 1997

STEERING WIDETRAK LX 0972065 AND EUROPEAN WIDETRAK LX E972065 (4938223822B004)

STEERING WIDETRAK LX 0972065 AND EUROPEAN WIDETRAK LX E972065 (4938223822B004)

for EURO WIDETRAK LX - E972065 from 1997

GEARCASE WIDETRAK LX 0972065 AND EUROPEAN WIDETRAK LX E972065 (4938223822B005)

GEARCASE WIDETRAK LX 0972065 AND EUROPEAN WIDETRAK LX E972065 (4938223822B005)

for EURO WIDETRAK LX - E972065 from 1997

SUSPENSION WIDETRAK LX 0972065 AND EUROPEAN WIDETRAK LX E972065 (4938223822B007)

SUSPENSION WIDETRAK LX 0972065 AND EUROPEAN WIDETRAK LX E972065 (4938223822B007)

for EURO WIDETRAK LX - E972065 from 1997

FRONT TORQUE ARM WIDETRAK LX 0972065 AND EUROPEAN WIDETRAK LX E972065 (4938223822B009)

FRONT TORQUE ARM WIDETRAK LX 0972065 AND EUROPEAN WIDETRAK LX E972065 (4938223822B009)

for EURO WIDETRAK LX - E972065 from 1997

DRIVE CLUTCH WIDETRAK LX 0972065 AND EUROPEAN WIDETRAK LX E972065 (4938223822B014)

DRIVE CLUTCH WIDETRAK LX 0972065 AND EUROPEAN WIDETRAK LX E972065 (4938223822B014)

for EURO WIDETRAK LX - E972065 from 1997

DRIVEN CLUTCH WIDETRAK LX 0972065 AND EUROPEAN WIDETRAK LX E972065 (4938223822C001)

DRIVEN CLUTCH WIDETRAK LX 0972065 AND EUROPEAN WIDETRAK LX E972065 (4938223822C001)

for EURO WIDETRAK LX - E972065 from 1997

ENGINE MOUNTING WIDETRAK LX 0972065 AND EUROPEAN WIDETRAK LX E972065 (4938223822C002)

ENGINE MOUNTING WIDETRAK LX 0972065 AND EUROPEAN WIDETRAK LX E972065 (4938223822C002)

for EURO WIDETRAK LX - E972065 from 1997

EXHAUST SYSTEM WIDETRAK LX 0972065 AND EUROPEAN WIDETRAK LX E972065 (4938223822C003)

EXHAUST SYSTEM WIDETRAK LX 0972065 AND EUROPEAN WIDETRAK LX E972065 (4938223822C003)

for EURO WIDETRAK LX - E972065 from 1997

OIL TANK AIR BOX WIDETRAK LX 0972065 AND EUROPEAN WIDETRAK LX E972065 (4938223822C004)

OIL TANK AIR BOX WIDETRAK LX 0972065 AND EUROPEAN WIDETRAK LX E972065 (4938223822C004)

for EURO WIDETRAK LX - E972065 from 1997

WATER PUMP WIDETRAK LX 0972065 AND EUROPEAN WIDETRAK LX E972065 (4938223822C009)

WATER PUMP WIDETRAK LX 0972065 AND EUROPEAN WIDETRAK LX E972065 (4938223822C009)

for EURO WIDETRAK LX - E972065 from 1997

PISTON CRANKSHAFT WIDETRAK LX 0972065 AND EUROPEAN WIDETRAK LX E972065 (4938223822C010)

PISTON CRANKSHAFT WIDETRAK LX 0972065 AND EUROPEAN WIDETRAK LX E972065 (4938223822C010)

for EURO WIDETRAK LX - E972065 from 1997

CARBURETOR WIDETRAK LX 0972065 AND EUROPEAN WIDETRAK LX E972065 (4938223822C011)

CARBURETOR WIDETRAK LX 0972065 AND EUROPEAN WIDETRAK LX E972065 (4938223822C011)

for EURO WIDETRAK LX - E972065 from 1997

FUEL PUMP WIDETRAK LX 0972065 AND EUROPEAN WIDETRAK LX E972065 (4938223822C012)

FUEL PUMP WIDETRAK LX 0972065 AND EUROPEAN WIDETRAK LX E972065 (4938223822C012)

for EURO WIDETRAK LX - E972065 from 1997

POLARIS EURO WIDETRAK LX - E972065 1997

EURO WIDETRAK LX - E972065

EURO WIDETRAK LX - E972065

Model : WIDETRAK

Engine capacity : autre

Year : 1997

New and OEM parts
International Shipping
Official price POLARIS
A team of experts at your service
Secure Payment
By your side since 2001
Customer Reviews
4.2 /5
1764 Reviews
View all reviews
Spare parts catalogue for all brands
