REAR SUSPENSION CONTROL ARM, MOUNTING for POLARIS SPORTSMAN 850 HIGH LIFTER from 2024

FRONT SUSPENSION HUB, KNUCKLE AND BRAKE DISC

REAR SUSPENSION CONTROL ARMS

REAR SUSPENSION CONTROL ARM, MOUNTING

1

BOLT 10 MM X 1.5 MM X 85

7518466

$9,44 Unit Price incl. VAT

2

HEX FLANGE SCREW 10MM X 1.25MM X 235MM

7519086

$52,49 Unit Price incl. VAT

3

SEALED PIVOT CAP ASSEMBLY; 10 MM

1543611

$10,49 Unit Price incl. VAT

4

STANDARD SUSPENSION BUSHING; 10 MM

5452233

$5,24 Unit Price incl. VAT

5

SHAFT-PIVOT SHORT M10 43MM

5141292

$8,39 Unit Price incl. VAT

6

SHAFT-PIVOT 190MM M10

5141510

$52,49 Unit Price incl. VAT

7

NUT-HXFL-M10X1.5 8 ZTB NYL

7548029

$5,24 Unit Price incl. VAT

8

NYLOC NUT

7547333

$3,14 Unit Price incl. VAT

9

WASHER

7556153

$3,66 Unit Price incl. VAT

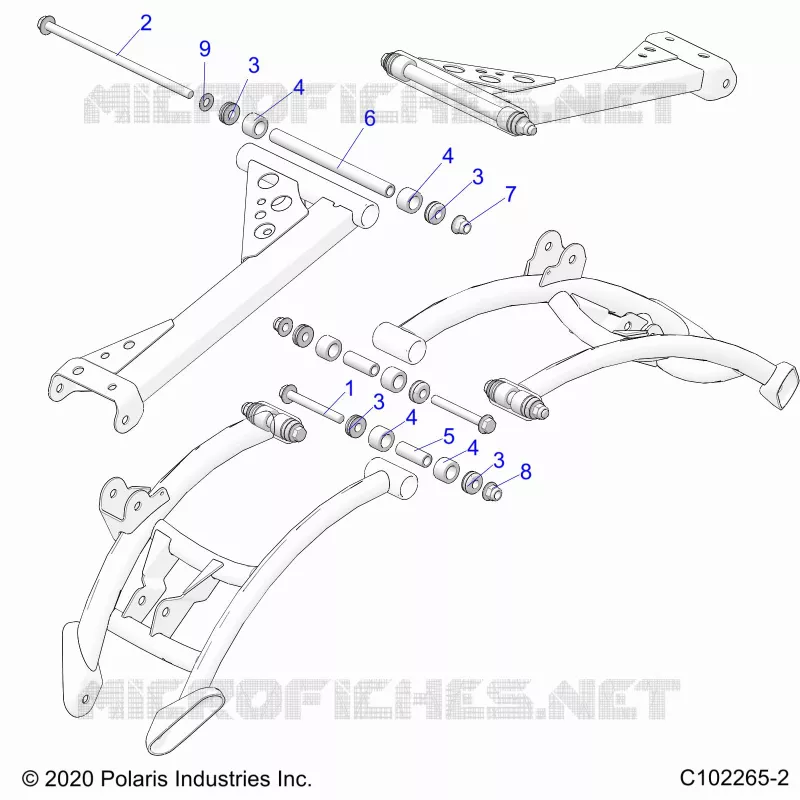

Find the detailed REAR SUSPENSION CONTROL ARM, MOUNTING POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
