Engine displacement
500
2
Year
2004
3
Trim
500 WIDETRAK LX
4
Parts Catalog
FRONT SUSPENSION
5
Parts Diagram
Parts Catalog
HOOD
by
SKI
FRONT SUSPENSION
1
2
2
3
3
4
4
5
6
7
7
7
7
7
8
8
9
10
11
12
13
13
14
15
16
16
17
18
19
20
20
21
22
23
23
24
25
26
27
28
29
30
30
31
32
33
34
35
36
37
38
39
40
1
BRACE BULKHEAD
5240349067
Not Available
2
RIVET
7661637
$2,09 Unit Price incl. VAT
3
STRAP SPACER BOTTOM
5211345
9999999
Not Available
4
STRAP SPACER TOP
5211344
$13,64 Unit Price incl. VAT
5
BOLT
7512582
9999999
Not Available
6
BOLT
7512678
$36,74 Unit Price incl. VAT
7
NYLOCK NUT
7542439
$2,09 Unit Price incl. VAT
8
SCREW
7515415
9999999
Not Available
9
TOP RETAINER
5220225
$19,94 Unit Price incl. VAT
10
COMPRESSION SPRING
7041261067
Not Available
11
RETAINER SPRING
5210953
$11,54 Unit Price incl. VAT
12
IFS SHOCK
7041535
$325,49 Unit Price incl. VAT
13
SCR-3/8-24X2 HX/CP GR5-Y-SP
7517583
$7,34 Unit Price incl. VAT
14
WASHER
7555832
$4,19 Unit Price incl. VAT
15
STEERING ARM CLD SLV
5220326385
Not Available
16
STOP-STEERING RH CLD SLV
5241570385
Not Available
16
STOP-STEERING LH CLD SLV
5241569385
Not Available
17
RIVET-3/16-.214-.420 (50)
7661130
$2,09 Unit Price incl. VAT
18
RUBBER PIVOT
5410872
9999999
Not Available
19
BOLT
7512557
9999999
Not Available
20
WASHER
7555721
$2,09 Unit Price incl. VAT
21
BUSHING TUBE
5010310
9999999
Not Available
22
FLANGE BUSHING
3573909
$4,19 Unit Price incl. VAT
23
ASM-TRAILING ARMRHCLD SLV
1821455
9999999
Not Available
23
ASM-TRAILING ARM;LH;CLD SLV
1821454
9999999
Not Available
24
BUSHING
7556509
$3,14 Unit Price incl. VAT
25
FLANGED BUSHING
3574208
$6,29 Unit Price incl. VAT
26
SPINDLE SHAFT; MEDIUM GLOSS BLACK
6230102067
Not Available
27
FITTING LUBE.W/BALL CK.(10)
7080306
$5,76 Unit Price incl. VAT
28
BUSHING PIVOT
5010158
$27,29 Unit Price incl. VAT
29
FITTING LUBRICATION THREADED(1
7080433
$2,09 Unit Price incl. VAT
30
RADIUS ROD BUSHING
5010127
$12,59 Unit Price incl. VAT
31
BUSH; RADIUS ROD PIVOT; OUT
5431486
9999999
Not Available
32
WELD-RADIUS ROD;LOWER;CLD SLV
1822444385
Not Available
33
RADIUS ROD PIVOT BUSHING; 3/8
5411099
9999999
Not Available
34
ASM-RAD ROD;FIXED;UPPER;CLD SL
1822420385
Not Available
35
PIVOT BUSHING
5411095
$27,29 Unit Price incl. VAT
36
NUT FLEXLOCK
7542503
9999999
Not Available
37
BRKT RAD.ROD BTM.
5242578
9999999
Not Available
38
NUT FLEXOC;
7542703
9999999
Not Available
39
ROD END-1/2;PL;.745 WIDE;FM
7061071
$99,74 Unit Price incl. VAT
40
NUT-JAM(10)
7542711
$4,19 Unit Price incl. VAT

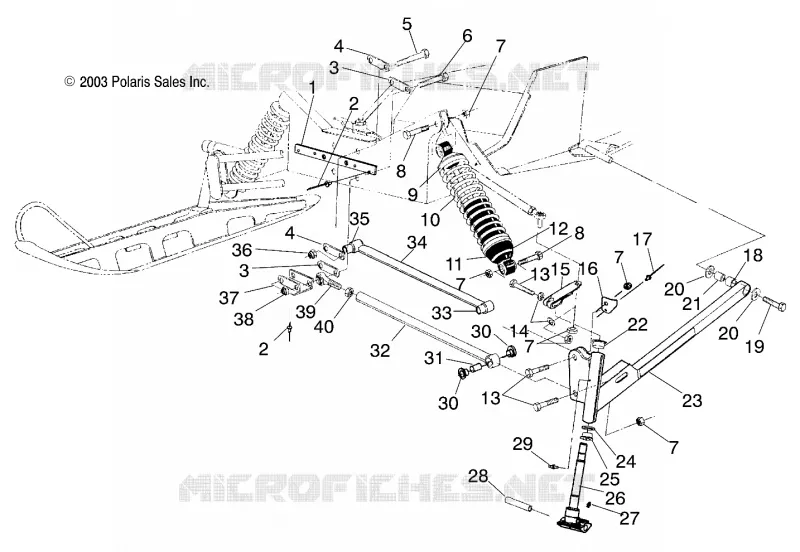

Find the detailed FRONT SUSPENSION POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.
