1
Engine displacement
750
2
Year
2004
3
Trim
MSX 150 - W045305CA
4
Parts Catalog
EXHAUST SYSTEM
5
Parts Diagram
Parts Catalog
WATER SIPHON
by
OIL SUMP
EXHAUST SYSTEM
1
2
2
3
4
5
6
7
8
9
10
11
11
11
11
12
13
13
14
15
16
17
18
19
20
21
22
23
24
25
1
2
3
4
5
6
7
8
9
10
11
12
1
SCR-1/4-20-1.25 HEX-SS
7518026
9999999
Not Available
2
WASHER; LOCK; S.S.
7555838
9999999
Not Available
3
WASHER; FLAT
7555857
9999999
Not Available
4
COVER-EXHAUST OUTLET;BLK
5631414329
Not Available
5
FITTING EXHAUST 2 5/8 ID
5132446
9999999
Not Available
6
BRKT-PUMP FACE;SILENCER MNT
5247008
9999999
Not Available
7
STRAP
5430621
9999999
Not Available
8
HOOK STRAP NARROW
5243775
9999999
Not Available
9
RIVET
7621485
$2,09 Unit Price incl. VAT
10
CLIP;STRAP
5240134
9999999
Not Available
11
3.75 SS
7080907
$20,99 Unit Price incl. VAT
12
HOSE-EXHAUST 63.5 ID X 127
5412523
9999999
Not Available
13
HOSE CLAMP
7080439
$17,84 Unit Price incl. VAT
14
SCREW SS.(10)
7517538
9999999
Not Available
15
WASHER LOCK SS. (10)
7556055
9999999
Not Available
16
FITTING INJECTOR
5020747
9999999
Not Available
17
Pipe Exhaust [Incl. 16 19]
1202743329
Not Available
18
GASKET-EXHAUST AW
5812528
9999999
Not Available
19
FITTING; PIPE
7052071
9999999
Not Available
20
SILENCER EXHAUST;BLK
1261341067
Not Available
21
HOSE-EXHAUST SILENCER/RES
5412525
9999999
Not Available
22
PAD-RESONATOR CHARCOAL
5812558318
Not Available
23
RESONATOR EXHAUST 2CYL #2
5433811
9999999
Not Available
24
HOSE-EXHAUST RES/OUTLET
5412524
9999999
Not Available
25
SCR-1/4-20X1.00 HX/CP-SS
7518259
9999999
Not Available

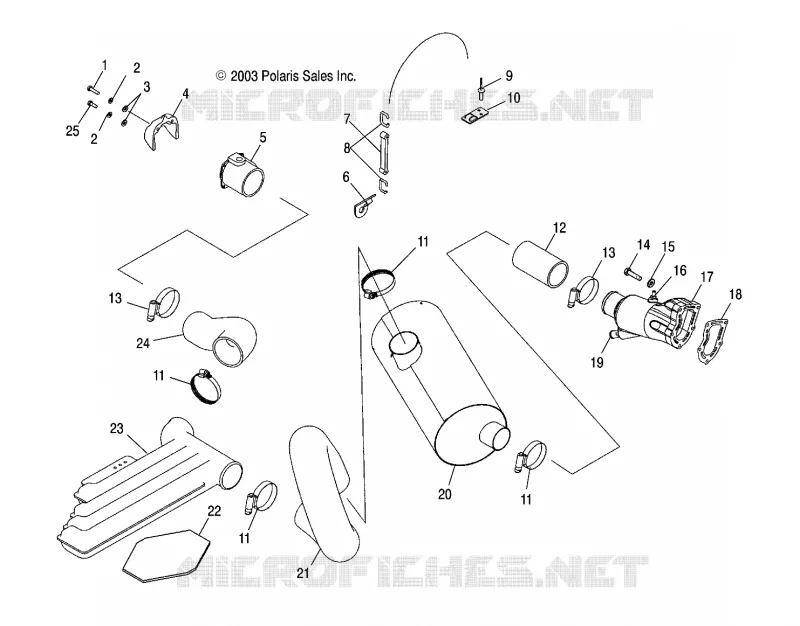

Find the detailed EXHAUST SYSTEM POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
